RYCO RY16-16 - AIR;HYDRAULIC PUMP SPECIFICATIONS

13MINI CRIMPER SERIES OPERATION MANUAL
SPECIFICATIONS
AIR/HYDRAULIC PUMP

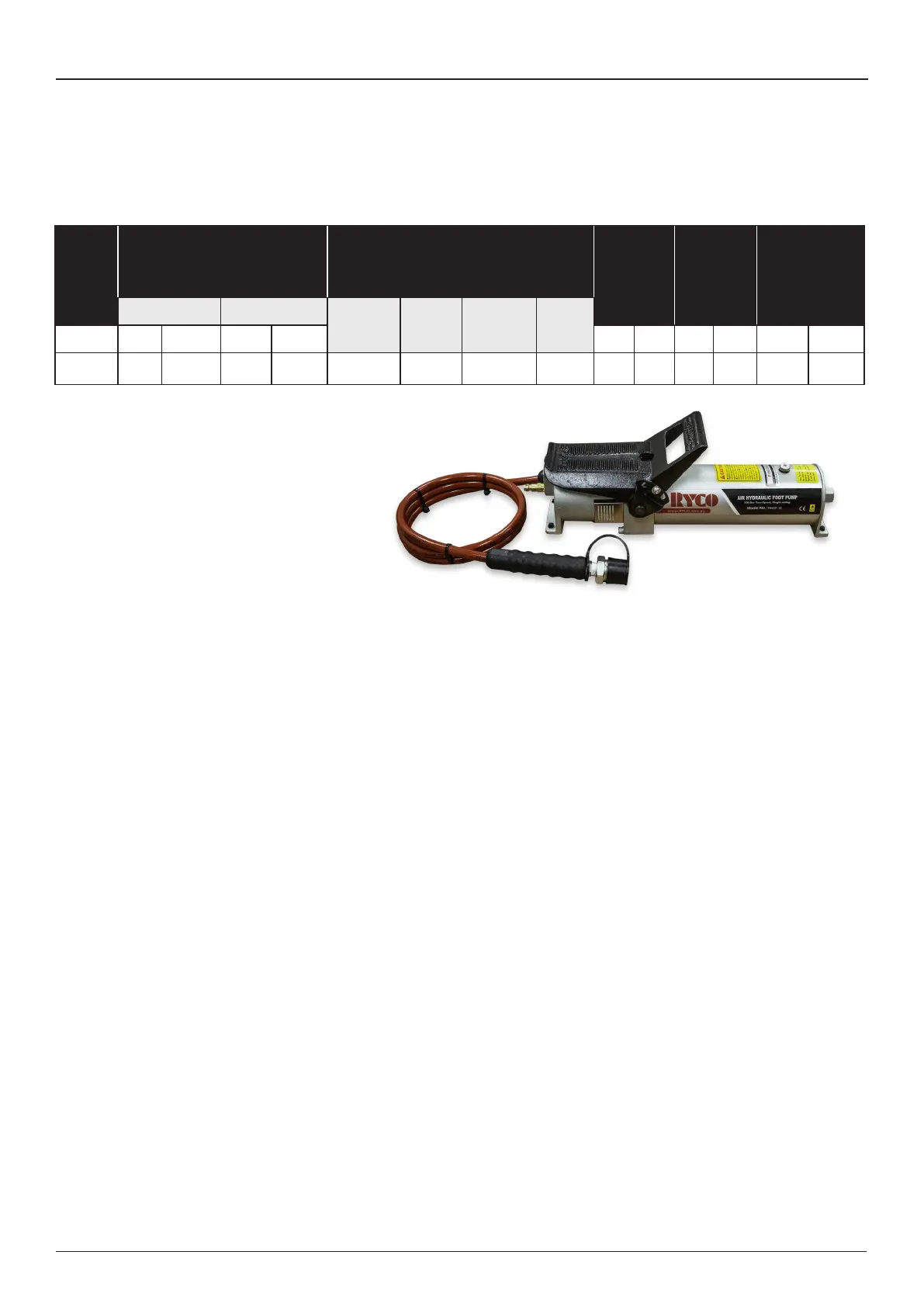

The RY16-AP Air/Hydraulic pumps are designed
for operation of RY16 Crimpers up to a max.
permissible working pressure of 700 bar (10,000
psi). The air operated hydraulic pump is a pressure
intensier which converts air pressure from 5 to
12 bar (75-170 psi) to a maximum proportional
hydraulic pressure of 700 bar (10,000 psi).
Stationary pneumatic system, compressors or air
bottles can be used for powering the pump.
Attention: Make absolutely sure that the air input pressure for the pump does not exceed 12 bar (170 psi).
If necessary, use a pressure regulator.
For producing the maximum oil output pressure an air input pressure of 8.5 bar (120 psi) is required. The oil pressure is limited in
any case to 700 bar (10,000 psi) by an adjustable pressure relief valve regardless of the air input pressure.
Attention: Due to the risk of personal injury or damage to pump and crimper do not adjust the pressure relief valve to more than
700 bar (10,000 psi). The pump is operated by a foot pedal on top of the oil reservior.
Operation
1. Make the pneumatic and hydraulic connection.
Push the foot pedal to position "Pump" - the crimper closes.
2. For an eventual interruption of the "advance" movement release the foot pedal. The air supply is interrupted, the pump
doesn't deliver oil anymore and the crimper dies stays in its current position.
3. For retracting the crimper dies push the foot pedal to position "Release". The oil return line is opened and the dies returns
by spring return.
Air/Hydraulic Pump Specification
Table 2: RY16-AP Air Pump Specication
Pump
Model
Max. Pressure Rating
Oil Flow at
7 bar/100 psi
Air Pressure
Usable Oil
Capacity
Weight
With
Oil
Air
Consumption
Air Pressure Rated Pressure
0
bar
0
psi
700
bar
10,000
psi
bar psi bar psi ml in
3
kg lb m
3
CFM
RY16-AP 7-10 100-147 700 10,000 700 mL/min 43 in
3
/min 100 mL/min 6 in
3
/min 750 46 6.1 16.5 15 9
