Installation
15
Note: If the diameter of the factory joint mount in your vehicle is 22mm, then you
do not require the use of any Mount Adaptor Inserts.
Method 3 (
Use the L-shape mount stem and universal mount package for
rooftop application)

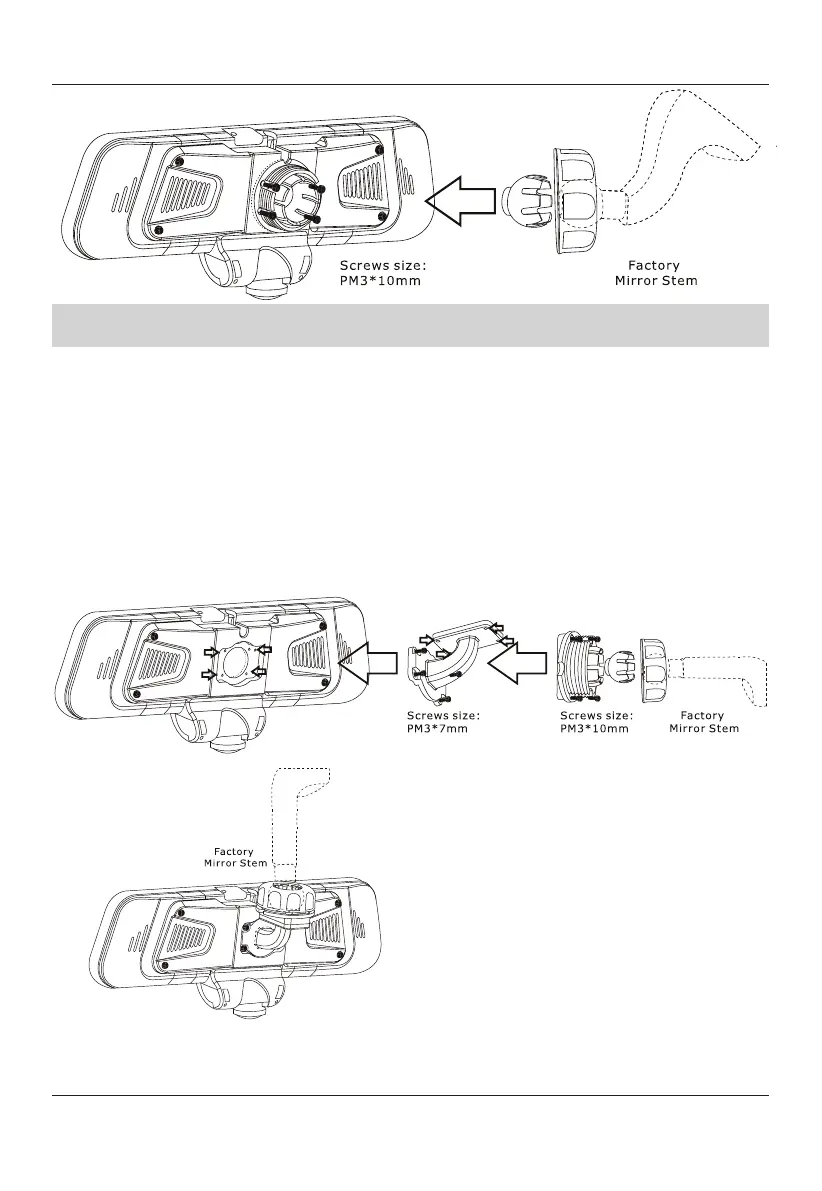

1) Insert TOMBO 360 Mirror Back Plate for windshield mount onto the back side of
the TOMBO 360 mirror, using provided screws.
2) Attach the L-Shape Mount Stem
to the backpack
of the mirror
using the provided
washers and screws.
3) Attach the Universal Mount Adaptor
to the
L-Shape Mount Stem
using the
provided
screws.
4) Select correct insert size for your vehicles application.
5) Mount TOMBO 360 onto factory stem and firmly secure the mount nut.
6) Adjust to the suitable angle to
the mirror and front 360° camera,
then proceed to Step 2.
Step 2
Connect each unit according to the wiring diagram (page 10).
1) Route the wires along the interior trim panel and go down the A-pillar, use the
