19 Washer ....................................................... 1
20 Eccentric Screw (10-24) ............................. 3
21 Quick Stop .................................................. 1
22 Eccentric Screw (8-32) ............................... 1
23 Washer ....................................................... 1
24 Hex Nut (Elastic Stop) ................................ 1
25 Slide (A) ...................................................... 4
26 Hex Nut (Elastic Stop) ................................ 4
27 Lock Washer............................................. 12
28 Slide (B) ...................................................... 4
29 Set Screw
(10-24 x 1/4 in. Hex Socket) ....................... 4
30 Miter Locking Clamp................................... 4
31 Roll Pin ....................................................... 4
32 Guide Plate ................................................. 2
33 Non-Eccentric Screw (10-24) ..................... 1
34 Screw (10-24 x 1/2 in. Pan Hd.) ................. 1
Key
No. Description Quan.
Key
No. Description Quan.
1 Miter Table Top .......................................... 1
2 Miter Fence................................................. 1
3 Pivot ............................................................ 1
4 Saw Gage ................................................... 2
5 Miter Indicator ............................................. 1
6 Miter Fence Holder ..................................... 1
7 Bolt (5/16-18 x 3-1/4 in. Hex Hd.) .............. 1
9 Washer ....................................................... 1
10 Adjusting Knob ........................................... 1
11 Screw (8-16 x 5/8 in. Pan Hd.) ................... 2
12 Spring Plate ................................................ 1
13 Miter Slide Lock .......................................... 1
14 Miter Base .................................................. 1
15 Guide Bar ................................................... 2
16 Holder Plate ................................................ 4
17 Screw (10-24 x 15/32 in. Pan Hd.) ............. 8
18 O-Ring ........................................................ 4
RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3100

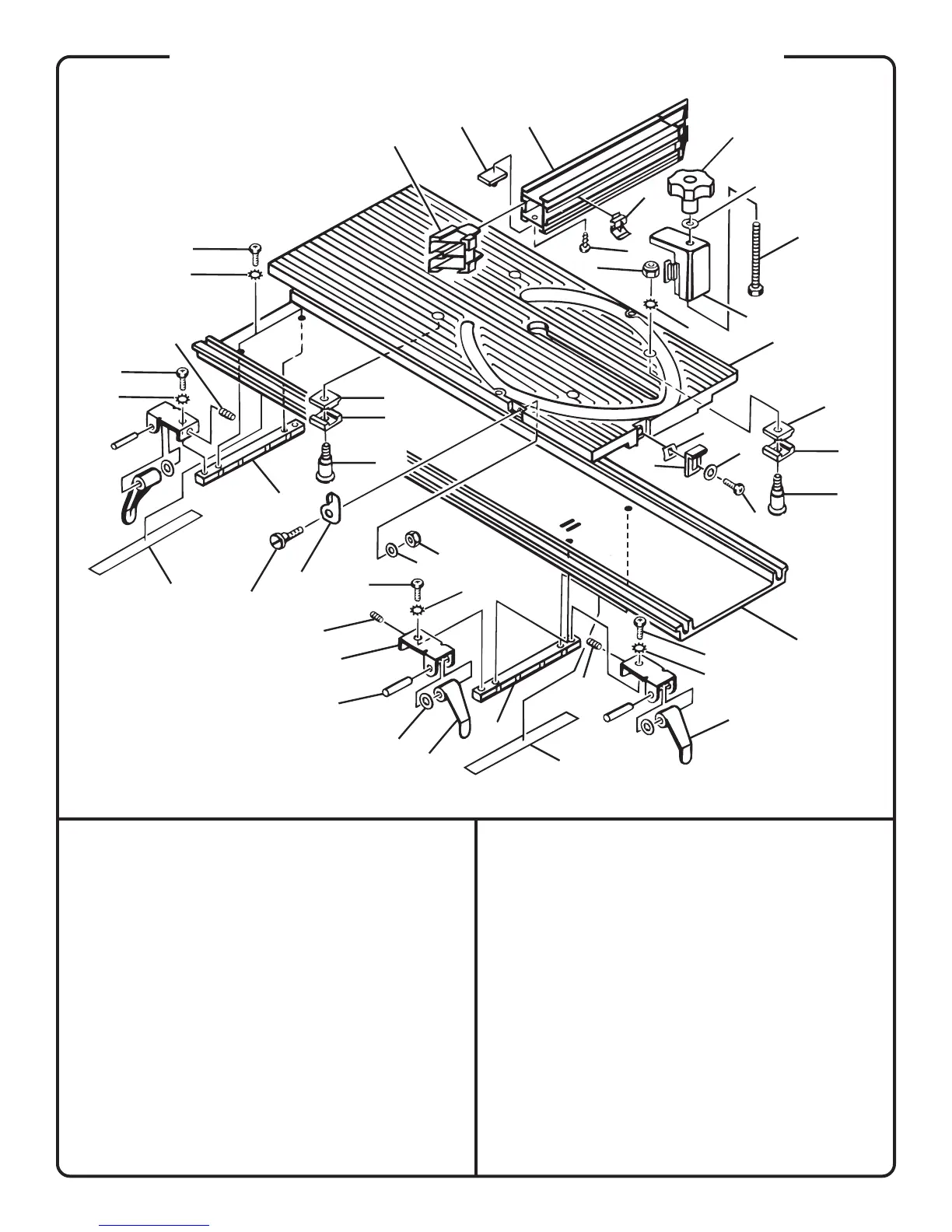

FIGURE 59: SLIDING MITER TABLE ASSEMBLY
30
27
17
14
33
28
25
34
19
12
13
1
32
29
15
30
18
31
16
27
29
23
24
17
21
22
32
15
20
28
2527
17
29
27
17
4
32
5
11
26
10
9
7
27
6
