RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3100

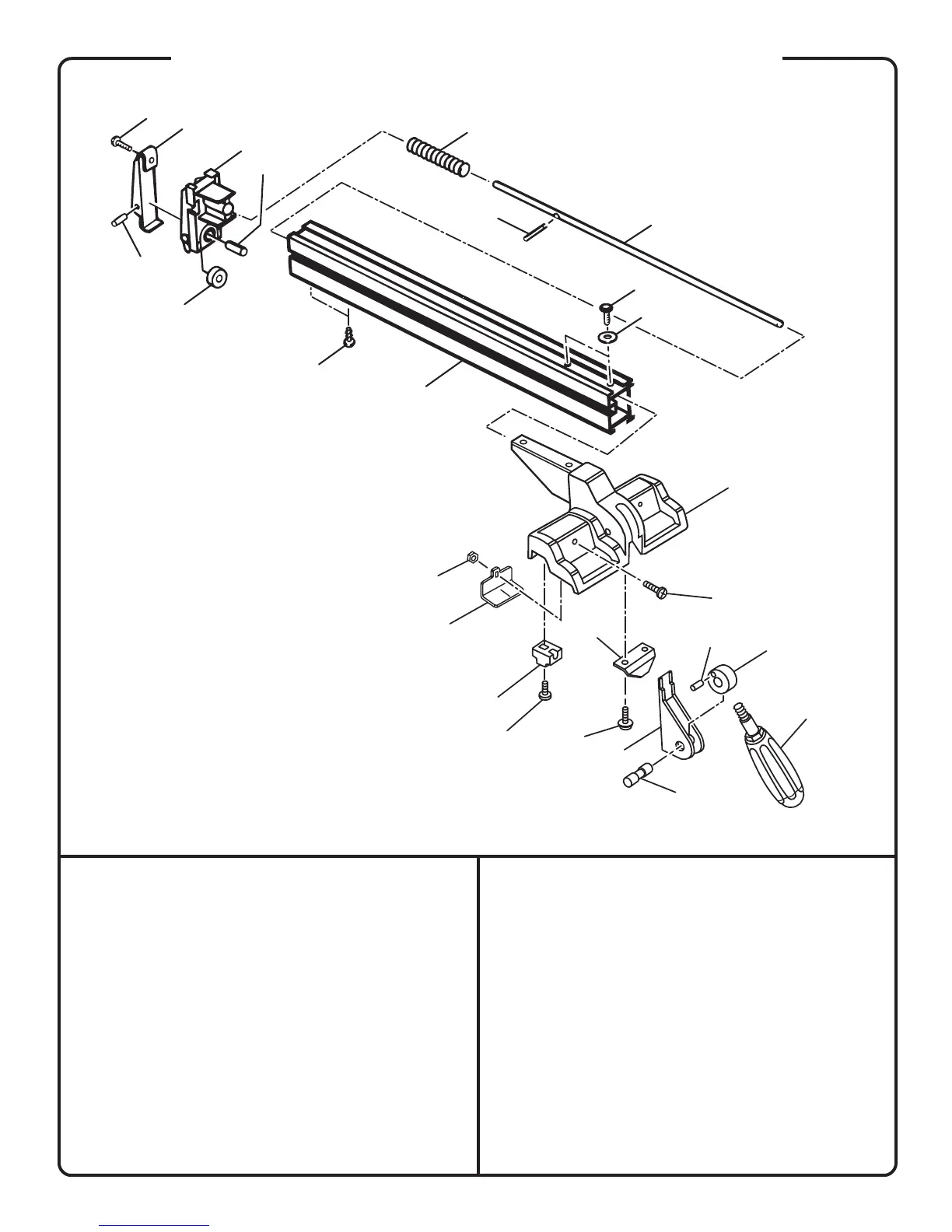

FIGURE 60: RIP FENCE ASSEMBLY
1 Rip Fence ................................................... 1
2 Screw (10-14 x 1/2 in. Pan Hd.) ................. 2
3 Fence Roller................................................1
4 Roll Pin ....................................................... 1
5 Screw (10-24 x 1 in. Pan Hd.) .................... 1
6 Clamper - B ................................................ 1
7 Roller Holder .............................................. 1
8 Dowel Pin (1/4 in. x 3/4 in.) ........................ 1
9 Compression Spring ................................... 1
10 Roll Pin ....................................................... 1
11 Rod ............................................................. 1
12 Screw (1/4-20 x 5/8 in. Button Hd.) ............ 2
13 Washer ....................................................... 2
14 Hex Nut (8-32) ............................................ 1
15 Scale Indicator ............................................ 1
16 Slide ............................................................ 2
17 Screw (8-32 x 1/2 in. Pan Hd.) ................... 2
18 Screw .......................................................... 1
19 Eccentric Roller .......................................... 1
20 Locking Handle ........................................... 1
21 Rubber Plug................................................ 1
22 Clamper - A ................................................ 1
23 Pin .............................................................. 1
24 Screw and Washer ..................................... 2
25 Plate ........................................................... 1
26 Front Block ................................................. 1
