RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3100

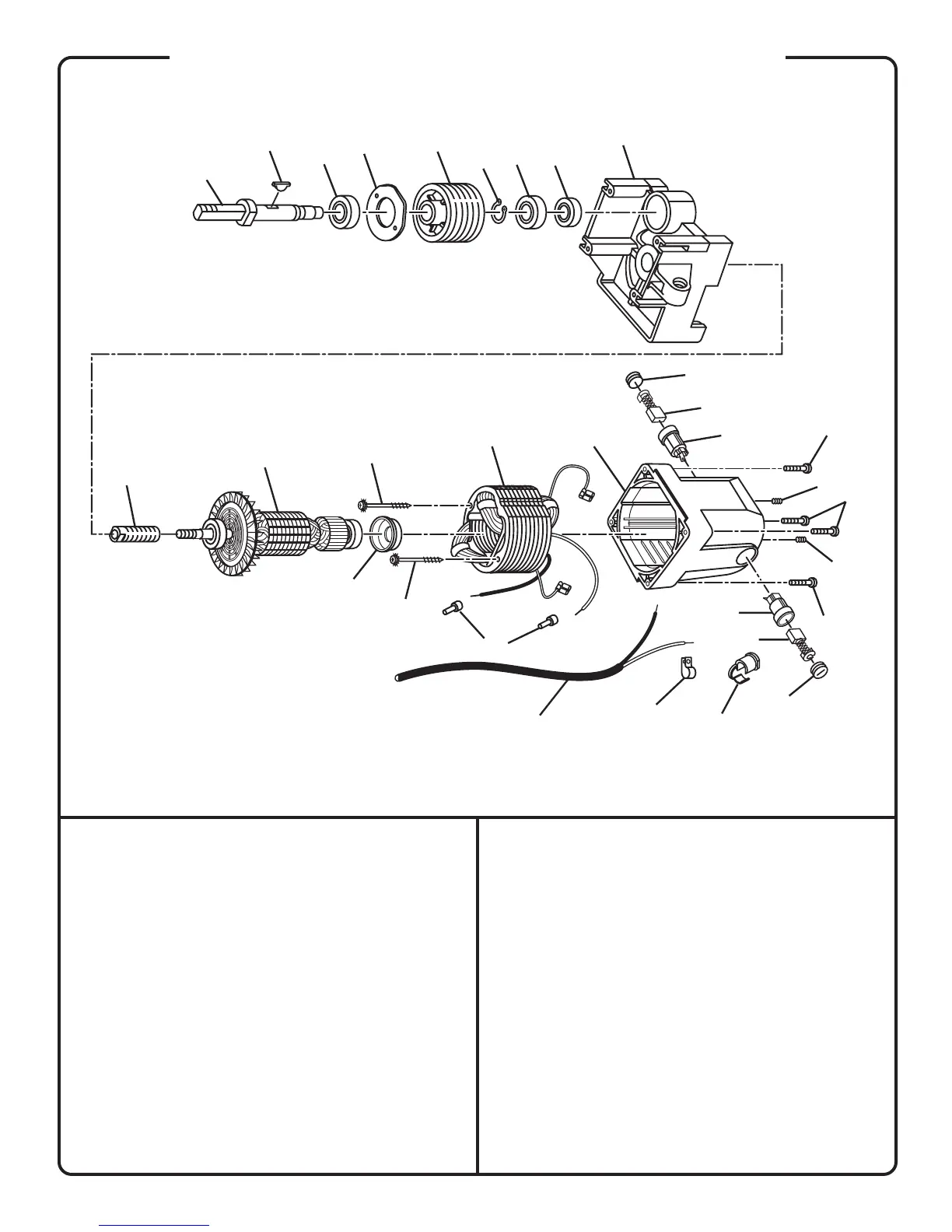

FIGURE 61: MOTOR ASSEMBLY
Key
No. Description Quan.
1 Arbor ........................................................... 1
2 Woodruff Key (3/16 in.) .............................. 1
3 Ball Bearing (6003)..................................... 1
4 Bearing Plate .............................................. 1
5 Arbor Pulley ................................................ 1
6 Retaining Ring ............................................ 1
7 Ball Bearing (6002)..................................... 1
8 Ball Bearing (6200ZZ) ................................ 1
9 Motor Bracket ............................................. 1
10 Motor Pulley ............................................... 1
11 Armature Assembly .................................... 1
12 Bearing Bushing ......................................... 1
Key
No. Description Quan.
13 Screw and Washer (Field Pan Hd.) ............ 2
14 Field Assembly ......................................... 1
15 Motor Housing .......................................... 1
16 Brush Cover .............................................. 2
17 Brush Assembly ........................................ 2
18 Brush Holder Assembly ............................ 2
19 Screw and Washer (Pan Hd.) ................... 4
20 Set Screw (Hex) ........................................ 2
21 Strain Relief Bushing ................................ 1
22 Cable Clamp ............................................. 1
23 Power Cord ............................................... 1
24 Connector ................................................. 2
