Ryobi BT3100K - Loose Parts List

Page 10
The following items are included with your table saw leg stand.
LOOSE PARTS LIST

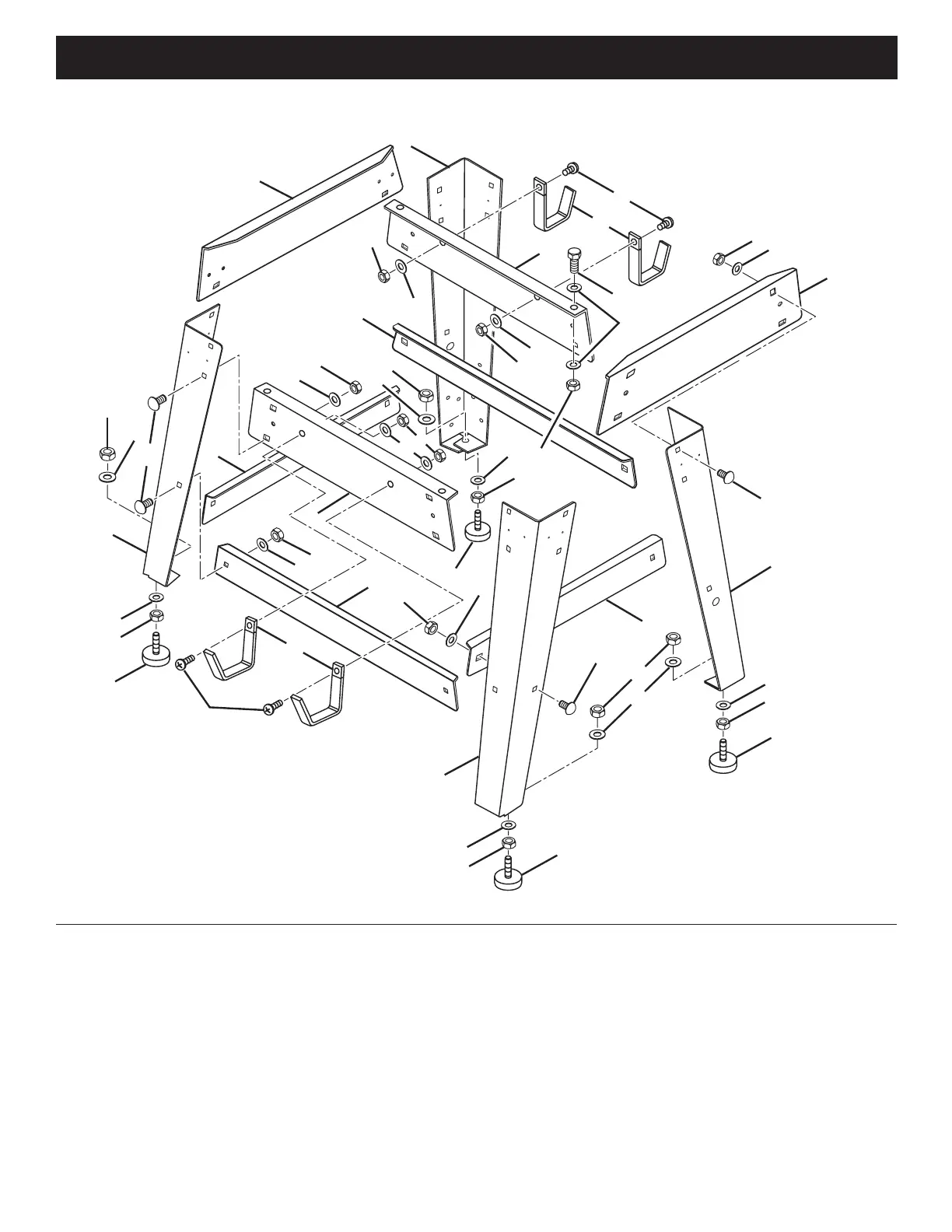

Fig. 4
B
C
D
E
E
D
K
K
J
L
K
F
D
E
I
M
D
J
E
D
H
A
H
E
D
C
D
E
M
C
B
A
I
G
G
H
D
E
E
D
F
C
E
D
F
E
D
F
G
A. Storage Bracket ....................................................
.4
B. Screw (
1/4-20 x 1/2 in. Pan Hd.)...........................4
C. Lower Brace
.......................................................... 4
D. Hex Nut (
5/16-18) ................................................32
E. Washer (
5/16 in.)..................................................32
F. Leveling Foot
........................................................ 4
G. Leg
........................................................................ 4
H. Carriage Bolt (
5/16-18 x 3/4 in.) ............................24
I. Upper Brace ..................................
..........................2
J. Hex Nut (
1/4-20) ......................................................8
K. Washer (
1/4 in.) .......
...................
............................12
L. Bolt (
1/
4-20 x 3/4 in. Hex Hd.) .................................4
M. Upper Side Brace ............................
........................2
