GETTING TO KNOW YOUR SAW
Your saw is designed to perform as a versatile, accurate,
precision cutting tool that is easy to operate.
It is equipped with the following features for convenience,
ease of use, and high-quality performance:
•a combination saw blade
•a bevel indicator to set the exact angle of the blade, with
locking lever
• an adjustable and reversible sliding mitre table
• an adjustable mitre fence with mitre indicator
• an adjustable accessory table
• an adjustable rip fence with scale indicator
• an adjustable riving knife (splitter) and blade guard with
anti-kickback pawls
• front and rear guide rails with an easy-to-read scale on
front rail
•a dust exhaust that can be adapted to a standard shop
vacuum
• blade adjusting handle to set depth of cut
• switch with lockable cover plate to help prevent
authorised use
These features provide ease of cutting with all types of wood.
WARNING:
Before attempting to use your table saw, familiarise
yourself with all operating features and safety
requirements.
FEATURES

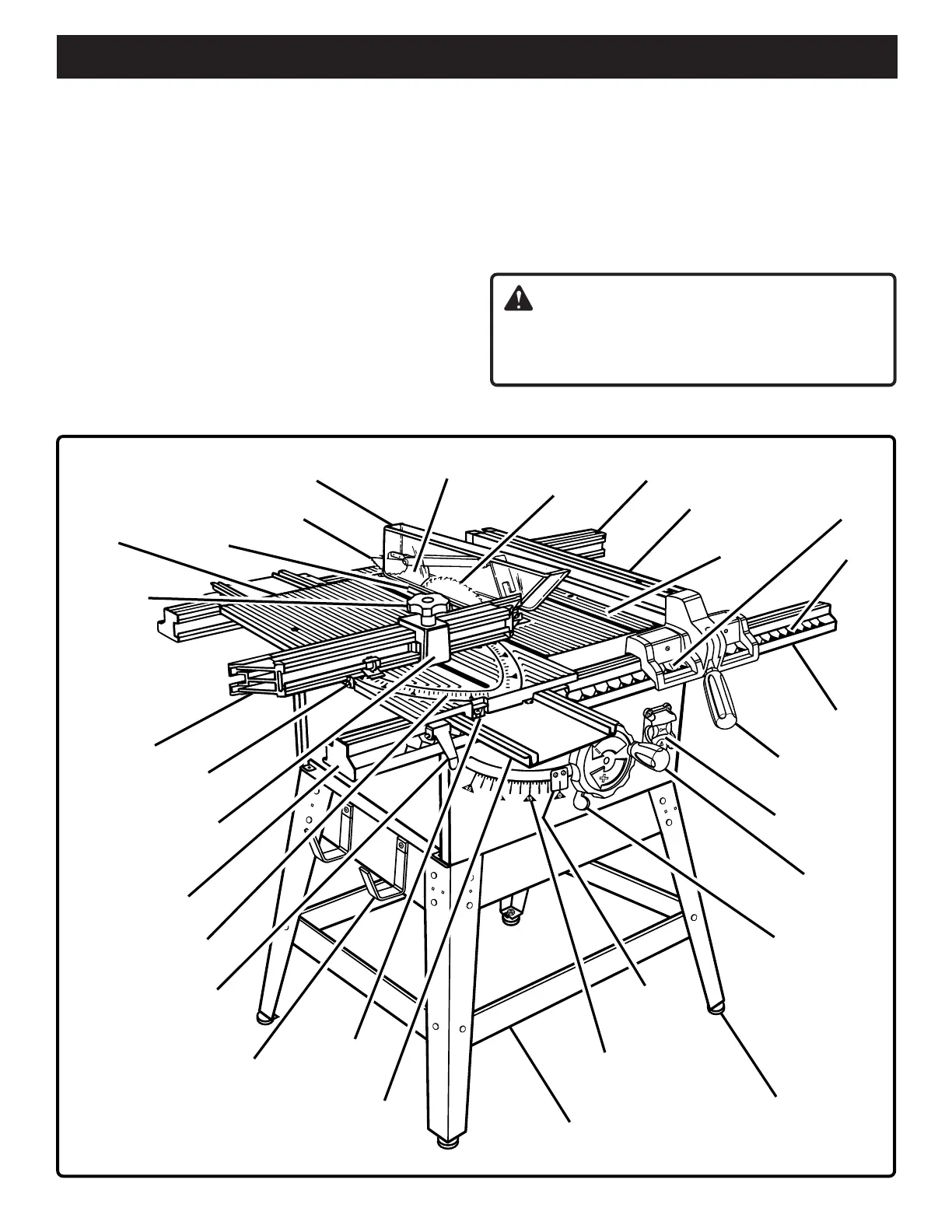

Fig. 5
ADJUSTING
CLAMP
QUICK-STOP
END PLUG (4)
MITRE
LOCKING CLAMPS
RIP FENCE
LOCKING HANDLE
FRONT RAIL
SCALE
SLIDING
MITRE TABLE
THROAT
PLATE
ANTI-KICKBACK
PAWLS
BLADE GUARD
ASSEMBLY
RIVING KNIFE
SAW BLADE
REAR RAIL
RIP FENCE
ACCESSORY
TABLE
BLADE
ADJUSTING HANDLE
BEVEL
LOCKING LEVER
MITRE FENCE
MITRE
FENCE HOLDER
SWITCH WITH
LOCKABLE COVER
BEVEL
INDICATOR
BEVEL SCALE
MITRE
SLIDE LOCK
MITRE
TABLE BASE
LEG STAND
LEVELING FOOT
STORAGE
BRACKETS
SCALE
INDICATOR
MITRE SCALE
