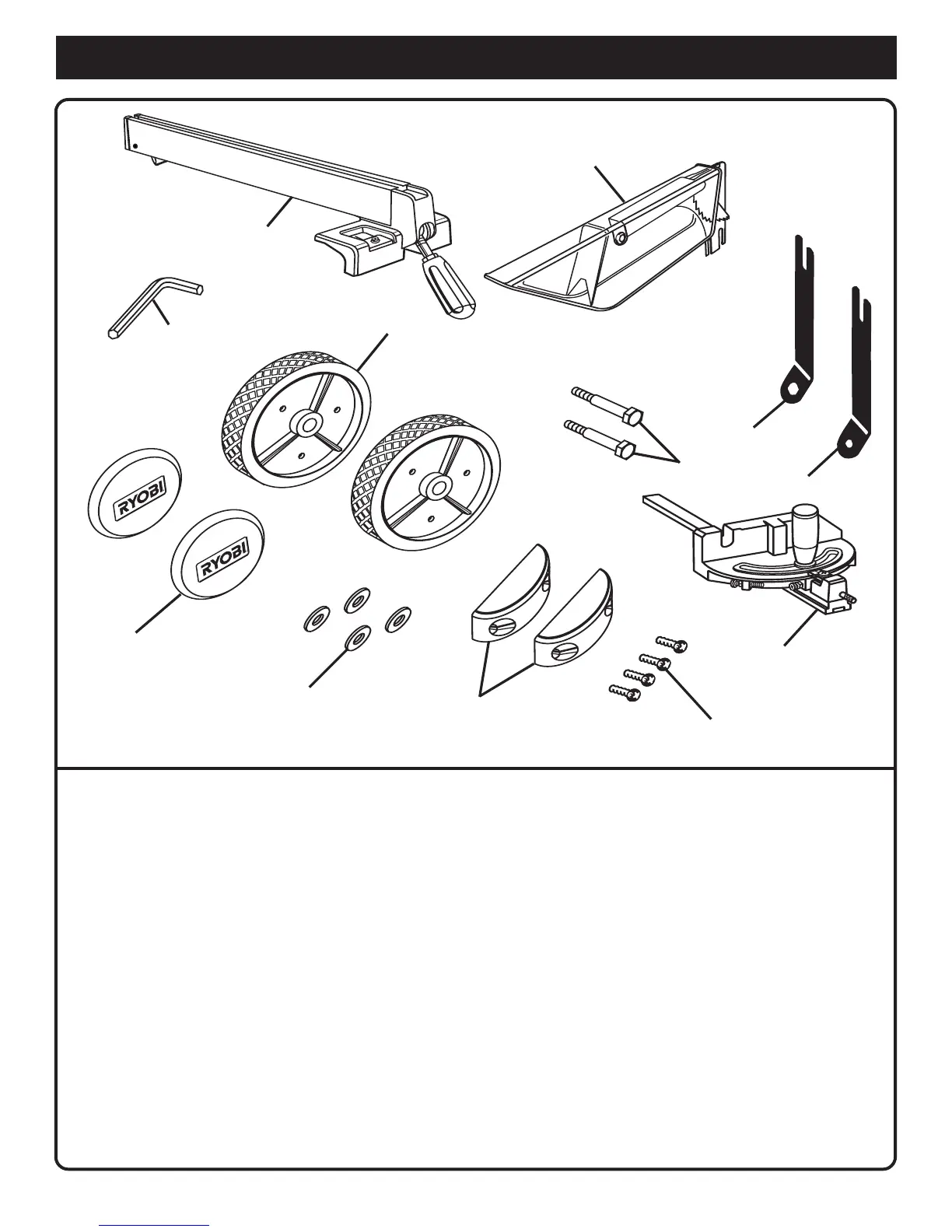

Fig. 3
Key
No. Description Qty.
1 Rip Fence ......................................................................................................................................................... 1
2 Miter Gauge ..................................................................................................................................................... 1
3 Blade Guard Assembly .................................................................................................................................... 1
4 Wheels ............................................................................................................................................................. 2
5 Hub Caps ......................................................................................................................................................... 2
6 Washers ........................................................................................................................................................... 4
7 Shoulder Bolts .................................................................................................................................................. 2
8 Large Wrench................................................................................................................................................... 1
9 Small Wrench ................................................................................................................................................... 1
10 Bumper............................................................................................................................................................. 2
11 Screws ............................................................................................................................................................. 4
12 Hex Key, 1/4 in. ................................................................................................................................................ 1
13 Operator's Manual (Not Shown)
14 Warranty Registration Card (Not Shown)
LOOSE PARTS LIST
1
3
2
8
9
7
6
4
10
11
12
