Ryobi ts1341 - Miter Saw Features Overview; Key Product Specifications; Identified Saw Components; Adjustment Controls and Stops

10
FEATURES
PRODUCT SPECIFICATIONS
Blade Arbor .............................................................. 5/8 in.
Blade Diameter.......................................................... 10 in.
No Load Speed ................................................. 5,000/min.
Input ................................120 V, 60 Hz, AC only, 15 Amps
Net Weight............................................................... 31 lbs.
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes: ................. 2 x 6, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes: ...........................2 x 4
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes: ...........................2 x 6
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes: ...........................2 x 4

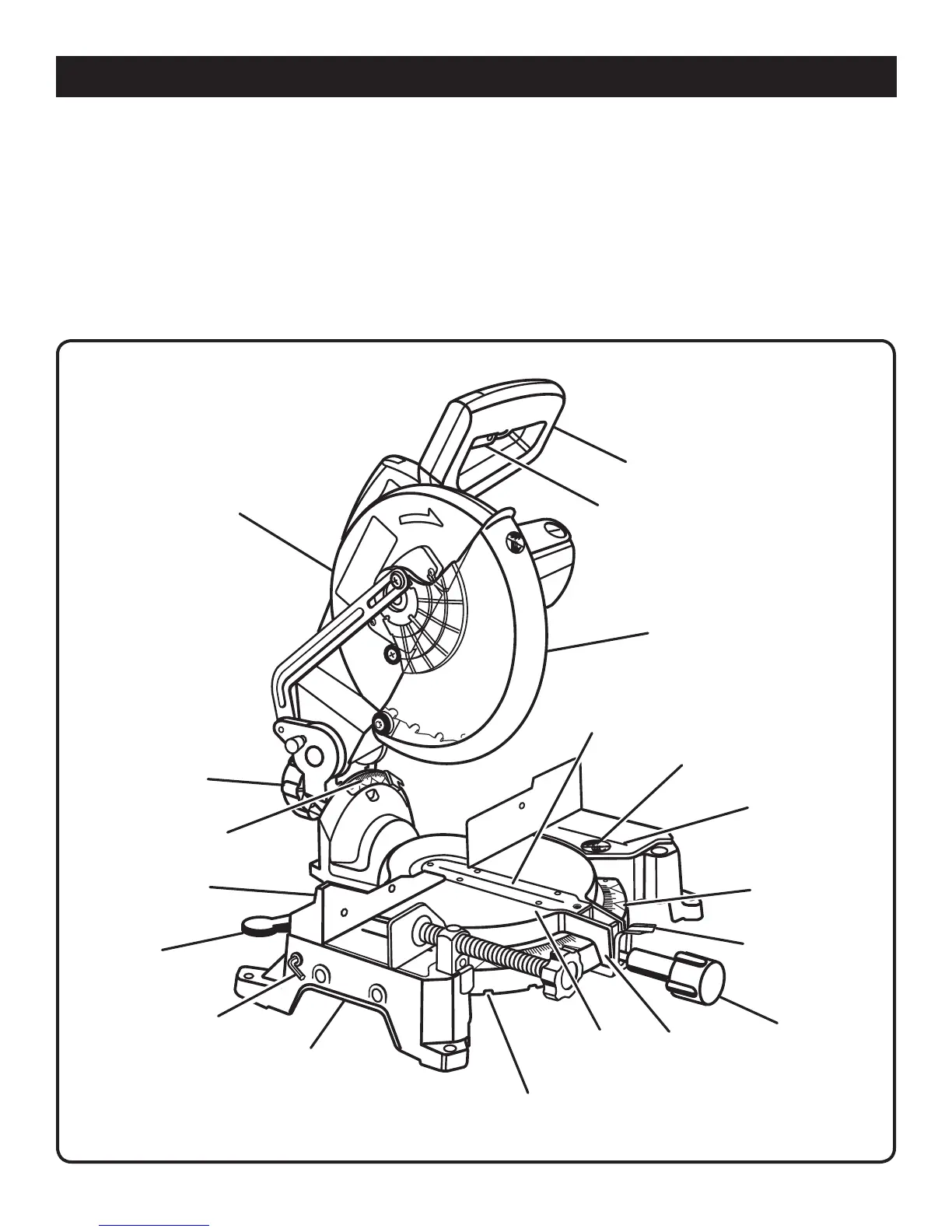

Fig. 1
LOWER
BLADE GUARD
SAW ARM
MITER
LOCK HANDLE
SWITCH
TRIGGER
“NO HANDS ZONE”
LABEL
“NO HANDS ZONE”
BOUNDARY LINE
MITER SCALE
UPPER
BLADE GUARD
MITER
FENCE
BEVEL SCALE
BEVEL
LOCK KNOB
POSITIVE
STOP(S)
THROAT PLATE
CONTROL
ARM
MITER
LOCK PLATE
BASE
MITER
TABLE
SUPPORT
FOOT
BLADE
WRENCH
