Ryobi TS1552LA - Miter Saw Features Overview; Miter Saw Product Specifications; Key Miter Saw Components

10
FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Blade Arbor .............................................................. 5/8 in.
Blade Inner Washer ..................................................... 1 in.
Blade Diameter .......................................................... 12 in.
No Load Speed .................................... 3,600 r/min. (RPM)
Input ................................ 120 V, AC only, 60 Hz, 15 Amps
Net Weight .......................................................... 45.37 lbs.
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes: .................... 2 x 8, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes: ..............................2 x 6
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes: ..............................2 x 8
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes: ..............................2 x 6

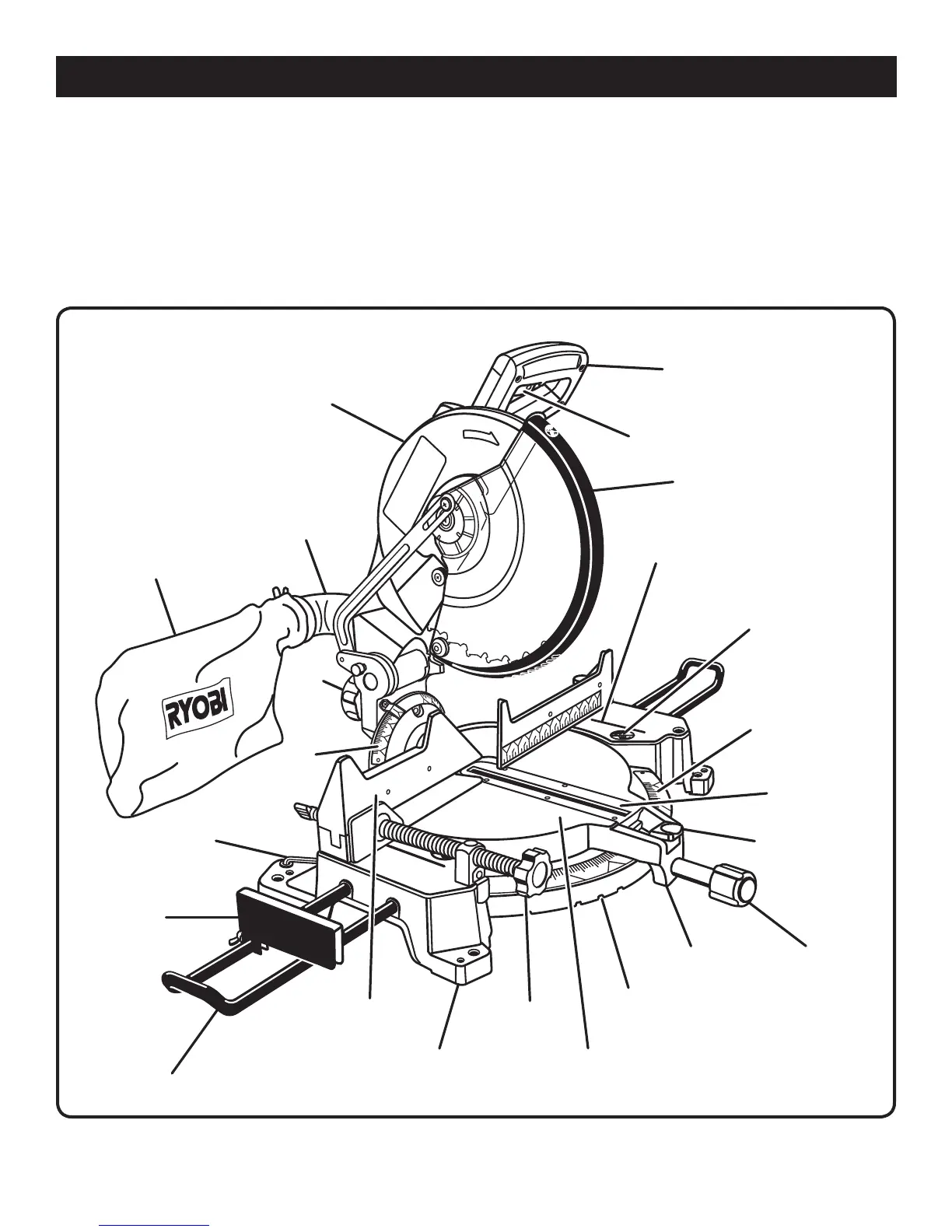

Lower bLade guard
dust
guIde
upper
bLade
guard
“d” handLe
base
MIter
Lock handLe
beveL
scaLe
beveL
Lock
knob
posItIve
stop(s)
swItch trIgger
throat pLate
“no hands Zone”
LabeL
controL
arM
MIter
Lock pLate
“no hands Zone”
boundarY LIne
MIter
scaLe
bLade
wrench
storage
stop bLock
tabLe
eXtensIon
sLIdIng
MIter
Fence
MIter
tabLe
dust bag
work
cLaMp
