OPERATION
NESTING CROWN MOLDING AGAINST THE
MITER FENCE

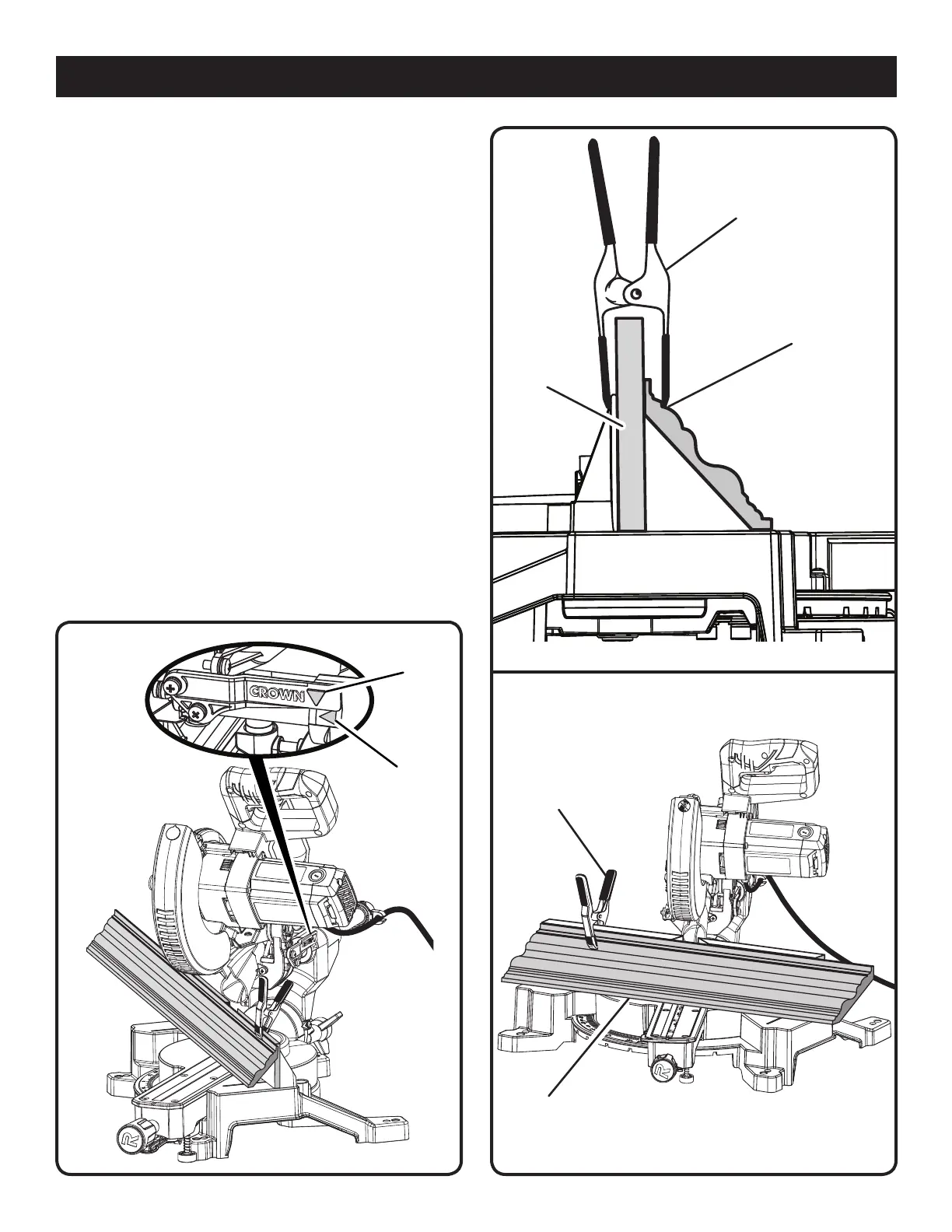

See Figure 35 - 37.
NOTE: This method of cut is for crown molding up to 3-3/8 in.
tall, when using an auxiliary fence (as described on Page 24).
Do not attempt to cut molding that is larger than 3-3/8 in. tall.
Assemble and attach auxiliary fence as shown in
figure 33.
Align the arrow on the crown indicator with the arrow
on the pivot assembly and tighten the slide lock knob
securely.
Set the bevel angle at 0° and the miter angle at 45° to
either the left or the right. (For making 90° corners.)
Nest and secure the crown molding against auxiliary fence
using a spring clamp and hold crown molding securely.
Before turning on the saw, perform a dry run of the cut-
ting operation to make sure that no problems will occur
when the cut is made.
Grasp the saw handle firmly. Squeeze the switch trigger.
Allow several seconds for the blade to reach maximum
speed.
Slowly lower the blade into and through the crown
molding.
Fig. 37
Fig. 36
SPRING
CLAMP
SPRING
CLAMP
BOTTOM EDGE
AGAINST FENCE
CROWN
MOLDING
AUXILIARY
FENCE
Fig. 35
CROWN
INDICATOR
PIVOT
ASSEMBLY
INDICATOR
