Vehicle care 203

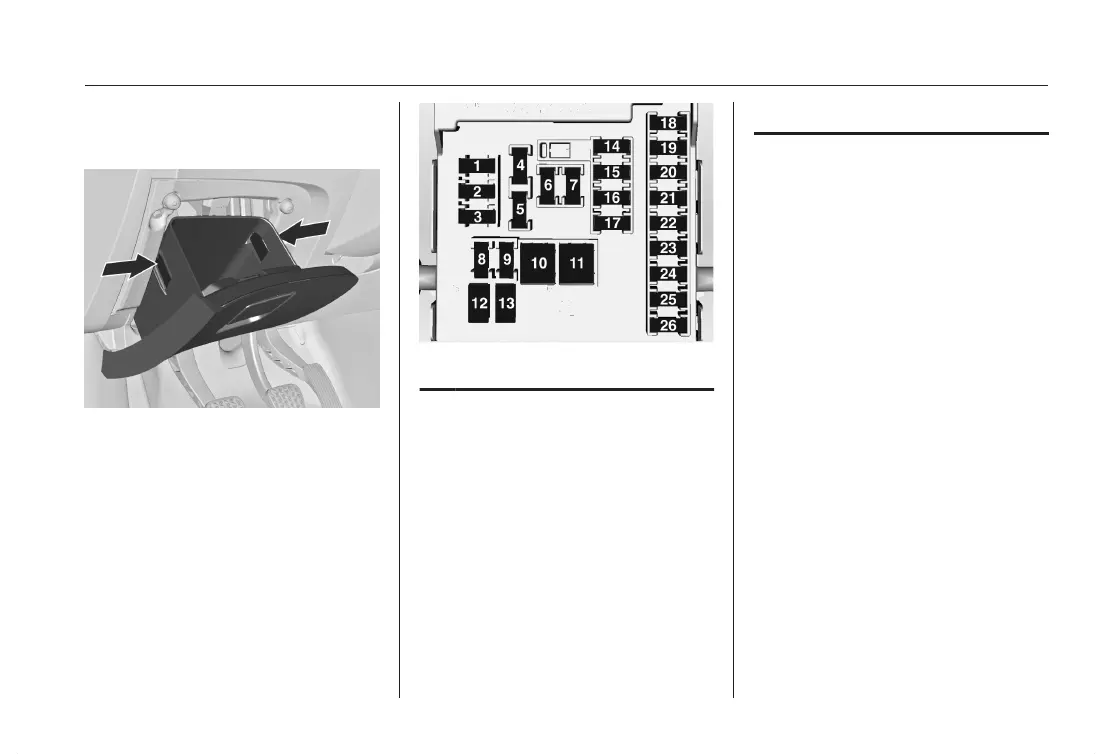

Instrument Panel Fuse
Block
The fuse box is behind the storage
compartment in the instrument panel.
Open compartment, compress the
locking tabs, fold compartment down
and remove.
No. Circuit
1 Infotainment system, Info
display
2 Body control unit
3 Body control unit
4 Infotainment system, Info
display
5 Infotainment system, Info
display
6 -
7 Power outlet
No. Circuit
8 Body control unit
9 Body control unit
10 Body control unit
11 Interior fan
12 -
13 -
14 Diagnostic connector
15 Airbag
16 Central locking system
17 Air conditioning system
18 Transportation fuse
19 Memory
20 -
21 Instrument
22 Ignition
23 Body control unit
24 Body control unit
