Sabre 15538 Hydro - REPAIR; POWER TRAIN LINKAGE SYSTEM REMOVAL;INSTALLATION-K51

REPAIR HYDROSTATIC POWER TRAIN
2/12/97 6 - 57

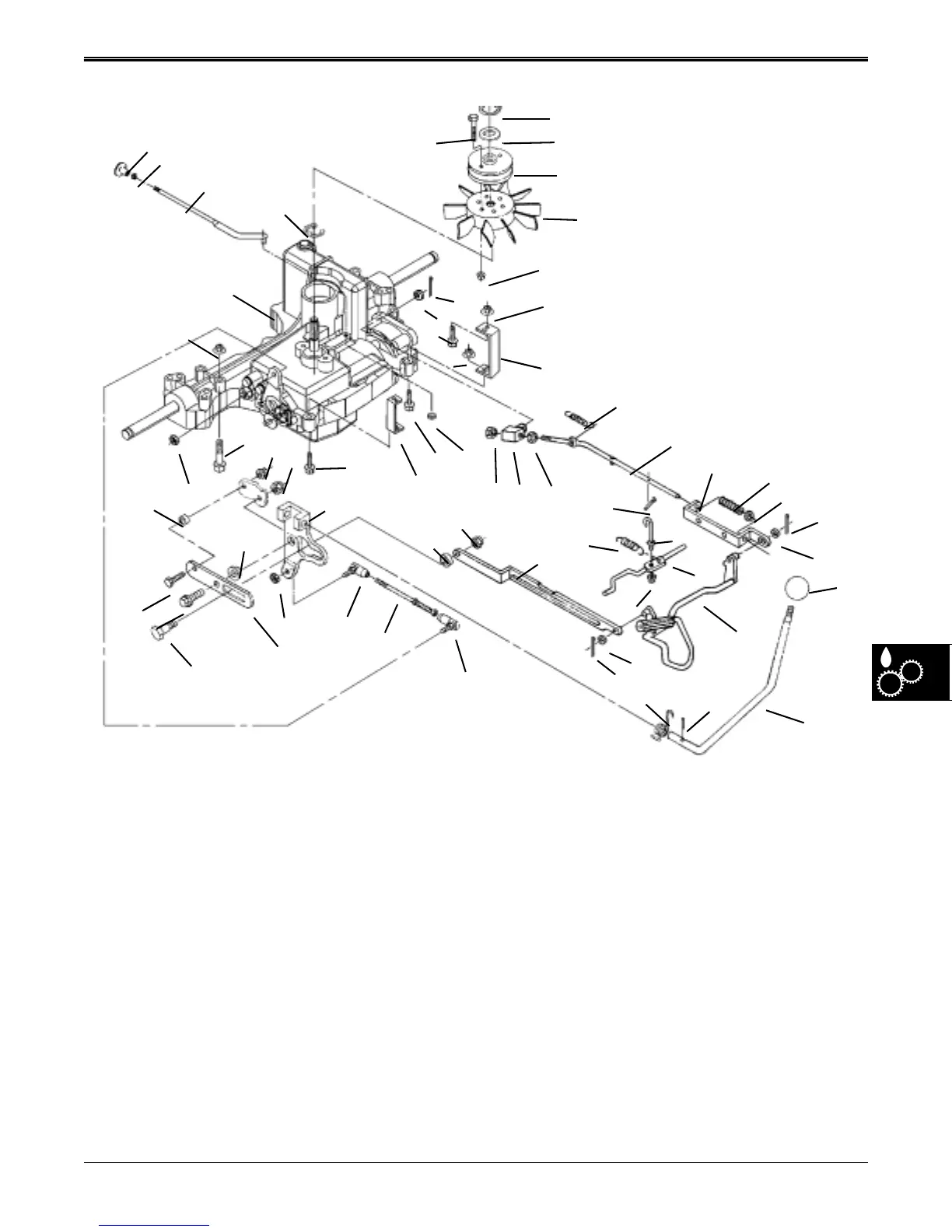

POWER TRAIN LINKAGE SYSTEM REMOVAL/INSTALLATION—K51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
11
15
16
13
17
11
18
19
20
21
22
23
24
25
26
27
27
27
26
26
28
29
30
31
27
26
32
35
34
33
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1 M127365 Knob 1
2 1/4” x 20 Hex Jam Nut 1
3 M127363 Rod 1
4 F2863R E- Ring 1
5 19M7874 Bolt, M6 x 30 2
6 M43940 Snap Ring 1
7 M127620 Spacer 2
8 M127358 Sheave 1
9 M127359 Fan 1
10 14M7397 Flange Lock Nut 2
11 14M7298 Lock Nut 8
12 19M7865 Screw 2
13 19M7798 Screw 2
14 M127360 Strap 1
15 M127364 Push Nut 1
16 M127360 Strap 1
17 19M7803 Screw (R.H. Side) 2
19M7801 Screw (L.H. Side) 2
18 AM123230 Transmission Assembly 1
19 M68954 Lock Nut, 9.525 MM 1
20 M117048 Pivot 1
21 14H774 Nut, 3/8” 1
22 M120404 Spring 1
23 M115388 Rod 1
24 M120007 Strap, Comp. Spring 1
25 M78462 Compression Spring 1
26 24H1305 Washer, 13/32” x 13/16” 1
27 11H278 Cotter Pin 4
28 M125566 Knob 1
29 M125565 Gearshift Lever 1
30 34M7130 Spring Pin, 4 x 20 MM 1
31 M118187 Torsion Spring, R.H. 1
32 AM123439 Shaft 1
33 M117846 Park Brake Lever 1
34 M119108 Rod, Parking Brake 1
35 14M7303 Flange Nut, M6 1
36 M115744 Extension Spring 1
37 M118512 Strap 1
38 AT12383 Ball Joint 1
39 M83389 Lock Nut, 7.952 MM 2
40 M127357 Stud, Adjusting 1
41 AM38782 Ball Joint 1
42 T11234 Lock Nut 2
43 M119205 Roller 1
44 M118696 Bracket 1
45 M93897 Bushing 1
46 M120142 Support 1
47 M118308 Bolt, 9.525 x 35.60 MM 1
48 19M7785 Scrw, M10 x 25 1
49 19M7867 Screw, M8 x 25 1
50 M111180 Spacer 1
51 14M7296 Flange Nut, M10 1
52 14M7298 Flange Nut, M8 1
