Sabre 15538 Hydro - COMPONENT LOCATION; TRACTION DRIVE SYSTEM COMPONENT LOCATION

HYDROSTATIC POWER TRAIN COMPONENT LOCATION
6 - 10 2/12/97

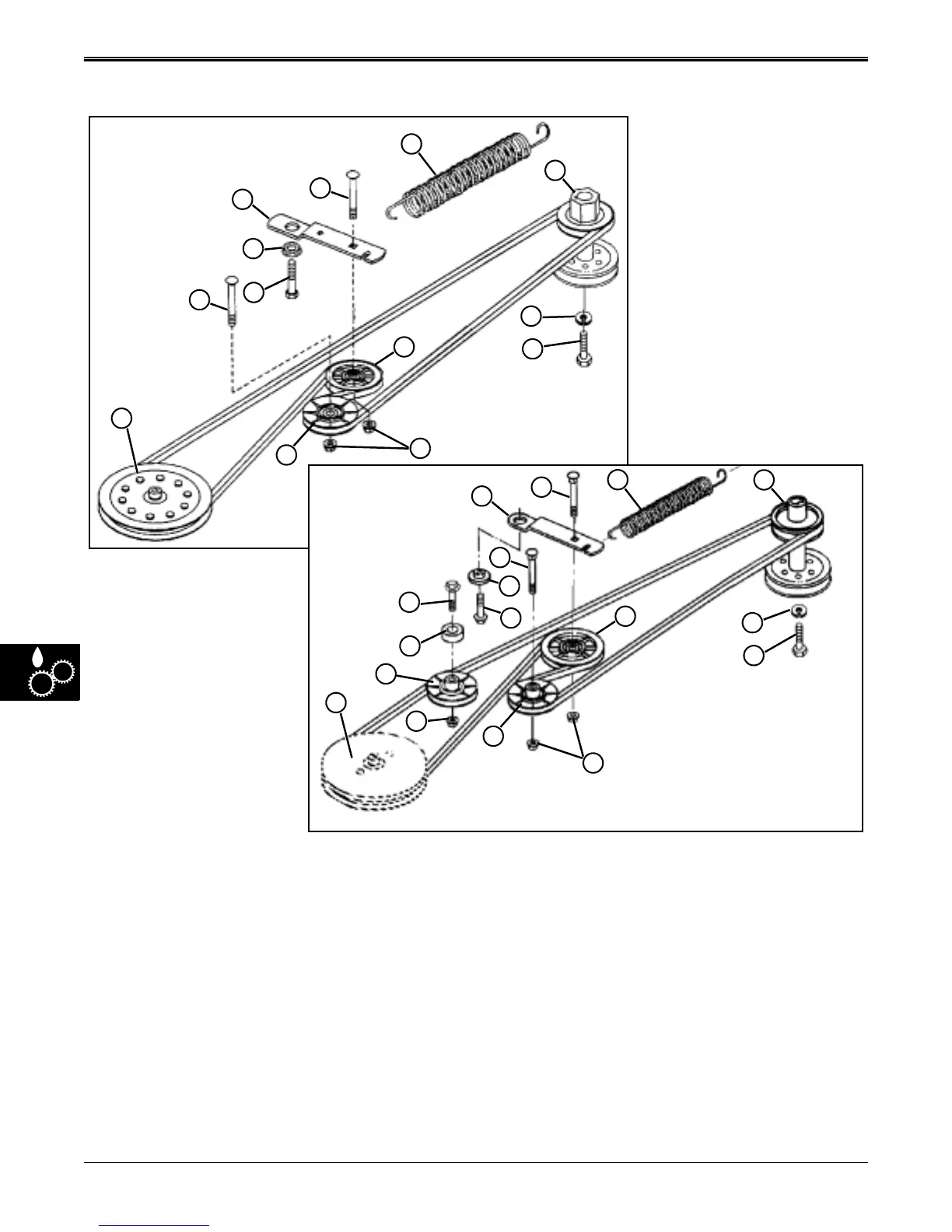

TRACTION DRIVE SYSTEM COMPONENT LOCATION
1. Transaxle Drive Sheave (K55)
2. Transaxle Drive Sheave (K51)
3. Arm (K55)
4. Arm (K51)
5. Bolt M8 x 45
6. Spring
7. Bushing
8. Cap Screw
9. Bolt (K51)
10. Spacer (K51)
11. Flange Nut M8
12. Lock Washer
13. Cap Screw
14. Sheave, Engine
15. Bolt M8 x 45
16. Idler
17. Idler
18. Idler (K51)
K–55 TRANSAXLE
K–51 TRANSAXLE
18
2
5
4
16
6
7
8
9
10
11
18
17
11
13
12
14
6
15
3
1
5
7
8
11
12
13
14
16
17
