GEAR POWER TRAIN TESTS AND ADJUSTMENTS
5 - 16 2/12/97

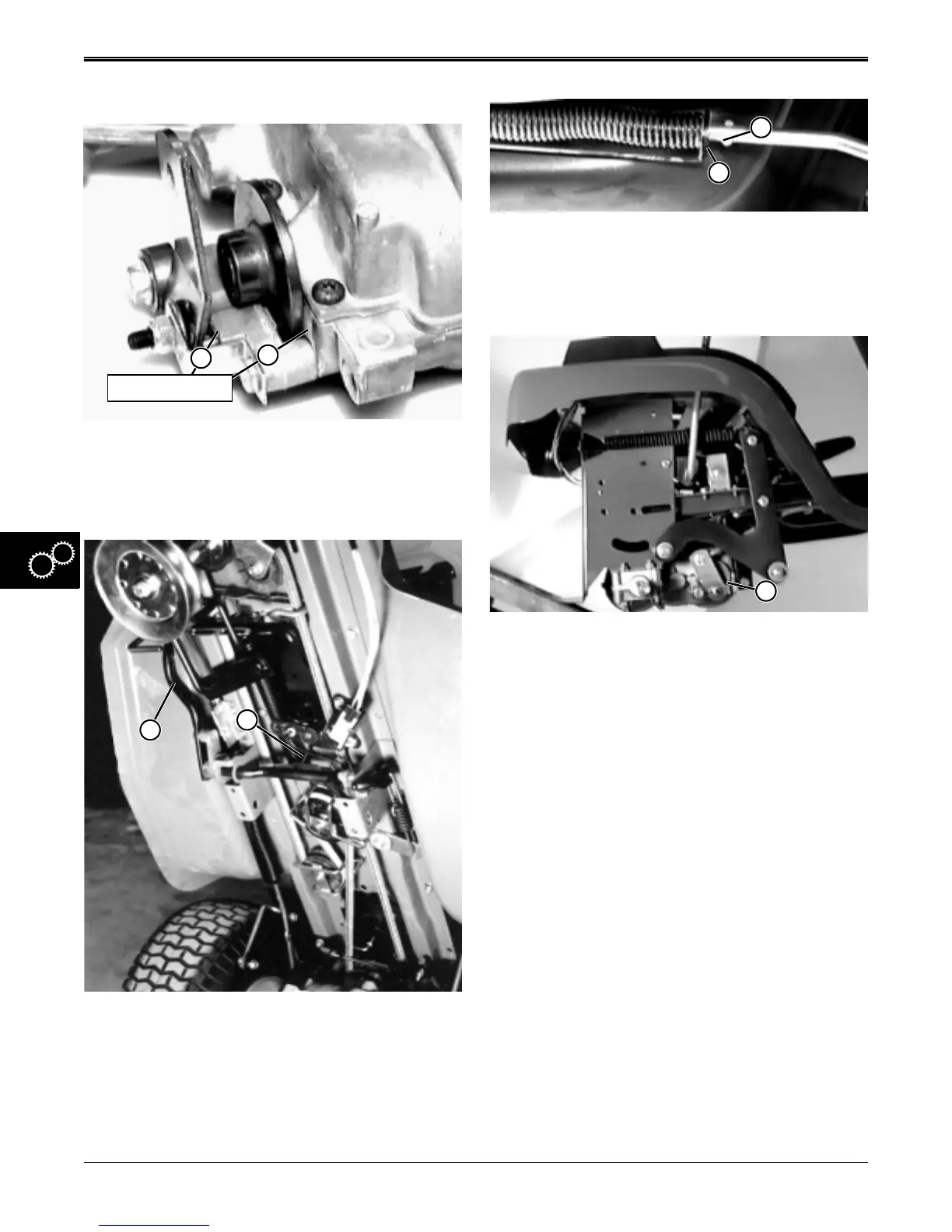

BRAKE SPRING ADJUSTMENT—
1. First check for brake disc contacting the case (1)
and/or brake lever contacting its mounting bracket
(2), top or bottom. If so, replace friction pucks and
disc before making any adjustments.
2. Remove the mower deck.
3. Depress clutch/brake pedal (A) and lock park brake
lever (B) into PARK position from operator’s
station.
Contact Points
2
1
A
B
4. Measure distance between end of compression
spring bracket (C) and front edge of brake rod stop
tabs (D).
• If distance is less than 2 mm (0.08 in.)—
5. Tighten lock nut (E) until distance between end of
compression spring bracket (C) and front edge of
brake rod stop tabs (D) is 7.5—8 mm (0.30—0.32
in.)
6. Once above measurement is obtained, cycle clutch/
brake pedal.
7. Remeasure distance, it should be the same. This
brake setting should hold the tractor stationary on a
17° slope.
If distance is greater than 8 mm (0.32 in.)—
8. With park brake set, gradually loosen lock nut (E)
until distance of 7.5—8 mm (0.30—0.32 in.) is
obtained.
9. Cycle park brake and measure distance again (see
Step 7).
10. If tractor fails either brake test, inspect brake
assembly components, replace as necessary, and
repeat all adjustment procedures and drive tests.
CLUTCH ACTUATING SPRING ADJUSTMENT
IMPORTANT: Anytime the brake or clutch spring
need to be adjusted, both must be examined to
ensure desired results will be obtained.
C
D
E
