GEAR POWER TRAIN REPAIR
5 - 34 2/12/97

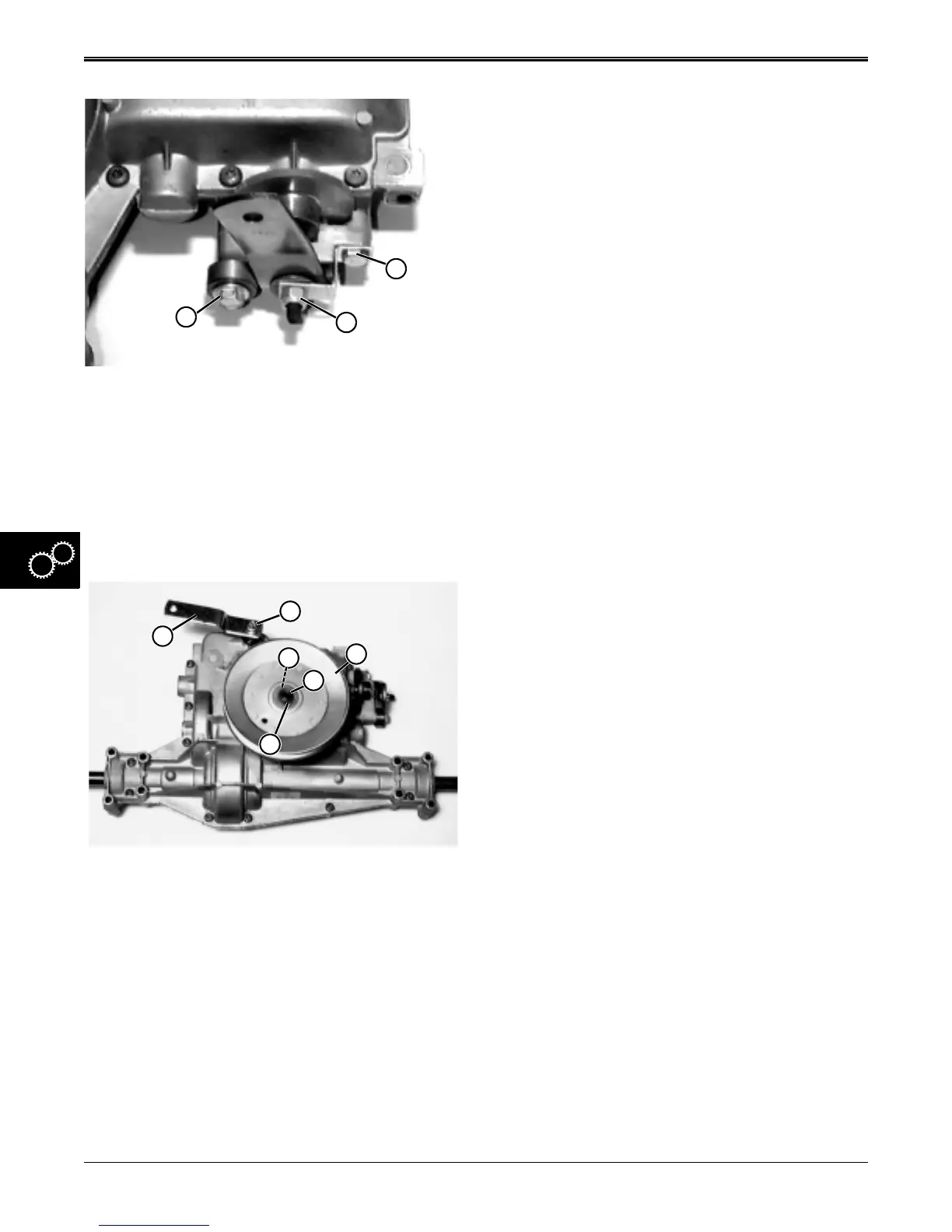

1. Install complete brake assembly to transaxle.
2. Tighten cap screws (K and M) to 20 N•m
(160 lb-in.).
3. Tighten lock nut (L) to specification until there is a
10 mm (0.39 in.) clearance between thick friction
puck and brake disc.
Install Drive Sheave and Shift Arm:
1. Install woodruff key (C) in input shaft (E).
2. Install drive sheave (D) and fasten with snap ring
(F).
3. Install shift arm (A). Tighten cap screw (B) to 16
N•m (140 lb-in.).
NOTE: Be sure when installing that special square
hole washer and shift arm are seated properly
over square end of shifter shaft.
Install Transaxle:
See “TRANSAXLE REMOVAL & INSTALLATION” on
page 23.
K
M
L
C
E
D
A
F
B
