Sachs SA 280A Repair Instructions

Fi g. 6
8

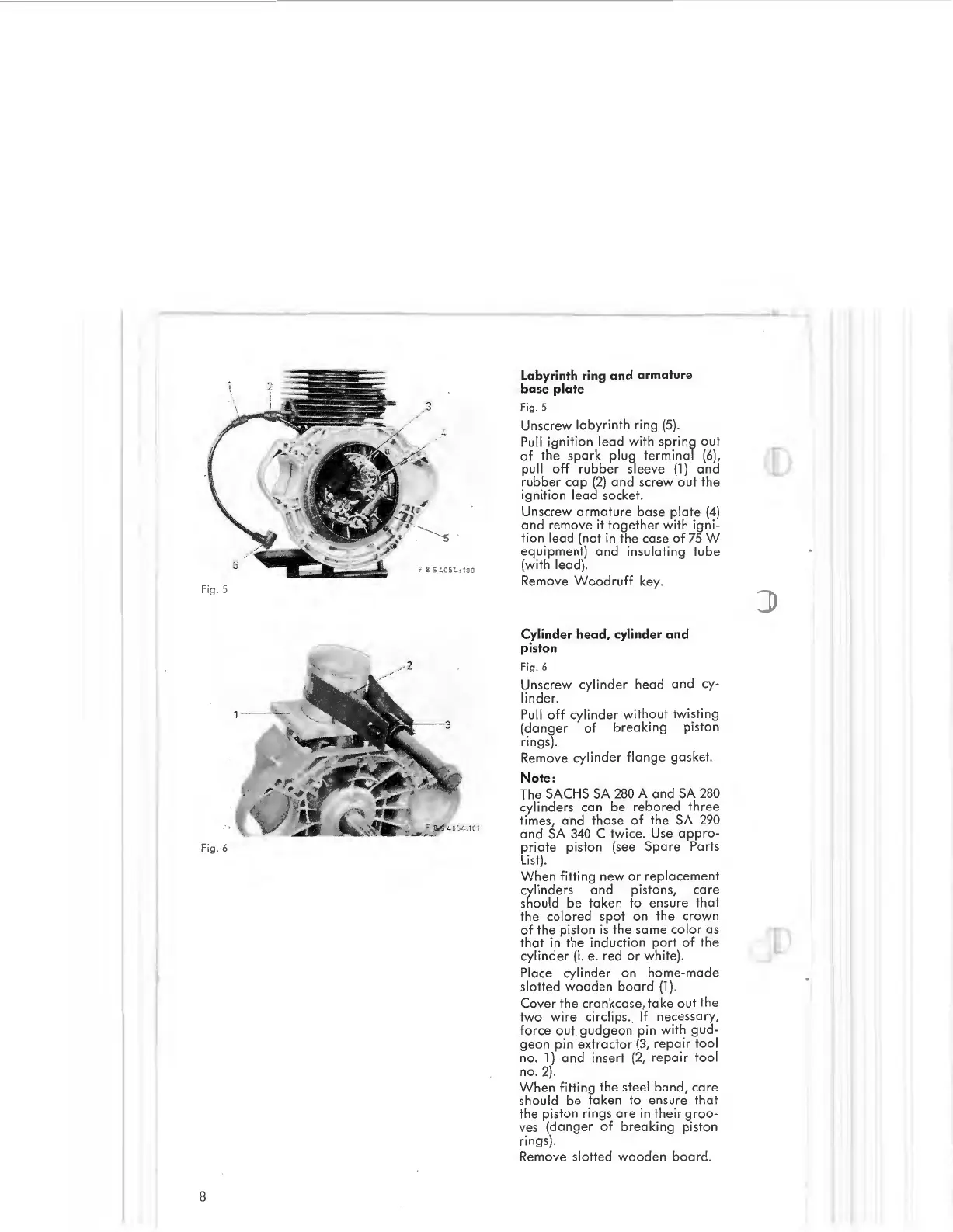

Labyrinth ring an d armature
base plate
Fi g. 5
Unscrew labyrinth ring (5).
Pull
ignition l ead with spring out
of the spark plug termina l (6),
pull off rubber sl eeve (1) and
rub ber cap (2) and screw out th e
ignition lead socket .
Unsc rew armature ba se pla te (4 )
and r emove it toget her with igni-
tion lead (not in th e case of 75 W
e
quipment) and ins ulatin g tub e
(with
lead) .
Remove Woodruff key.
Cylinder head , cylinder and
piston
Fig. 6
Un screw cylind er h ead and cy-
linde r.
Pull
off cylinder witho ut twisting
(danger of break i ng pis ton
rings).
Remo
ve cylinder fl ange gasket.
Note :
The SACHS SA 28 0 A and SA 28 0
c ylind ers can be rebored thr ee
tim es, and th ose of th e SA 29 0
and SA 340 C twic e. Use ap p ro -
priat e piston (see Spar e Part s
Li st).
When fitti ng new or replacement
cy lin ders and pis ton s, ca re
sh
ou ld be tak e n to en sure th at
th e colo red s pot on th e crown
of th e pis to n is th e sam e color as
that in the inducti o n p ort of the
cylinder (i . e. r ed or whit e).
Plac e cy l ind er on hom e- mad e
s
lotted wooden board (1 ).
Co ver the crankc ase, tak e o ut th e
two wire circlip s .. If n ec e ssar y,
force out, g ud geon pin wi th g ud -
geo n pin ex tract o r (3, repa ir t oo l
no . 1) a nd in se rt (2, re pair tool
no . 2) .
W
hen fit ting th e steel band , ca re
sho uld
be ta ken to en sure that
th e piston rin gs are in th eir groo -
ves (danger of br ea king pis ton
rings).
Re
mov e slotted w oo den b oar d .
