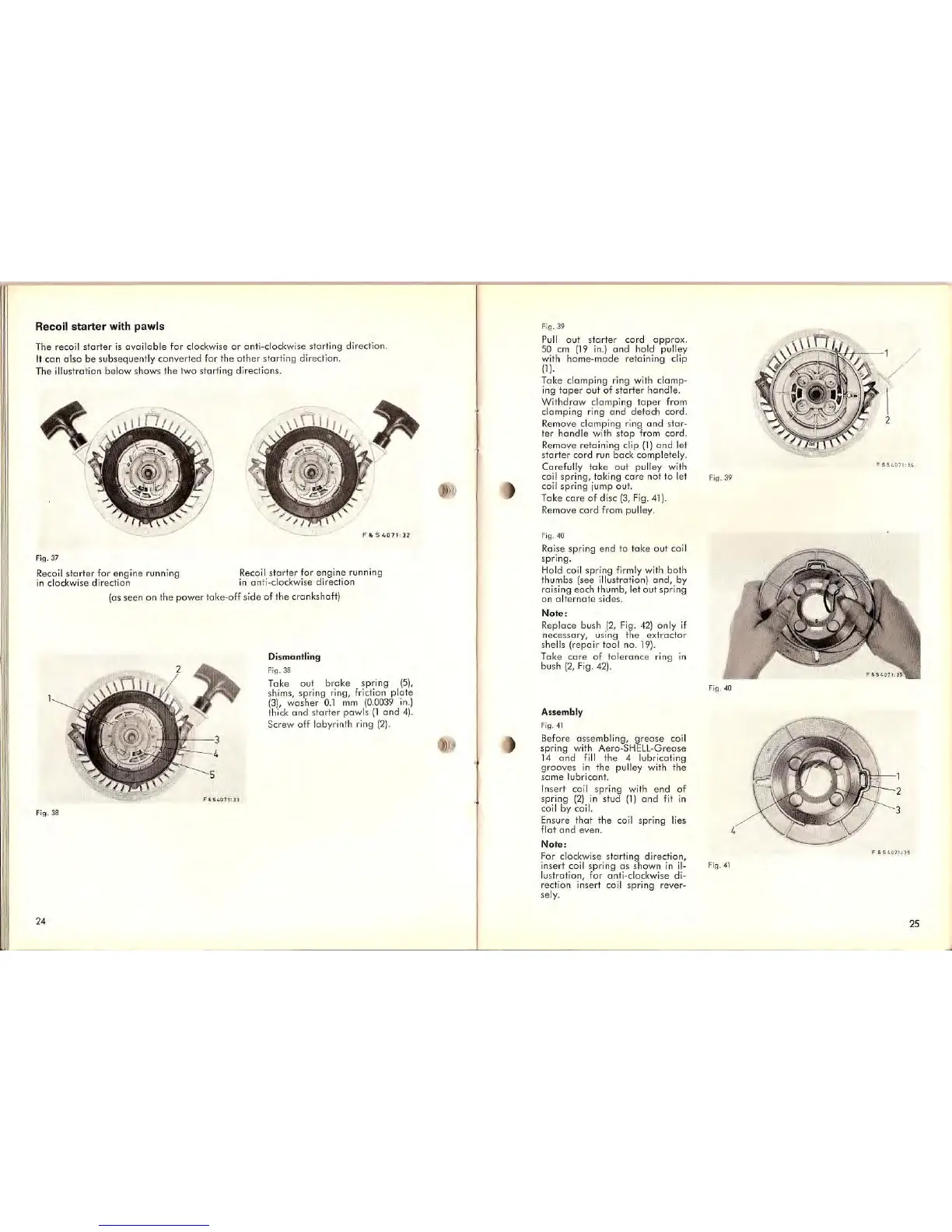

Recoil
starter
with pawls
The recoil
starter
is
available
for clockwise
or
anti-clockwise sta rting direction.
It
can
also be subsequently converted for the
other
starting direction.
The
illustrat
io
n below shows the two starting directions.
-
Fig.
37
Recoil
starter
fo r engine running Recoil
star
t
er
for engine running
in
clockWIse directIon
in
ant
i-clockwise direction
Fi
g.
38
2'
(as seen
on
the
power
take-off side
of
the crankshaft)
Di
smantling
F
i
~.
38
Toke out broke sprmg
(5).
shims, spring ring, friction plate
(3).
washer
0.
1 mm (0.0039 in.)
thi
ck
and
starter pawls
(land
4)
.
Screw off labyrinth ring
(2).
Fig. 39
Pull
ou
t sta rter cord
opprox.
50
cm
(19
in.)
and
hold pulley
with
home-made
retaining clip
(11·
Toke clamping ring
wi
th clamp-
ing
taper
out
of
starter
handle.
Withdraw
clamping
toper
from
clamping ring
and
detach cord.
Remove clamping ring
and
st
ar-
ter
handle
with st
op
from cord.
Remove retaining clip (\)
an
d let
starter
cord run bock completel
y.
Carefully to
ke
aut
pulley
wi
th
coil
spring, taking
core
not to l
et
coil spring jump out.
Toke
core
of
disc
(3,
Fig. 41).
Remove
cord
from pulley.
Fig. 40
Rai~e
spring
end
to t
oke
out coil
spring.
Hold
(o
il sp
ri
ng
firmly with both
thumbs (see
illustration)
and,
by
raising
each
thumb, let
out
spring
on
alternate
side
s.
Note
:
Repl
ace
bush
./2,
Fig.
42)
only
if
necessary, u
Sing
the ex
trac
t
or
shells (r
epai
r tool no.
19).
Toke
core
of
tolerance
nng
In
bush (2, Fig.
42).
Assembly
f ig.
41
Before assembling,
grease
coil
spr
ing with Aero-SHELL-Grease
14
and
f
ill
the 4 lubricating
grooves
in
the pulley with the
same
lubri
cant
.
Insert coil
spr
ing with
end
of
spring
(2)
in
stud (
1)
and
fit
in
coil by coil.
Ensure that the coil spring lies
flat
and
even.
Note:
For clockwise starting direction,
insert coil spring
as
shown
in
il-
lustration, f
or
anti-clockwise di-
rection insert coil spring rever-
sel
y.
Fi
f!.
39
Fi
g.
41
~
1
2
25
