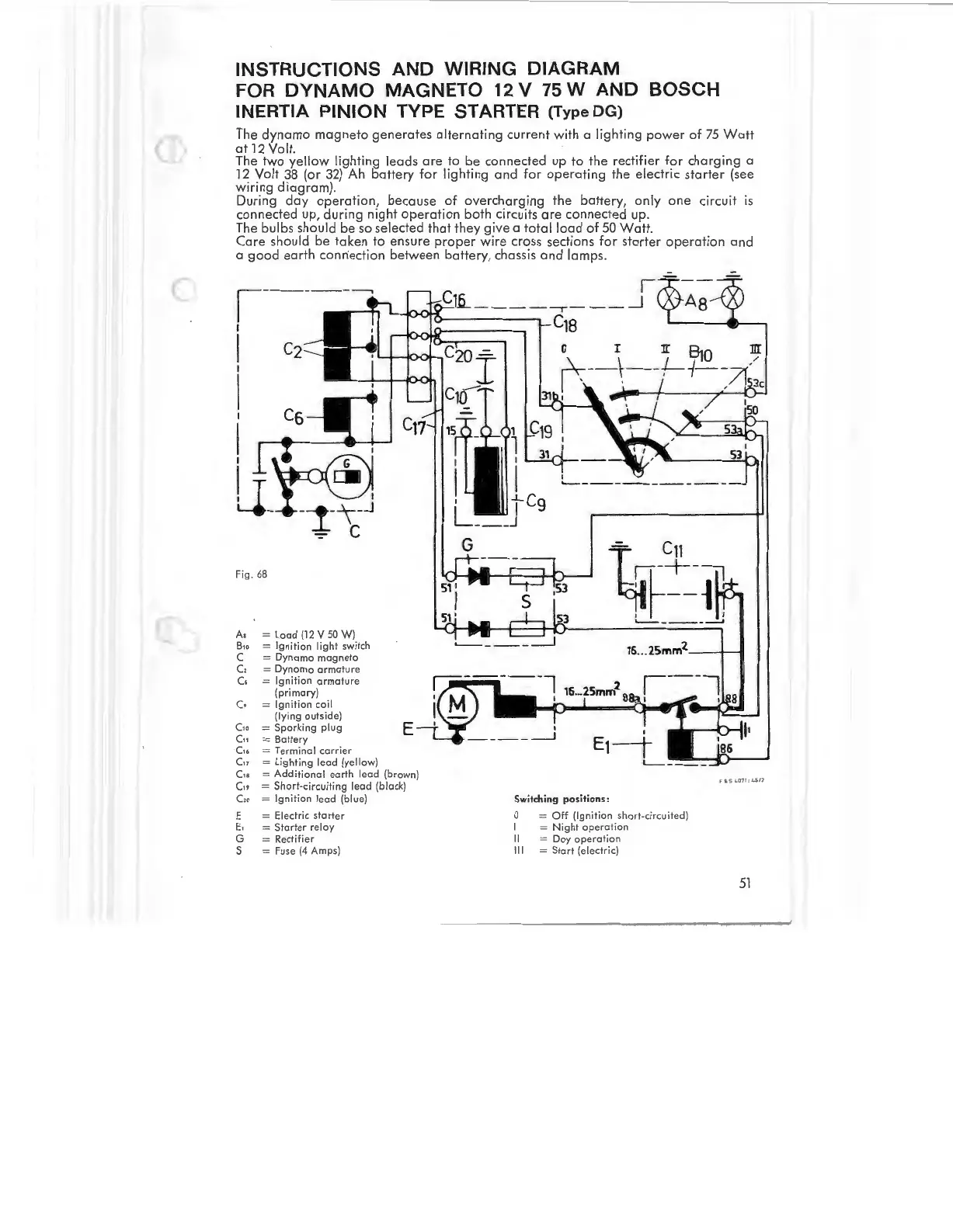

INSTRUCTIONS AND WIRING DIAGRAM
FOR DYNAMO MAGNETO 12 V 75 W AND BOSCH
INERTIA PINION TYPE STARTER (Type DG)
The dynamo magneto gen erates alternating current w ith a li ghting po w er of 75 Watt
at 12 Volt .
The
two ye llow lighting le ads are to be conn ected up to the rect i fie r for charging a
12
Volt 38 (or 32) Ah batt e ry for lighting and for operating the electric st arter ( se e
wiring diag ram).
During day operation , because of ov ercharging the battery, only one circuit is
connected up, during night ope r ation both circuits are connected up .
The
bulbs should be so selected that they gi ve a total l oad of 50 Watt.
Care should be taken to ensure proper wire cross sections for starter operation and
a good ea rth co nn ecti on betw een battery, chassis and lamps .
, -- - ------,
I
I
i
I
I
I
I
I
Fig. 68
Aa = L oad (12 V 50 W)
B., = lgnilion light switc h
C
= Dyn amo magneto
C2 = Dy nam o ar ma tu re
C6 = Ign it ion armatur e
(primary)
(, = Igni tion coil
(
ly ing ou tsid e)
(, = Sparki ng plug E
(, = Battery
C16 = Te rminal carr ier
Cn = Lig hti ng lead (ye ll ow )
(,. = Add i tiona l ea rth le ad (brown)
Ca = Sh ort-c ir cuiting l eod (block)
(, = Ign it ion lead (blu e)
= Elect ri c st ar ter
E, = St art er relay
G = Rec ti fier
S = Fu se (4 Amps)
t & S 1.07 1: 1..SI'J
Switching position s :
0 =
Off (Ign itio n short-c ir c uit ed)
I =
Nig ht operation
II = Day op eration
Il l = St ar t (e lectri c)
51
