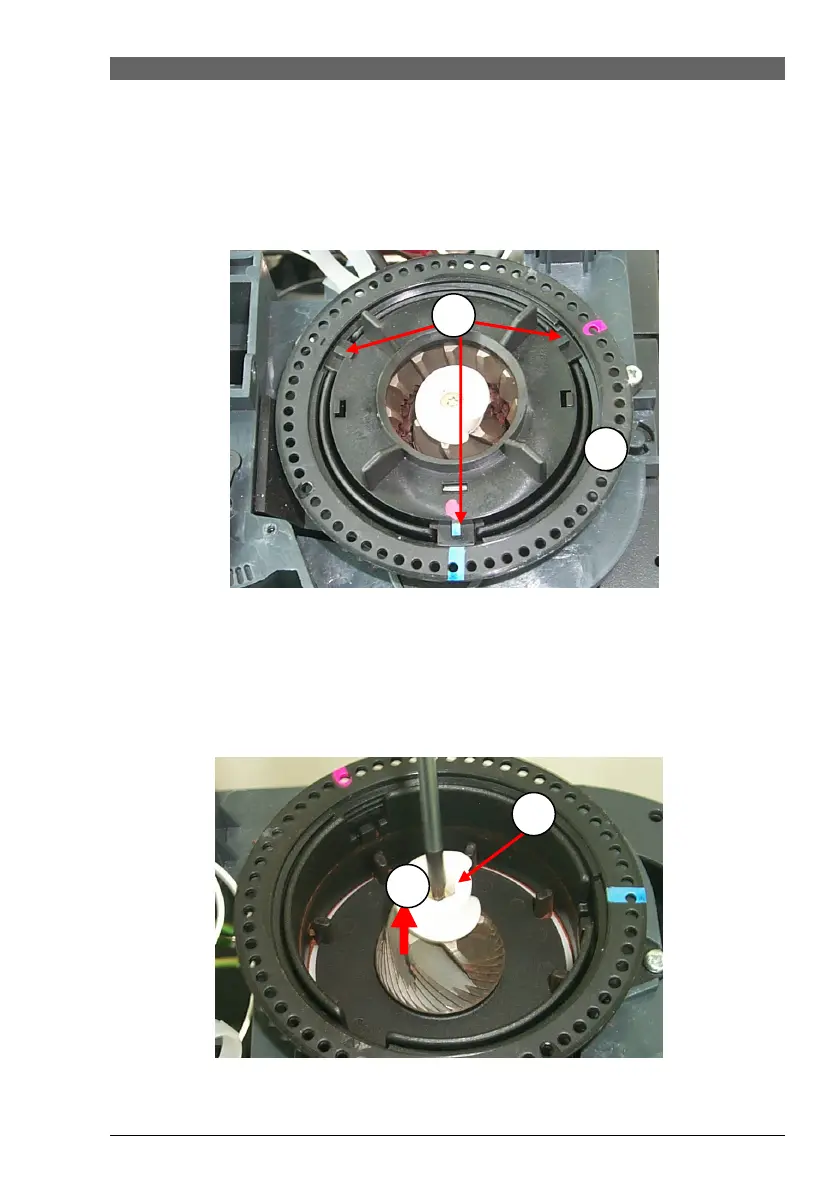

5. Disassembling the grinder
a) Turn the grinding adjustment ring (1) counter clockwise until the three lugs of
the grinding disc fitting (2) are clearly visible and remove the upper grinding
disc from the grinder. Using a vacuum cleaner remove the ground coffee.
Fig. 11
b) Remove the fixing screw (1) of the grinding cone (note: left thread).
c) Carefully remove the grinding cone (2) (take care of balls and springs of
friction clutch).
Fig. 12
2
1
2
1
