MAGIC 9. DISASSEMBLY
Saeco International Group REV.5 SEPT.2004 Seite 1/18
1. Disassembly of the housing
a) Remove: Driptray, dreg drawer, water tank and brew unit.
b) Unscrew the bean container by removing the two screws (1). New models may
have a additional housing screw below the bean container to be unscrewed.
c) Remove the two screws (2) below the water tank (Torx/T10).

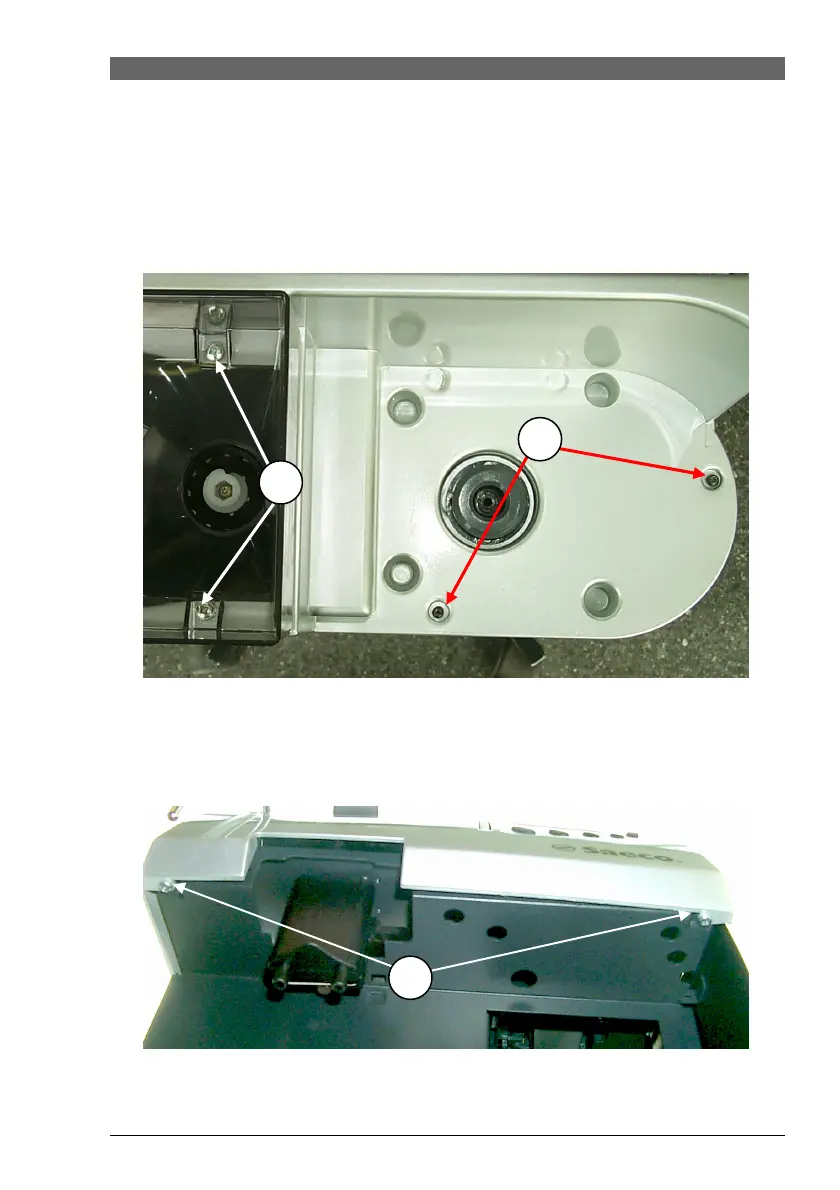

Fig. 1
d) Remove the two bottom housing screws (1).
Fig. 2
