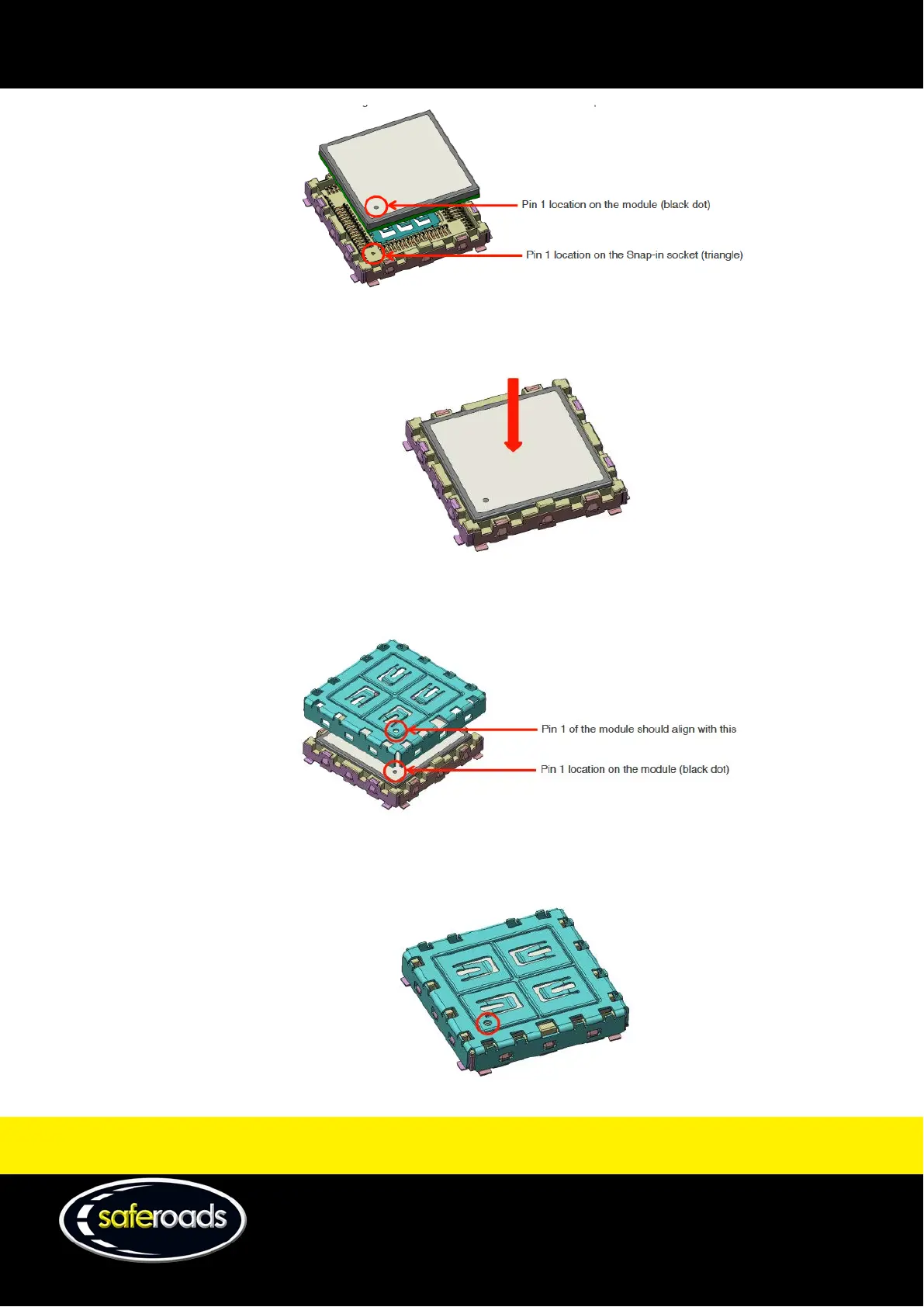

Figure 75
• Put the module down in the socket. Use vertical motion to insert the module.
Figure 76
• Check the orientation of the cover based on the location of pin 1.
Figure 77
• Smoothly press the cover onto the Snap-in socket. The cover should be properly aligned with pin 1
of the module.
Figure 78
