84 FP5/GP5 User’s Manual
Chapter 3 - Programming Features
Frequency Agree (setting: “At Speed”)
See Figure 51 below for an example of selecting the frequency agree sig-
nal as the function of output terminals MA, MB or M1.
Desired Frequency Agree (setting: “At Desired Speed”)
See Figure 52 below for an example of selecting the desired frequency
agree signal as the function of output terminals MA, MB or M1.
Detection Width ±2Hz
Output Frequency
Frequency Agree Signal
ON
Release Width ±4Hz
Frequency Reference

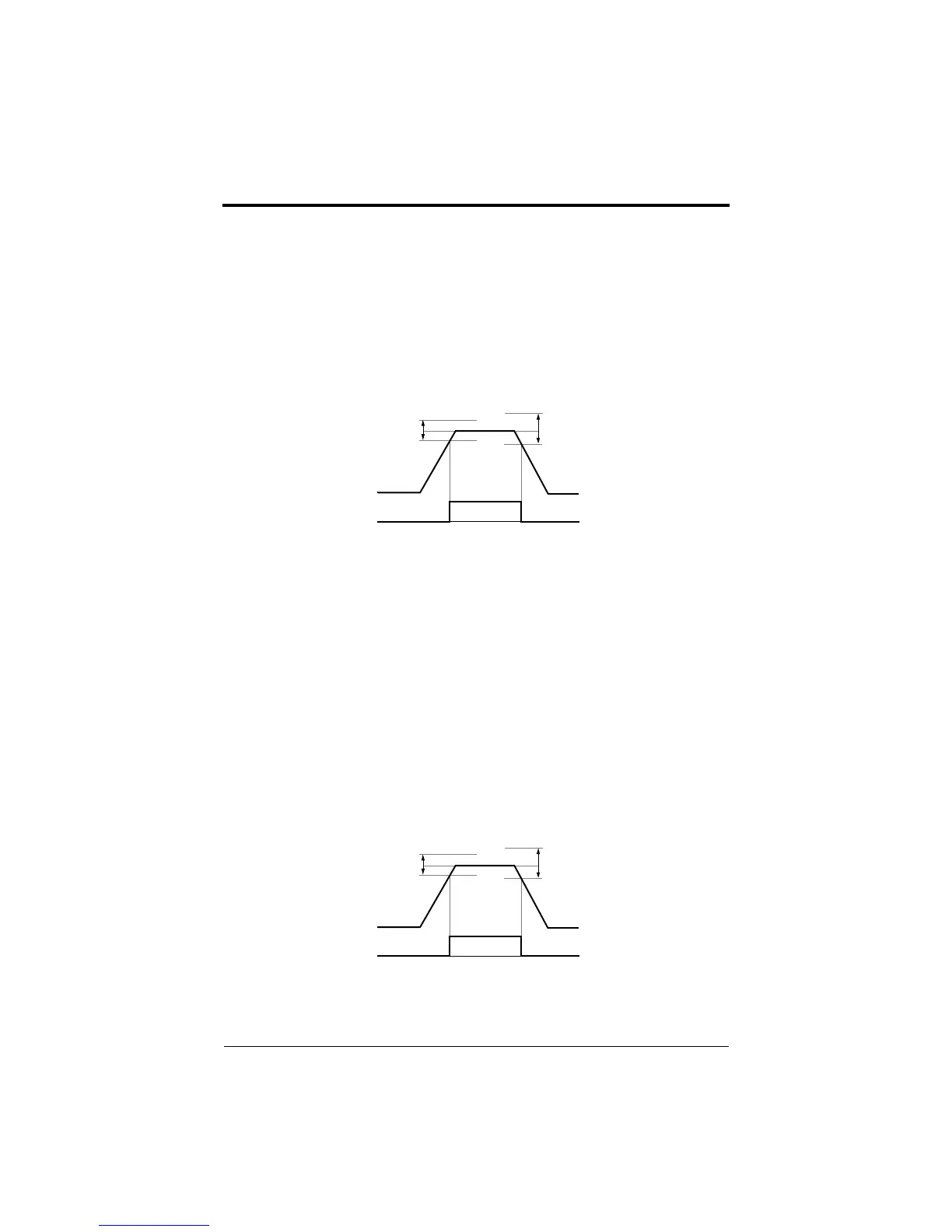

Figure 51 Example of Frequency Agree Signal (setting: “At Speed”)
Detection Width ±2Hz
Output Frequency
Desired Frequency Agree Signal
ON
Release Width ±4Hz
Desired Frequency Agree
Figure 52 Example of Desired Frequency Agree Signal (setting: “At Desired Speed”)
Set Point (n075)
