5.3 ADSL connection status
Refer to subsection 5.5.1 – Device Info/Summary.

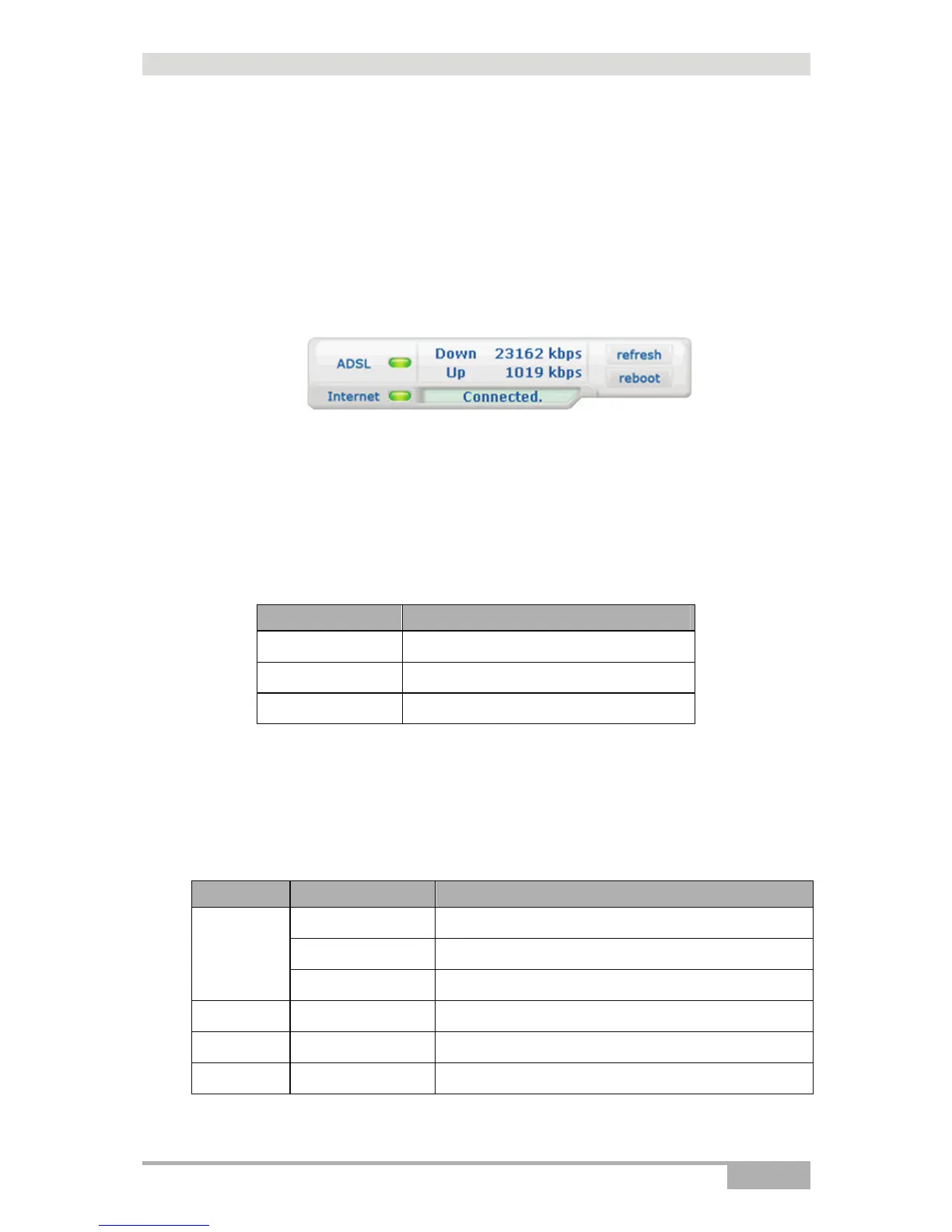

5.4 Display frame
The router’s activity status is always visible at the top right corner of the HTTP configuration
tool.
You can perform the following actions:
• click on Refresh to update the data displayed
• click on Reboot to restart your router
ADSL information
The following table presents the possible states of the ADSL field:
Status Meaning
Green
ADSL line synchronised
Yellow
ADSL line synchronising
Red
ADSL line not connected
The Down field displays the nominal downlink bit rate.
The Up field displays the nominal uplink bit rate.
Internet information
The following table presents the possible states of the Internet field:
Status Status Meaning
ADSL Down
ADSL line not connected or not activated
Not configured
The Internet account must be configured
Off
Router rebooting
Router is rebooting
Green
Connected
The Internet account is configured
Yellow
Waiting for ISP
ADSL line synchronising
Red
Access denied
Incorrect Internet account
