DTR94 HD freesat
6

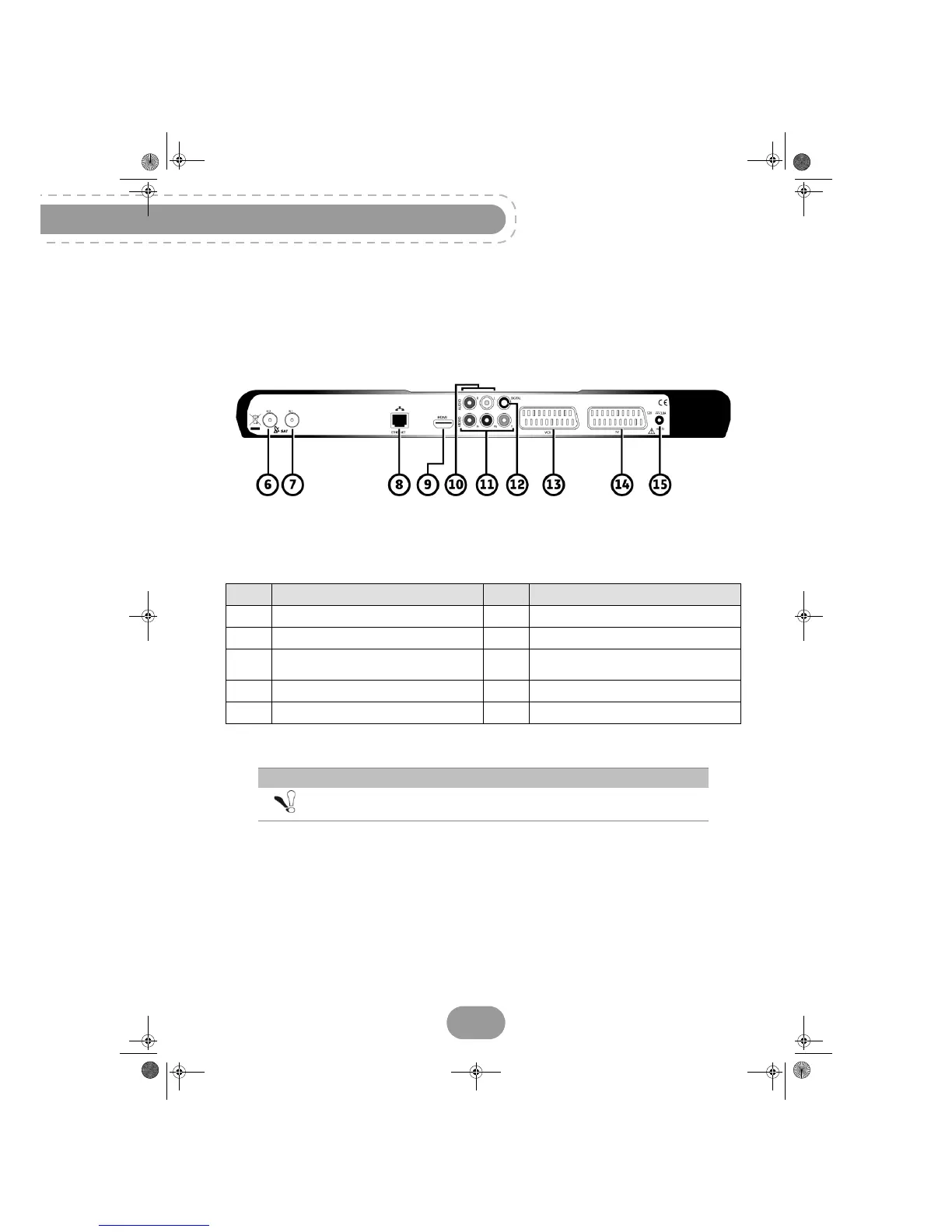

Rear panel of the recorder
Item Description Item Description
6 Satellite dish input 2 11 Analogue component video (Y Pb Pr)
7 Satellite dish input 1 12 Digital audio connector (S/PDIF)
8
Ethernet port (for the use of BBC
iPlayer)
13
Scart connector (to VCR or DVD
recorder)
9 HDMI Digital video audio connector 14 Scart connector (to TV)
10 Analogue audio connectors 15 Power supply unit connector
Important
To fully enjoy the features of your recorder, make sure that you connect
the 2 satellite tuners (see Connection to the satellite dish, page 13).
