User Manual
5
3 Hardware Description and Installation
î Note:
The figures in this document are for reference only.
3.1 Hardware Description
3.1.1 Front Panel

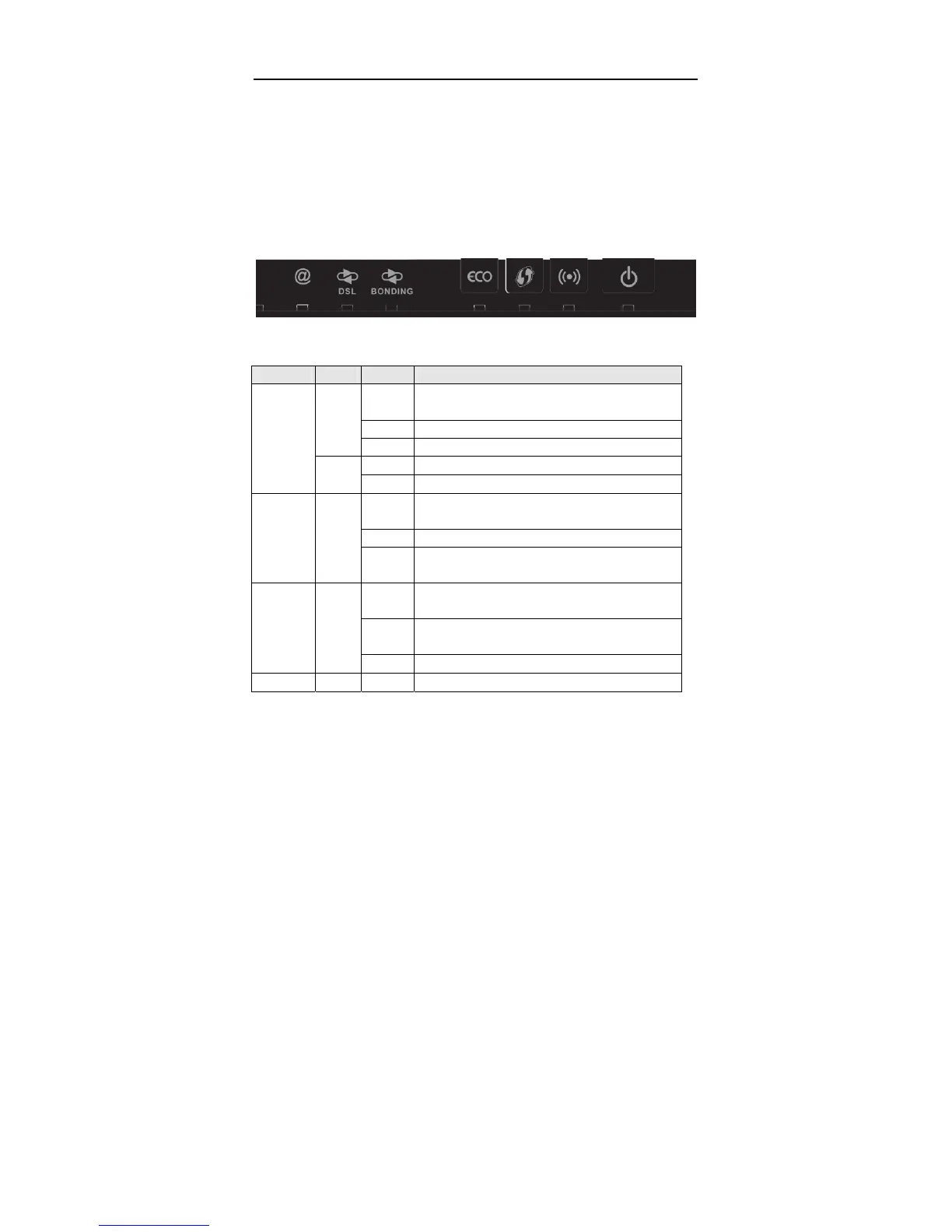

Figure 1 Front panel
The following table describes the indicators on the front panel.
Indicator Color Status Description
On
The device is powered on and the device operates
normally.
Blink The software is upgrading.
Green
Off The device is powered off.
On The device is initiating.
Power
Red
Blink The software is upgrading.
On
The WAN interface is connected to the Ethernet
cable.
Blink Network data is transmitting.
WAN Green
Off
The WAN interface is not connected to the
Ethernet cable.
On
Connection succeeds under Wi-Fi Protected
Setup.
Blink
Negotiation is in progress under W-iFi Protected
Setup.
WPS Green
Off Wi-Fi Protected Setup is disabled.
DSL Green On DSL link has established.
