User Manual
6
Indicator Color Status Description
Blink The DSL line is training.
Off Device is powered off.
On
Internet is synchronized successfully in the route
mode.
Blink Internet data is being transmitted.
Green
Off Ethernet interface is disconnected.
Internet
Red On Authentication has failed.

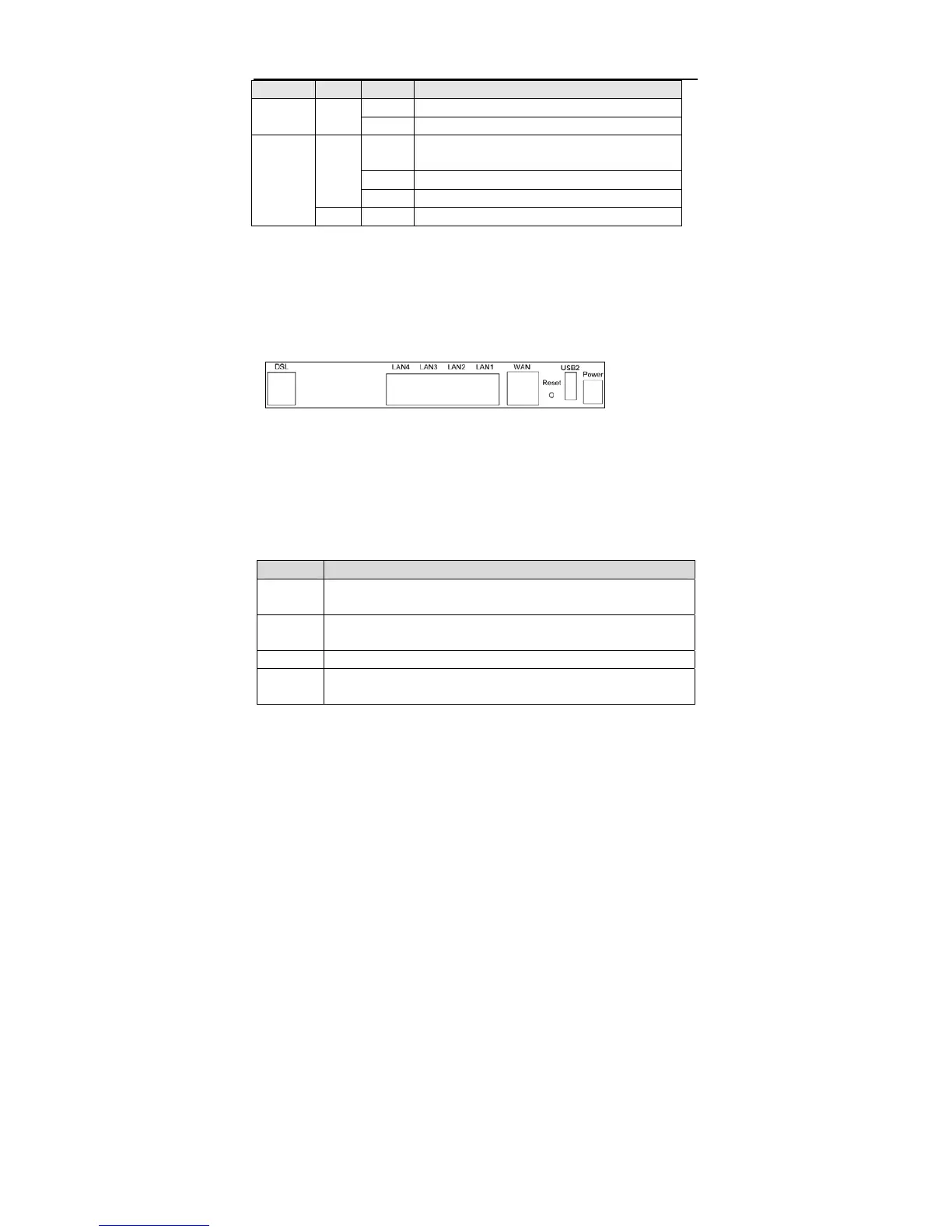

3.1.2 Rear Panel and Side Panel
Figure 2 Rear panel
The following table describes the interfaces and the buttons.
Interface Description
DSL
RJ-11 port. Connect the router to DSL connector or splitter through
telephone cable.
LAN 4~1
RJ-45 port, for connecting the router to a PC or another network
device.
WAN For connecting Ethernet cable to provide Ethernet uplink.
Reset
Press the button for at least 1 second and then release it. System
restores the factory default settings.
