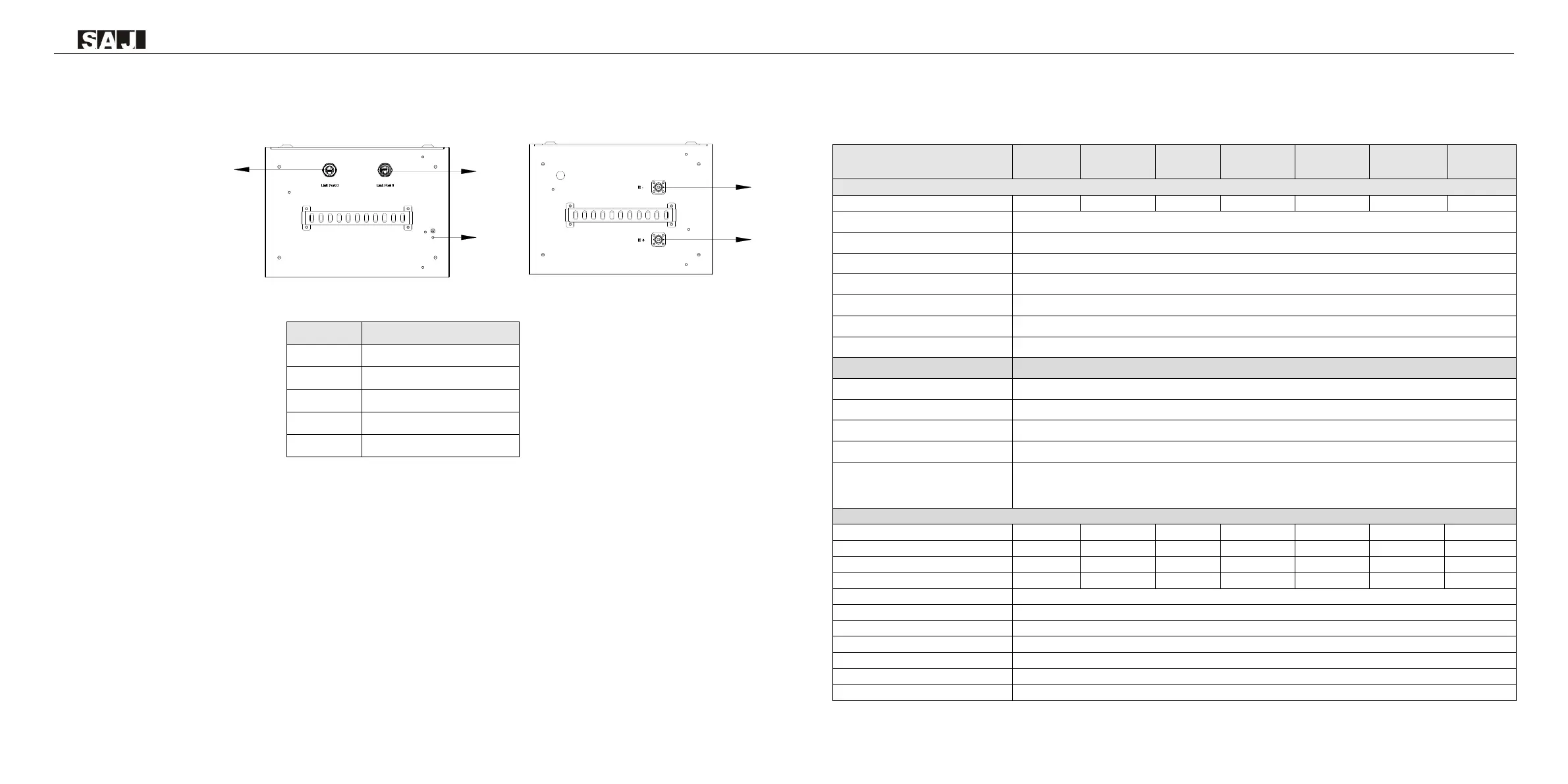

Figure 3.4 Battery module interface (left view & right view)
Code
Name
A
Link Port 0
B
Link port 1
C
Ground port
D
B- port
E
B +port
Table 3.3 Battery module interface
3.5 Datasheet
Inverter
Model
HS2-3K-S2/
AS2-3K-S
HS2-3.6K-S2/
AS2-3.6K-S
HS2-4K-S2
/ AS2-4K-S
HS2-4.6K-S2/
AS2-4.6K-S
HS2-5K-S2/
AS2-5K-S
HS2-5K-S2-B/
AS2-5K-S-B
HS2-6K-S2/
AS2-6K-S
DC Input (For HS2-3-6K-S2 only)
Max. PV Array Power [Wp]@STC
4500
5400
6000
6900
7500
7500
9000
Max. DC Voltage [V]
550
MPPT Voltage Range [V]
90~500
Rated DC Voltage [V]
360
Start Voltage/ Min. Input Voltage[V]
100
Max. DC Input Current [A]
16/16
Max. DC Short Circuit Current [A]
19.2/19.2
No. of MPPT
2
Battery Parameters
Battery Type
LiFePO4
Battery Voltage Range [V]
85~450
Max. Charging/Discharging Current [A]
30/30
Scalability
BU2-5.0-HV1/5 (up to 4 battery modules)
Short Time Withstand Current/
Conditional Short-circuit Current [A]
(For AS2-3-6K-S Series Only)
<10000
AC Output [On-grid]
Rated AC Power [W]
3000
3680
4000
4600
5000
5000
6000
Max. Apparent Power [VA]
3300
3680
4400
4600
5500
5000
6000
Rated Output Current [A]@230Vac
13.0
16.0
17.4
20.0
21.7
21.7
26.1
Max. Output Current [A]
15.0
16.0
20.0
20.0
25.0
22.7
27.3
Current Inrush [A]
100
Max. AC Fault Current [A]
55
Max. AC Over Current Protection [A]
55
Rated AC Voltage/Range [V]
L+N+PE, 220,230,240/180～280
Rated Output Frequency/Range [Hz]
50,60/45~55,55~65
Power Factor [cos φ]
0.8 leading～0.8 lagging
Total Harmonic Distortion [THDi]
<3%
A
B
C
D
E
