SAJ HS2 Series - Terminal Descriptions

HS2/AS2 Series
11
12
3.4 Terminals Description

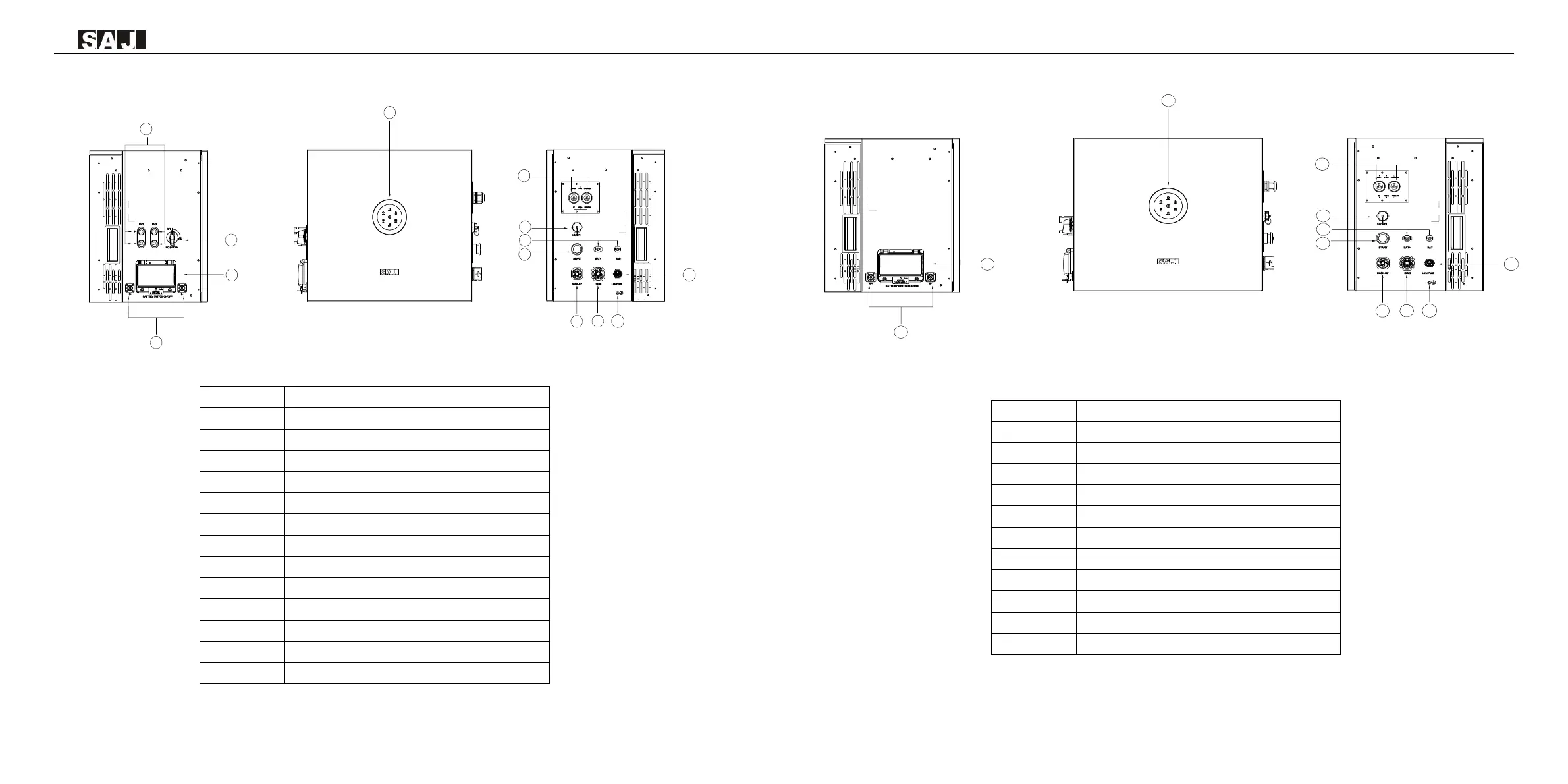

Figure 3.2 HS2 Inverter unit interface (left view and right view)
Table 3.1 HS2 interface
Figure 3.3 AS2 unit interface (left view and right view)
Table 3.2 AS2 interface
Position
Name
1
B+/ B- port (to inverter)
2
Battery Switch
3
DC Switch
4
PV Input
5
Display
6
Communication Port
7
4G/ Wi-Fi Module Port Communication Port
8
BAT+/BAT- port (for parallel connection)
9
Start button
10
BACK UP
11
Grid Ground
12
Ground
13
Link Port 0 (to battery module)
Position
Name
1
B+/ B- port (to inverter)
2
Battery Switch
3
Display
4
Communication Port
5
4G/ Wi-Fi Module Port Communication Port
6
BAT+/BAT- port (for parallel connection)
7
Start button
8
BACK UP
9
Grid Ground
10
Ground
11
Link Port 0 (to battery module)
5
4
3
2
1
7
6
8
9
13
1211
10
3
2
1
5
4
6
7
11
109
8
