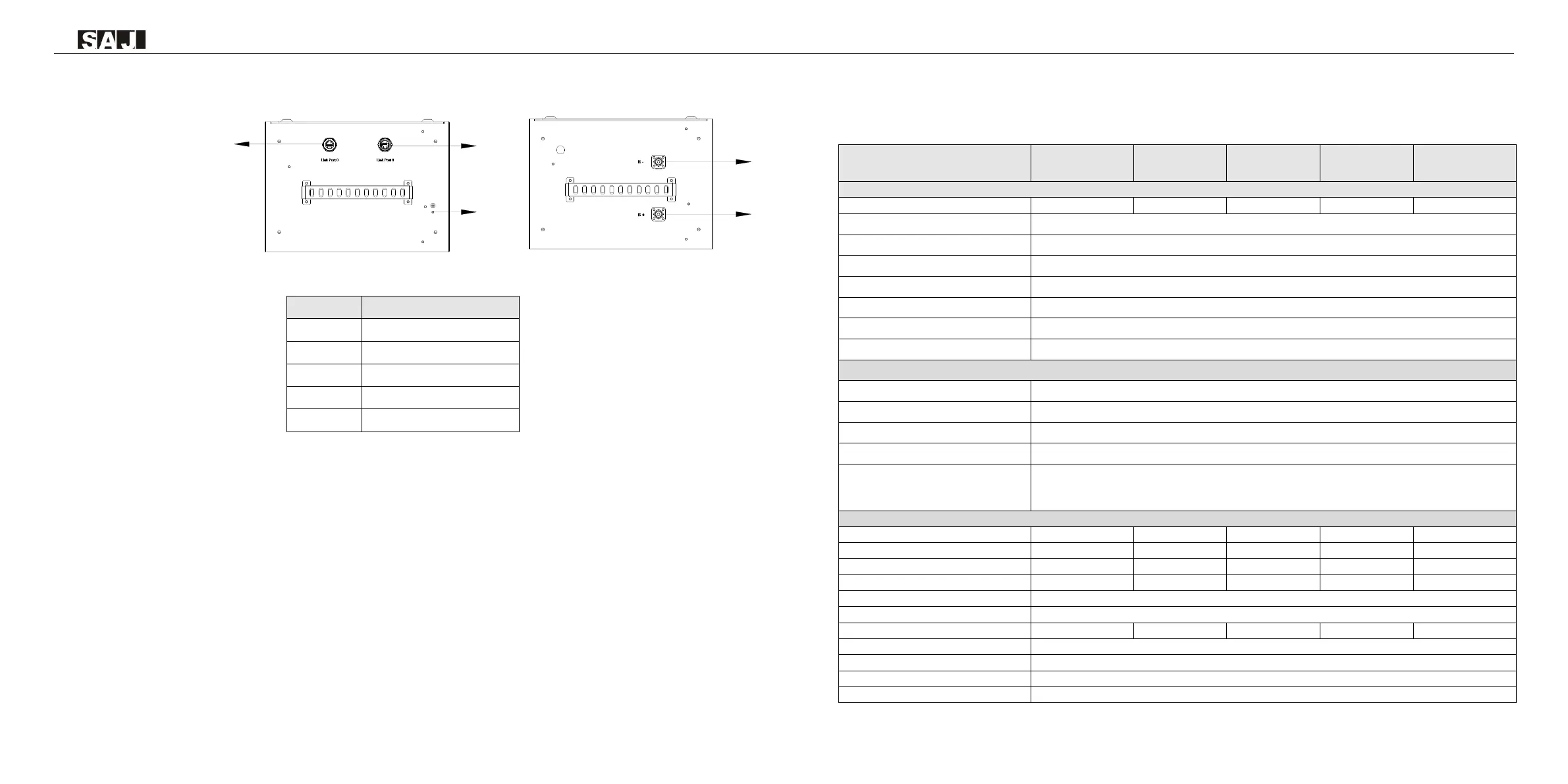

SAJ HS2 Series User Manual

HS2/AS2 Series
13
14
Figure 3.4 Battery module interface (left view & right view)
Code
Name
A
Link Port 0
B
Link port 1
C
Ground port
D
B- port
E
B +port
Table 3.3 Battery module interface
3.5 Datasheet
Inverter
Model
HS2-5K-T2/
AS2-5K-T
HS2-6K-T2/
AS2-6K-T
HS2-8K-T2/
AS2-8K-T
HS2-10K-T2/
AS2-10K-T
HS2-10K-T2-B/
AS2-10K-T-B
DC Input (For HS2-5-10K-T2 only)
Max. PV Array Power [Wp]@STC
7500
9000
12000
15000
15000
Max. DC Voltage [V]
1000
MPPT Voltage Range [V]
180~900
Rated DC Voltage [V]
600
Start Voltage/ Min. Input Voltage[V]
180
Max. DC Input Current [A]
16/16
Max. DC Short Circuit Current [A]
19.2/19.2
No. of MPPT
2
Battery Parameters
Battery Type
LiFePO4
Battery Voltage Range [V]
180~600
Max. Charging/Discharging Current [A]
30/30
Scalability
BU2-5.0-HV1/5 (up to 5 battery modules)
Short Time Withstand Current/
Conditional Short-circuit Current [A] （For
AS2-5-10K-S Series Only）
<10000
AC Output [On-grid]
Rated AC Power [W]
5000
6000
8000
10000
10000
Max. Apparent Power [VA]
5500
6600
8800
11000
10000
Rated Output Current [A]@230Vac
7.2
8.7
11.6
14.5
14.5
Max. Output Current [A]
8.3
10.0
13.3
16.7
15.2
Current Inrush [A]
52
Max. AC Fault Current [A]
45
Max. AC Over Current Protection [A]
20.8
25
33.3
41.8
41.8
Rated AC Voltage/Range [V]
3L+N+PE, 220/ 380Vac, 230/ 400Vac
Rated Output Frequency/Range [Hz]
50,60/45~55,55~65
Power Factor [cos φ]
0.8 leading～0.8 lagging
Total Harmonic Distortion [THDi]
<3%
A
B
C
D
E
