Wall Mounting
Make sure that the wall is capable of mounting screws and supporting the weight of the battery pack before
installation. For safety reason, solid wall is recommended for wall mounting, cavity wall and timber wall are
not allowed to install the battery system.
Step 1: Assemble the bracket and secure it with screws

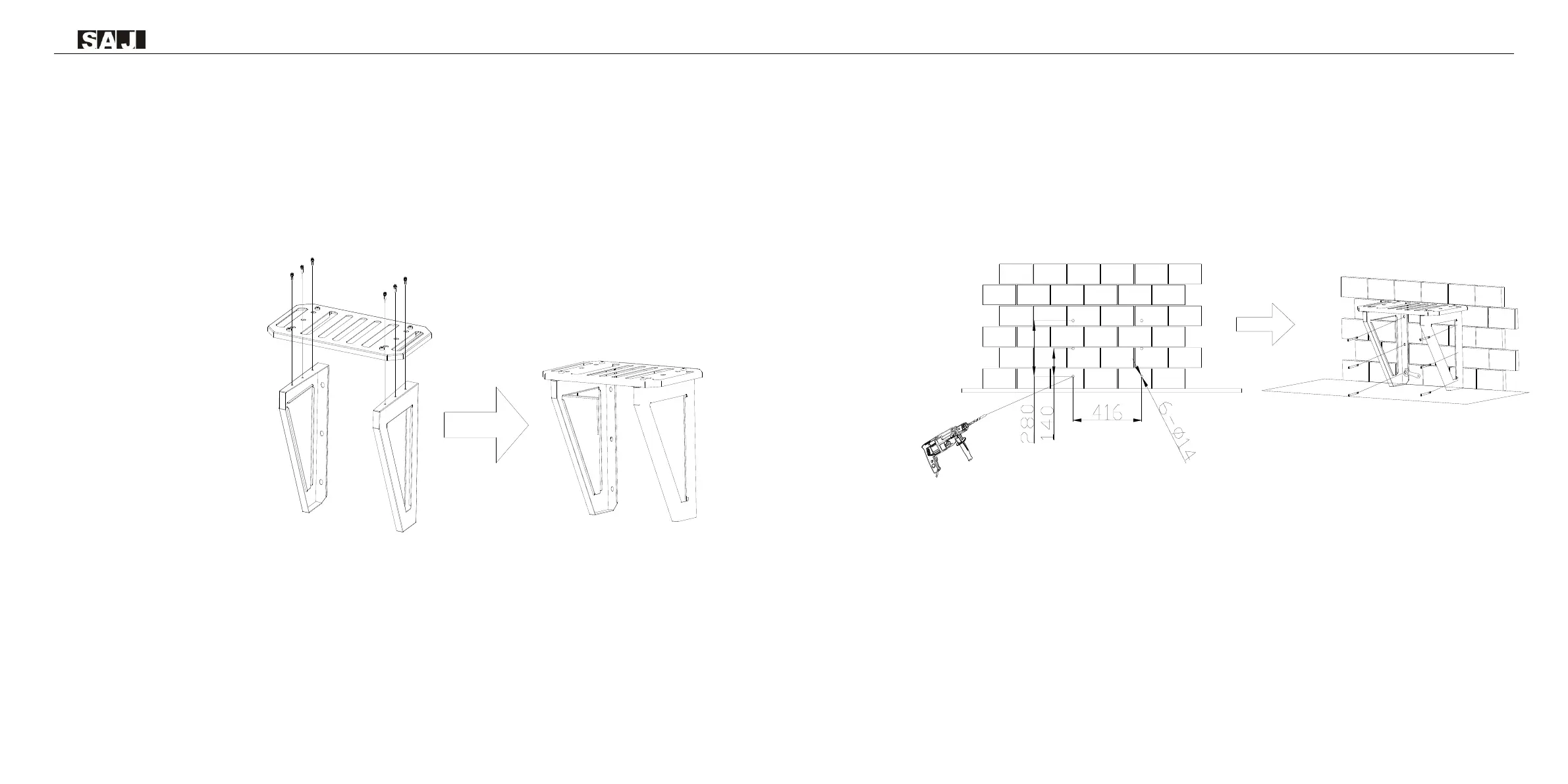

Figure 4.10
Assembling the bracket
Step 2: Mark the proper positions of mounting bracket and drill holes on those positions (14mm in diameter,
65mm in depth) by using the mounting bracket as a template, and then use a rubber hammer to drive the
screw fixing seat into the holes to fix the bracket.
Note: It is recommended to leave no gap between the bracket and ground.
Figure 4.11
Drill holes’ dimensions of
bracket
