5.1 Additional Grounding Cable
Electrical connection must only be operated by professional technicians. Before connection, necessary
protective equipment must be employed by technicians, including insulating gloves, insulating shoes and
safety helmet.
WARNING
· Connect this additional grounding cable before other electrical connection.
Note: The additional cable and OT/DT terminal should be prepared by user themselves.

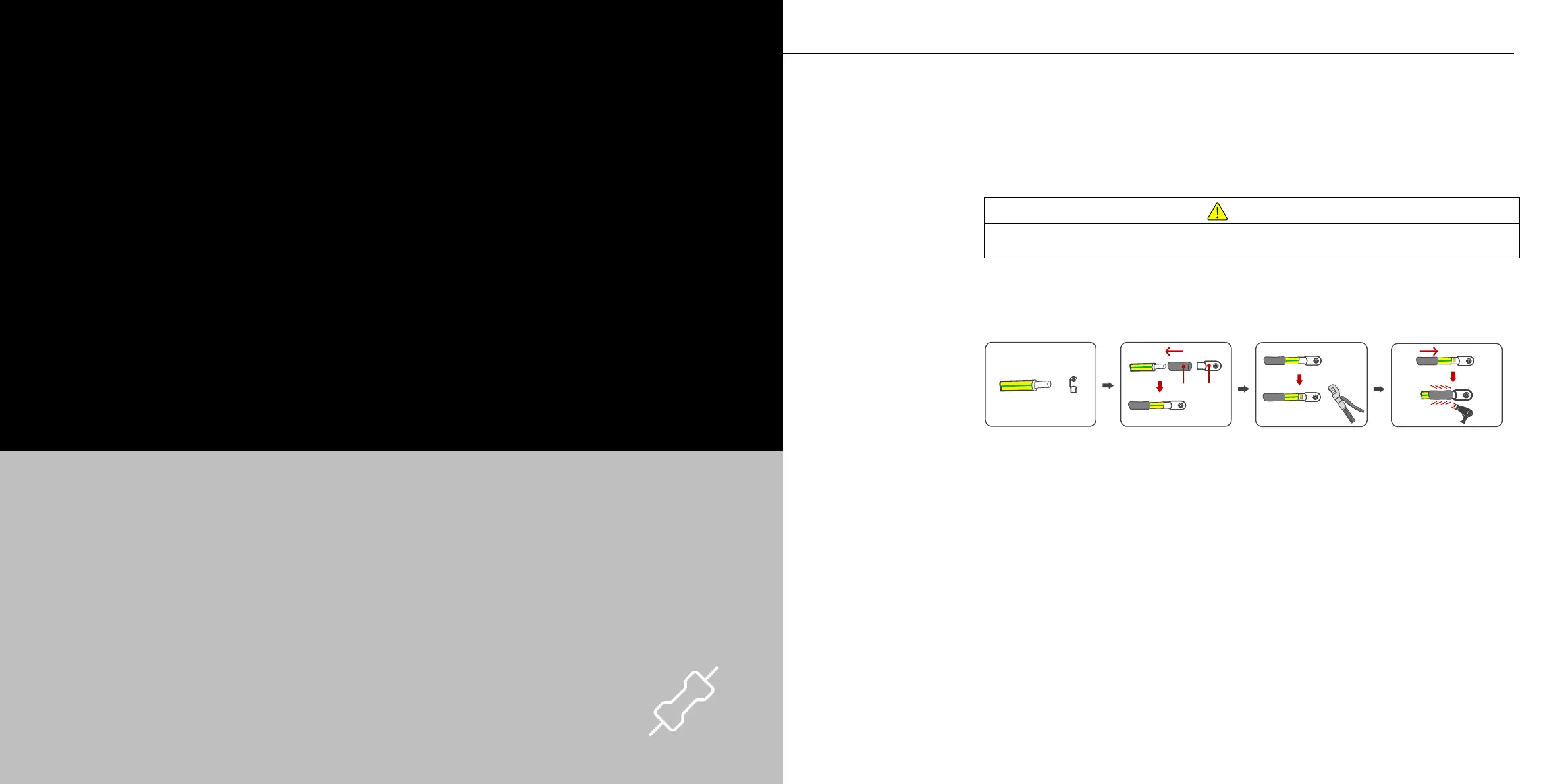

Figure 5.1
Preparing additional grounding cable
1. Heat shrink tubing 2. OT/DT terminal
