SAJ PDS23 Plus User Manual

PD20Series
- 34 -
Chapter 7 Backup AC power
In order to ensure continuous water supply, solar water pump system can be
manually switched to standby AC power supply when the light is insufficient or wet
days. When switching, the need to ensure that the DC and AC power supply reliable
mutual lock. Backup AC power source can be a local power grid, or a diesel
generator (please refer to the 2.4.3 technical form).
Warning: at any time, only one power supply can be entered, otherwise it may cause
the controller to damage.
Take three phase 380VAC backup AC power supply for example, the wiring is
shown in the following diagram:

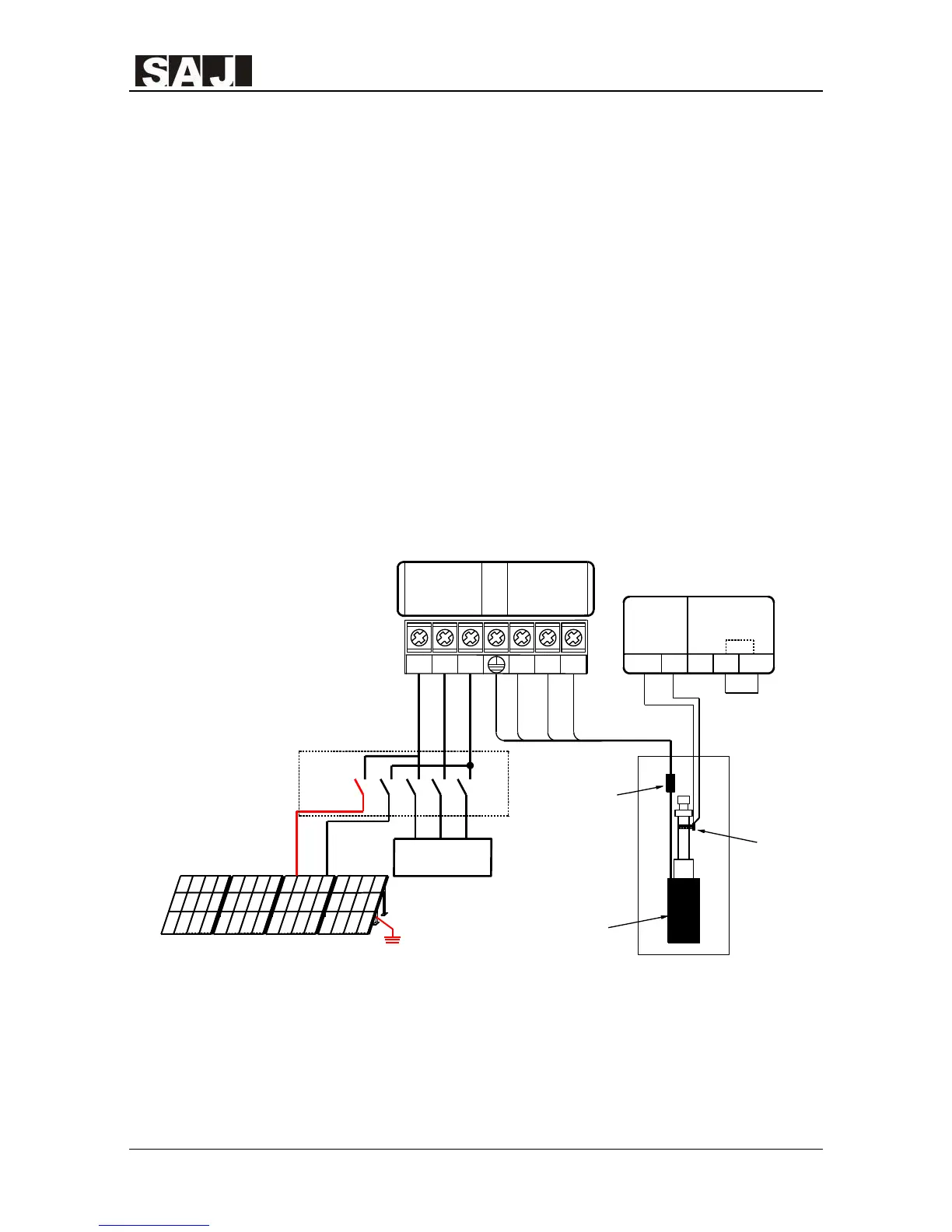

Figure 12 schematic diagram of alternate AC power supply
DC/AC INPUT
Pump
GROUND
To reverse
direction,reverse
any two wires
The DC and AC
can't input at
the same time .
Remote Float
Switch
Low-water
sensor prob e
Pump Motor
Low Water
Level Probe
(optional)
Float Switch
(optional)
Earth Ground
PV Array
Backup
AC Power
DC Switch
AC
Switch
R S T U V W
COM M4 M5 M6 COM
NC
N0
Power Switch Box
