SAJ R6-10K-S2-X User Manual

R6 Series Solar Inverter
9
10

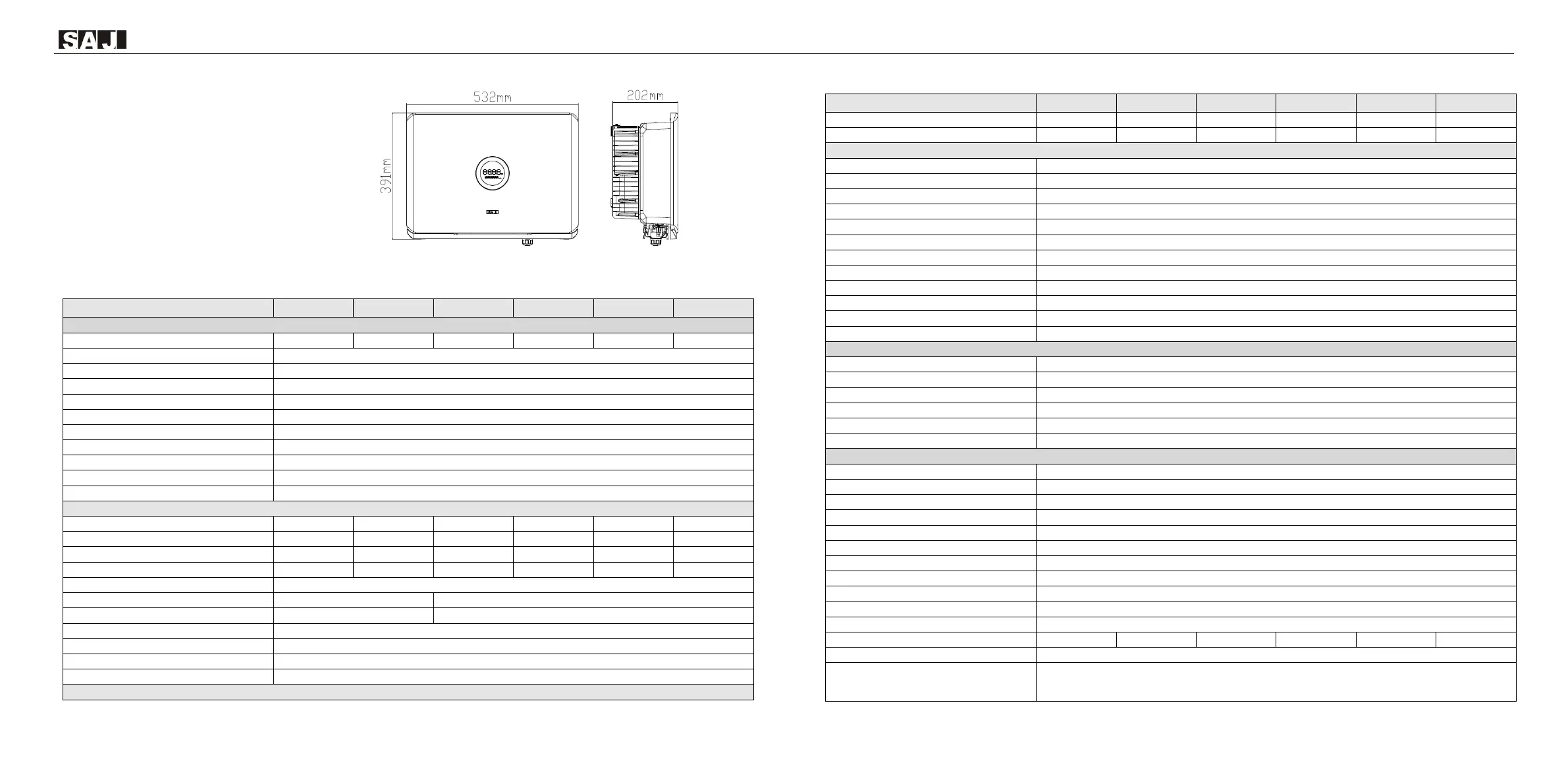

3.3 Overview of Productsl
Figure 3.2
Dimensions of R6-5-10K-S3
3.4 Datasheet
Model
R6-5K-S3
R6-6K-S3
R6-7K-S3
R6-8K-S3
R6-9K-S3
R6-10K-S3
DC Input
Max. PV Array Power [Wp]@STC
7500
9000
10500
12000
13500
15000
Max. DC Voltage [V]
600
MPPT Voltage Range [V]
90-550
Rated DC Voltage [V]
360
Start Voltage [V]
100
Min. DC Voltage [V]
80
Max. DC Input Current [A]
16/16/16
Max. DC Short Circuit Current [A]
19.2/19.2/19.2
No. of Strings per MPPT
1/1/1
No. of MPPT
3
DC Switch integrated
Integrated
AC Output [On-grid]
Rated AC Power [W]
4999
6000
7000
8000
9000
10000
Rated Apparent Power [VA]
4999
6000
7000
8000
9000
10000
Max. Apparent Power [VA]
4999
6600
7700
8800
9900
10000
Max. AC Current [A]
21.7
30.0
35.0
40.0
45.0
45.5
Current Inrush [A]
30
Max. AC Fault Current [A]
65
100
Max. AC Over Current Protection [A]
53
76
Rated AC Voltage
L+N+PE , 220, 230,240;180-280
Rated Output Frequency [Hz]
50, 60 / 44-55, 54-65
Power Factor [cos φ]
0.8leading～0.8lagging
Total Harmonic Distortion [THDi]
< 3%
Efficiency
Model
R6-5K-S3
R6-6K-S3
R6-7K-S3
R6-8K-S3
R6-9K-S3
R6-10K-S3
Max. Efficiency
98.2%
98.2%
98.2%
98.2%
98.2%
98.2%
Euro Efficiency
97.8%
97.8%
97.8%
97.8%
97.8%
97.8%
Protection
Overvoltage Protection
Integrated
DC Insulation Resistance Detection
Integrated
DCI Monitoring
Integrated
GFCI Monitoring
Integrated
Grid Monitoring
Integrated
AC Short Circuit Current Protection
Integrated
AC Grounding Detection
Integrated
DC Surge Protection
Type Ⅱ
AC Surge Protection
Type Ⅲ（type Ⅱ optional）
Overheat Protection
Integrated
Anti-islanding Protection
AFD
AFCI Protection
Optional
Interface
AC Connection
Quick connector
DC Connection
MC4/H4
Display
LED+APP
Communication Port
RS232+RJ45+DRM
Communication
Wi-Fi/Ethernet/4G/PLC (optional)
Load Monitoring
Whole day (optional)
General Data
Topology
Non-isolated
Consumption at Night [W]
<1
Consumption at Standby [W]
<8
Operating Temperature Range
-40℃～+60℃ (>45℃ derating)
Cooling Method
Natural convection
Ambient Humidity
0%～100%
Altitude
4000m (>3000m derating)
Noise [dBA]
<35
Ingress Protection
IP65
Mounting
Wall mounting
Dimensions [H*W*D] [mm]
391*532*202
Weight [kg]
17.3
17.3
18
18
18
18
Warranty [Year]
5（Standard）/10/15/20（Optional）
Applicable Standard
IEC/EN62109-1/2, EN61000-6-1/2/3/4, IEC61683, IEC60068-2, IEC62116, IEC61727, EA/MEA,VDE0126-1-1/A1,
CEI 0-21, VDE-AR-N 4105, AS/NZS4777.2, CQC NB/T 32004, G98/G99, NBR 16149, NBR 16150,
C10/11,RD1669,UNE206006, UNE206007,EN50438
