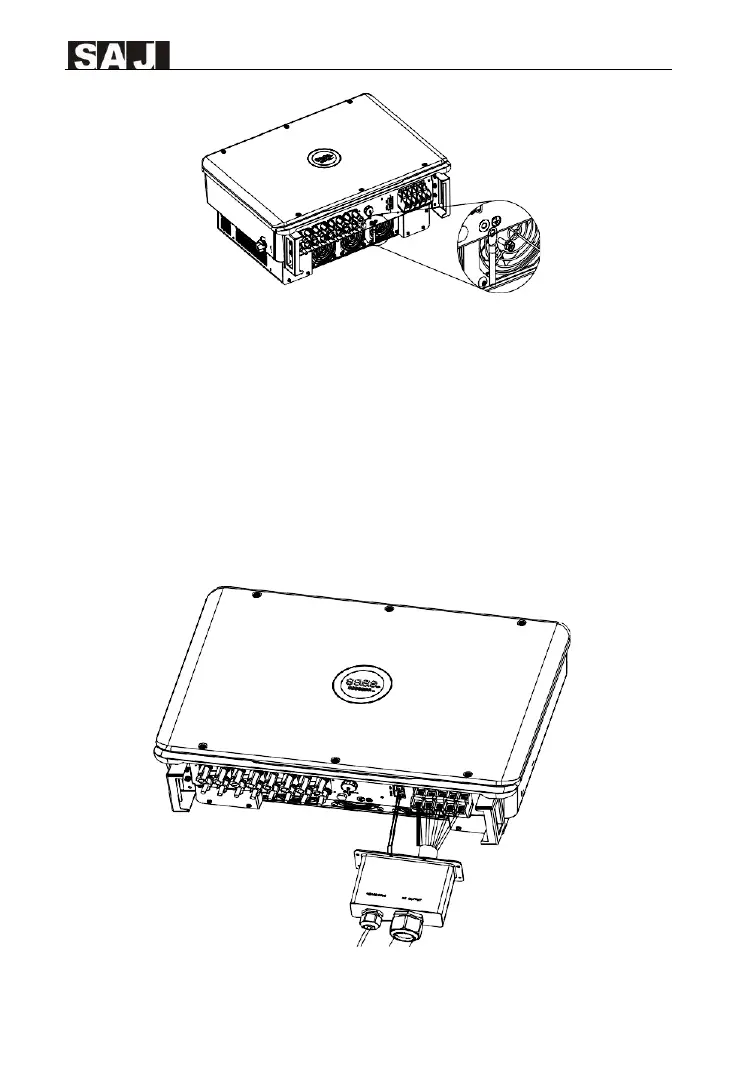

Figure 5.4 Inverter ground protection
2. Screw off the screws at the AC output wire cover and take out the cover.
Penetrate the AC cable of which the insulation layers has been peeled off
through the AC waterproof locking screw hole of the cover. Lock L1 wire, L2
wire, L3 wire, N wire and PE wire tightly as per the marked connection positions
on the interface board.
Figure 5.5 Connect cable
