3. After fixing the cover at the AC output wire terminal with screws, tighten up the
AC waterproof nut.
5.4 DC Side Connection
Cross-sectional area of cables（mm²）
Outside diameter of the cables
（mm）
Scope
Recommended value
4.0-6.0
4.0
4.2~5.3
Table 5.5 Recommended specifications of DC cables

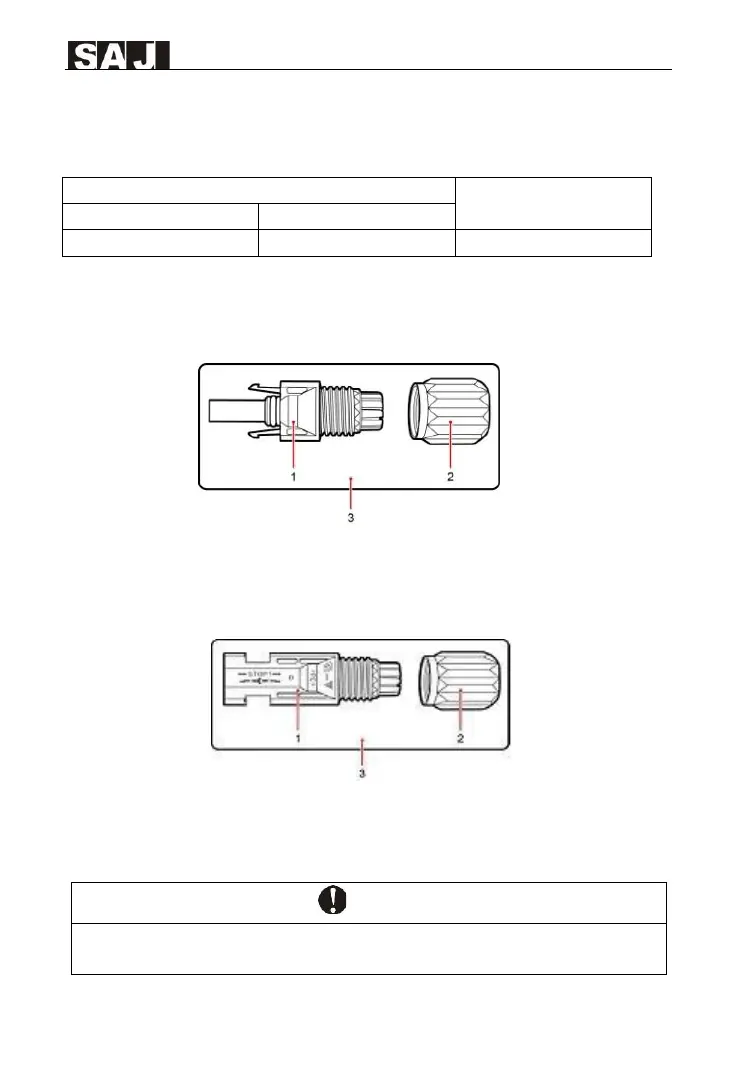

DC connector is made up of the positive connector and the negative connector
Figure 5.6 Positive connector
1. Insulated enclosure 2. Lock screw 3. Positive connector
Figure 5.7 Negative connector
1. Insulated enclosure 2. Lock screw 3. Negative connector
NOTICE
· Please place the connector separately after unpacking in order to avoid confusion for
connection of cables.
