Suntrio Plus Series
-20-
4.4 Mounting Procedure
4.4.1 Mark the Positions of the Drill Holes of the Rear Panel
The position of the drill holes can be determined by using rear panel.
508.5
348
120
400
457

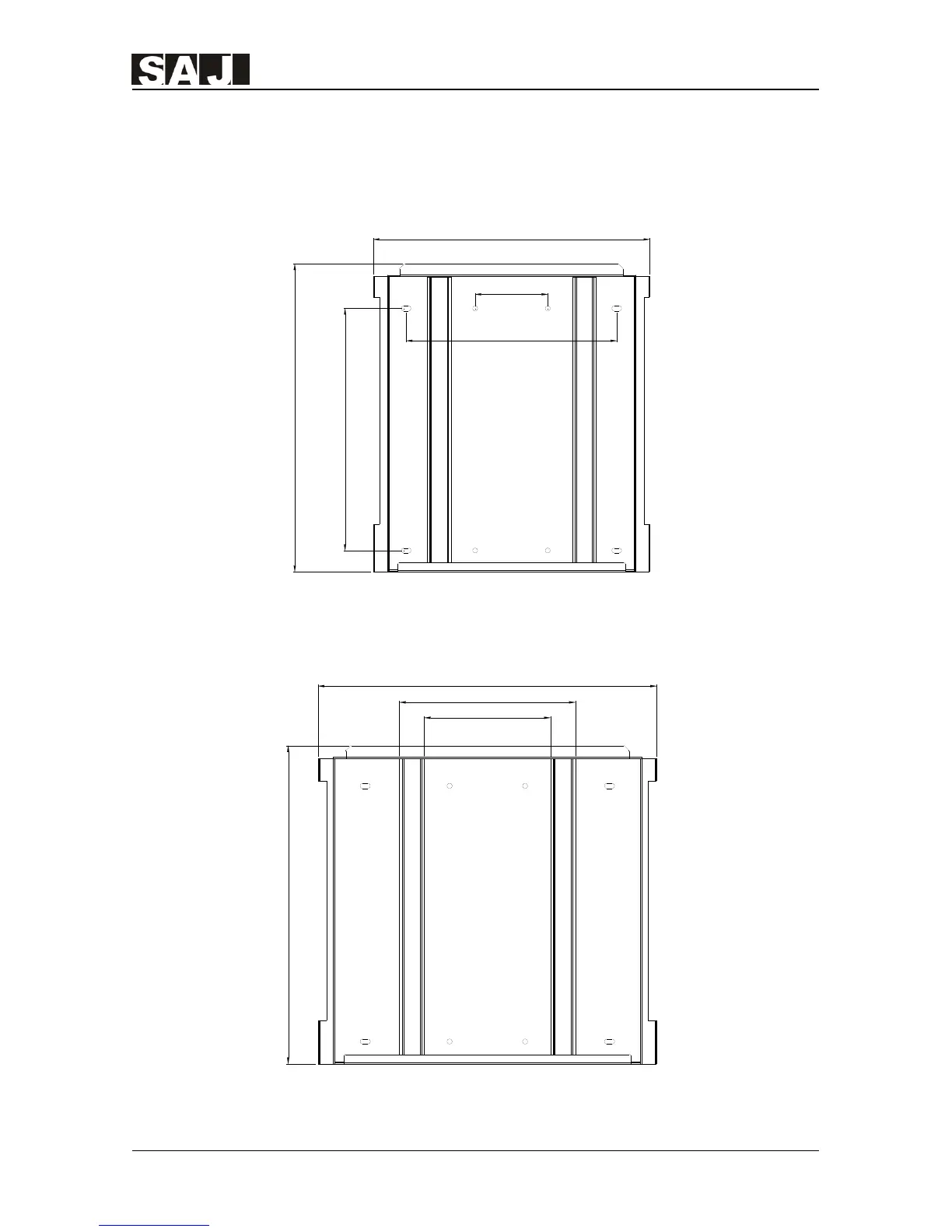

Figure 4.3 Dimensions of Rear Panel Suntrio Plus 12K/15K/17K/20K
538
200.4
279.6
498
Figure 4.4 Dimensions of Rear Panel Suntrio Plus 25K/33K
