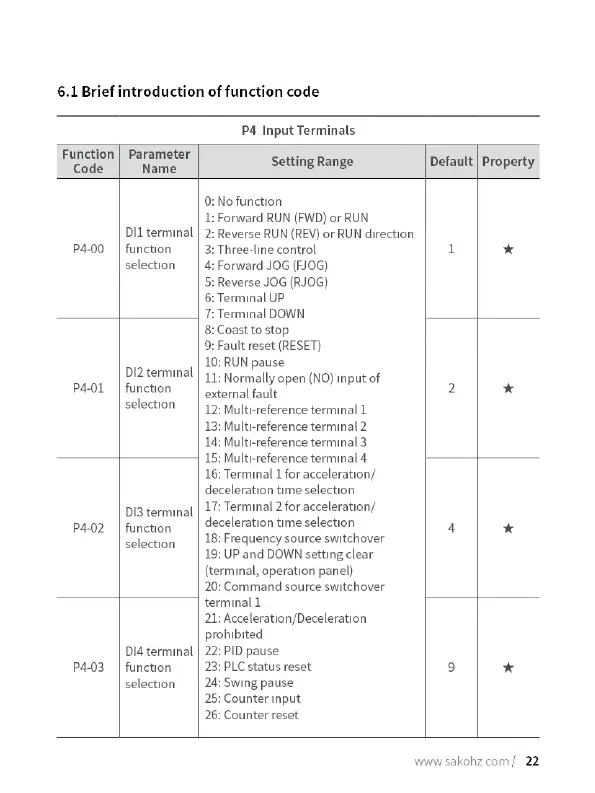

6.1 Brief introduction of function code
P4 Input Terminals
Function
Code
Parameter
Name
Setting Range Default | Property
P4-00
D1 terminal
function
selection
P4-01
DI2 terminal
function
selection
P4-02
DI3 terminal
function
selection
P4-03
DI4 terminal
function
selection
0: No function
1: Forward RUN (FWD) or RUN
2: Reverse RUN (REV) or RUN direction
3: Three-line control
4: Forward JOG (FOG)
5: Reverse JOG (RJOG)
6: Terminal UP
7: Terminal DOWN
8: Coast to stop
9: Fault reset (RESET)
10: RUN pause
11: Normally open (NO) input of
external fault
12: Multi-reference terminal 1
13: Multi-reference terminal 2
14: Multi-reference terminal 3
15: Multi-reference terminal 4
16: Terminal 1 for acceleration/
deceleration time selection
17: Terminal 2 for acceleration/
deceleration time selection
18: Frequency source switchover
19: UP and DOWN setting clear
(terminal, operation panel)
20: Command source switchover
terminal 1
21: Acceleration/Deceleration
prohibited
22: PID pause
23: PLC status reset
24: Swing pause
25: Counter input
26: Counter reset
