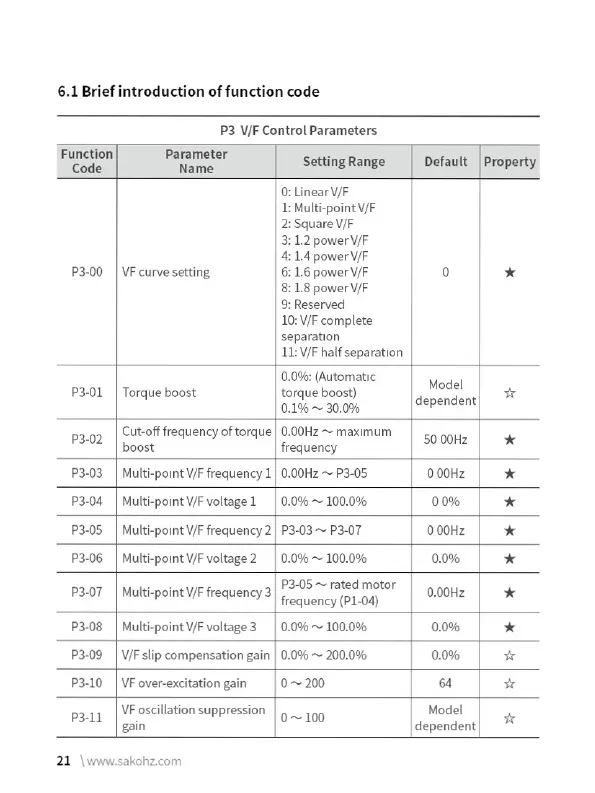

6.1 Brief introduction of function code
P3 V/F Control Parameters
Function Parameter '
Gane Nowe Setting Range Default | Property
0: Linear V/F
1: Multi-point V/F
2: Square V/F
3: 1.2 power V/F
4: 1.4 power V/F
P3-00 | VF curve setting 6: 1.6 power V/F 0 *
8: 1.8 power V/F
9: Reserved
10: V/F complete
separation
11: V/F half separation
0.0%: (Automatic Model
P3-01 | Torque boost torque boost) dependent Ww
0.1% ~ 30.0% P
P3-02 Cut-off frequency of torque| 0.00Hz ~ maximum 50 OOHz es
boost frequency
P3-03 | Multi-point V/F frequency 1) 0.00Hz ~ P3-05 0 0OHz *
P3-04 | Multi-point V/F voltagel | 0.0% ~ 100.0% 00% *
P3-05 | Multi-point V/F frequency 2) P3-03 ~ P3-07 0 00Hz *
P3-06 | Multi-point V/F voltage 2 0.0% ~ 100.0% 0.0% *
i P3-05 ~ rated motor
P3-07 | Multi-point V/F frequency 3 frequency (P1-04) 0.00Hz *
P3-08 | Multi-point V/F voltage3 | 0.0% ~ 100.0% 0.0% *
P3-09 | V/F slip compensation gain | 0.0% ~ 200.0% 0.0% ww
P3-10 | VF over-excitation gain 0~ 200 64 Ww
P3-11 VF oscillation suppression 0~100 Model st
gain dependent
