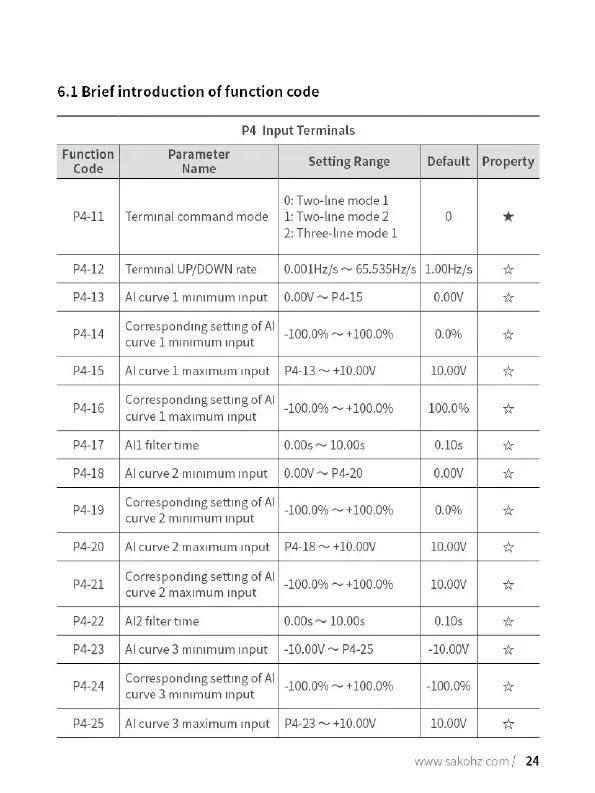

6.1 Brief introduction of function code
P4 Input Terminals
Function Parameter A
Code Name Setting Range Default | Property
0: Two-line mode 1
P4-11 | Terminal command mode | 1: Two-line mode 2 0 *
2: Three-line mode 1
P4-12 | Terminal UP/DOWN rate 0.001Hz/s ~ 65.535Hz/s | 1.00Hz/s bxe
P4-13. | Alcurve1l minimum input | 0.00V ~ P4-15 0.00V a
pa-14 | Corresponding setting of All 149 94 ~+100.0% | 0.0% | +
curve 1 minimum input
P4-15 | Alcurve 1 maximum input | P4-13 ~ +10.00V 10.00V *
pag | Corresponding setting ofAl! 149g ~+100.0% | 100.0%] x
curve 1 maximum input
P4-17 | All filter time 0.00s ~ 10.00s 0.10s w
P4-18 | Alcurve2 minimum input | 0.00V ~ P4-20 0.00V Ww
pa-1g | Corresponding setting of All 149 94 ~+100.0% | 0.0% | +
curve 2 minimum input
P4-20 | Alcurve2 maximum input | P4-18 ~ +10.00V 10.00V 4
p4-21 | Corresponding setting of All 149 9 ~ +100.0% 10.0} +
curve 2 maximum input
P4-22 | Al2 filter time 0.00s ~ 10.00s 0.10s w
P4-23 | Alcurve3 minimum input | -10.00V ~ P4-25 -10.00V Ww
p4-24_ | Corresponding setting of Al! 149 94 ~+100.0% |-100.0%| +
curve 3 minimum input
P4-25 | Alcurve 3 maximum input | P4-23 ~ +10,00V 10.00V Ww
