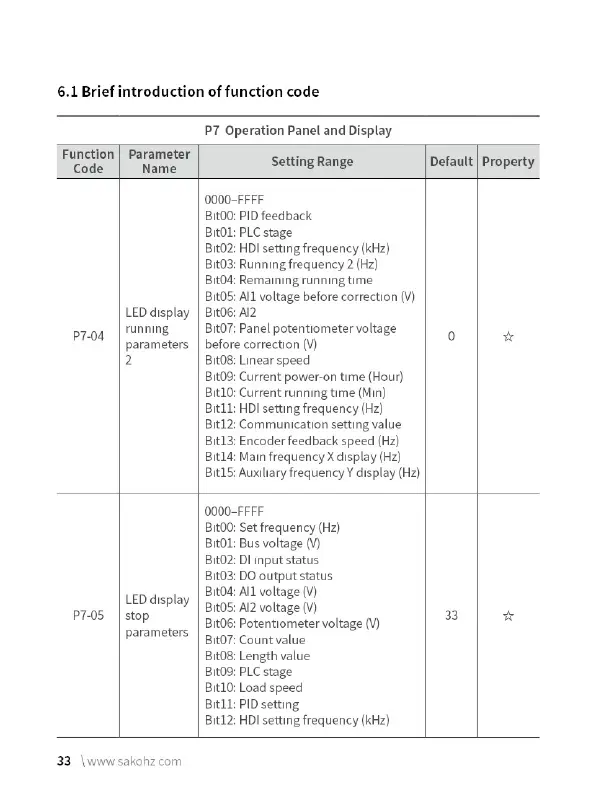

6.1 Brief introduction of function code
P7 Operation Panel and Display
Function | Parameter
Code Name
Setting Range Default Property
LED display
running
parameters
2
P7-04
0000-FFFF
Bit00: PID feedback
BitO1: PLC stage
Bit02: HDI setting frequency (kHz)
Bit03: Running frequency 2 (Hz)
Bit04: Remaining running time
Bit05: All voltage before correction (V)
Bit06: Al2
Bit07: Panel potentiometer voltage
before correction (V)
Bit08: Linear speed
Bit09: Current power-on time (Hour)
Bit10: Current running time (Min)
Bit11: HDI setting frequency (Hz)
Bit12: Communication setting value
Bit13: Encoder feedback speed (Hz)
Bit14: Main frequency X display (Hz)
Bit15: Auxiliary frequency Y display (Hz)
LED display
P7-05 | stop
parameters
0000-FFFF
Bit00: Set frequency (Hz)
Bit01: Bus voltage (V)
Bit02: DI input status
Bit03: DO output status
Bit04: All voltage (V)
Bit05: Al2 voltage (V)
Bit06: Potentiometer voltage (V)
Bit07: Count value
Bit08: Length value
Bit09: PLC stage
Bit10: Load speed
Bit11: PID setting
Bit12: HDI setting frequency (kHz)
