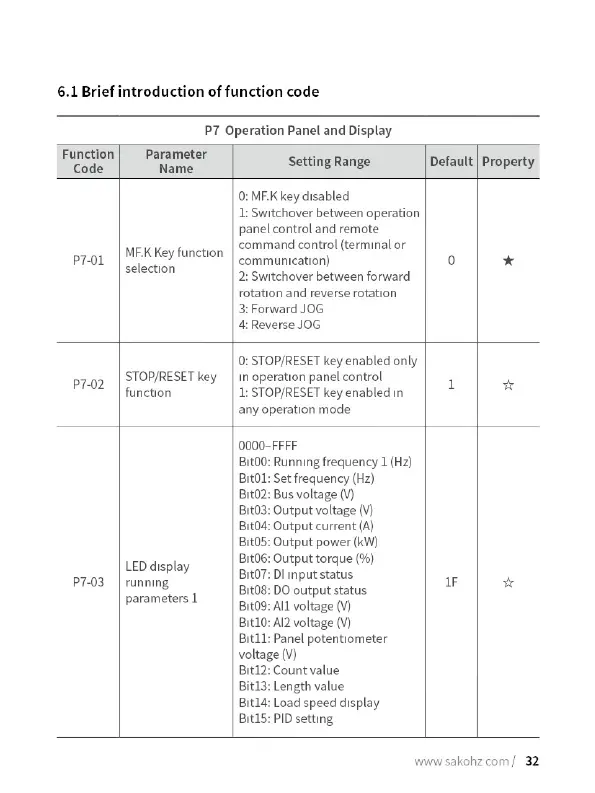

6.1 Brief introduction of function code
P7 Operation Panel and Display
Function
Code
Parameter
Name
Setting Range Default Property
P7-01
MF.K Key function
selection
0: MF.K key disabled
1: Switchover between operation
panel control and remote
command control (terminal or
communication)
2: Switchover between forward
rotation and reverse rotation
3: Forward JOG
4: Reverse JOG
P7-02
STOP/RESET key
function
0: STOP/RESET key enabled only
In operation panel control
1: STOP/RESET key enabled in
any operation mode
P7-03
LED display
running
parameters 1
0000-FFFF
Bit00: Running frequency 1 (Hz)
Bit01: Set frequency (Hz)
Bit02: Bus voltage (V)
Bit03: Output voltage (V)
Bit04: Output current (A)
Bit05: Output power (kW)
Bit06: Output torque (%)
Bit07: DI input status
Bit08: DO output status
Bit09: All voltage (V)
Bit10: Al2 voltage (V)
Bit11: Panel potentiometer
voltage (V)
Bit12: Count value
Bit13: Length value
Bit14: Load speed display
Bit15: PID setting
1F
