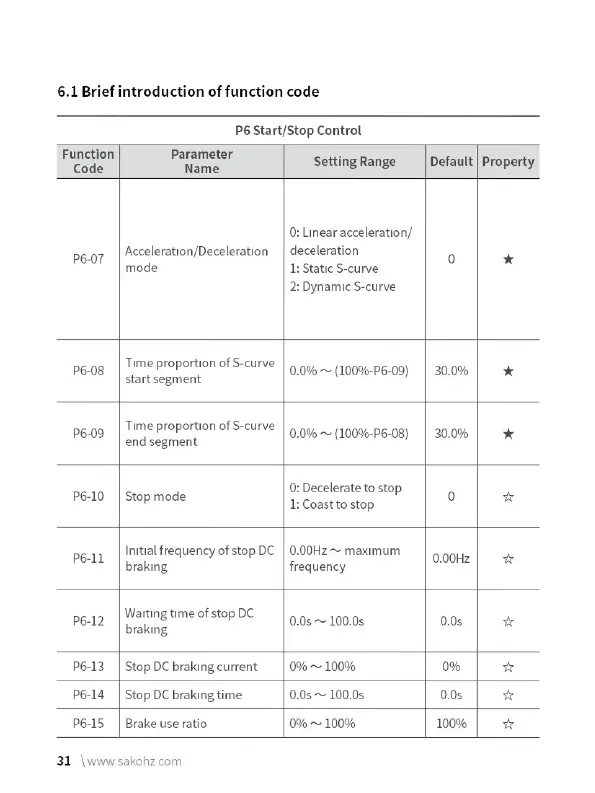

Sako SKI780 - Page 37

6.1 Brief introduction of function code
P6 Start/Stop Control
Function Parameter '
Code Nana Setting Range Default | Property
0: Linear acceleration/
P6-07 Acceleration/Deceleration | deceleration 0 $e
mode 1: Static S-curve
2: Dynamic S-curve
peg | [ime proportion of S-curve | 9 99, (100%-P6-09) | 30.0%| *
start segment
p69 | [me proportion of S-curve | 4 go, _ (19994-6-08) | 30.0% |
end segment
0: Decelerate to stop
P6-10 | Stop mode 1: Coast to stop 0 Ww
P6-11 Initial frequency of stop DC | 0.00Hz ~~ maximum 0.00Hz se
braking frequency
peu | Matingtmectsiep BS = — | iiewd00lts 00s | x
braking
P6-13_ | Stop DC braking current 0% ~ 100% 0% Ww
P6-14 | Stop DC braking time 0.0s ~ 100.0s 0.0s w
P6-15 | Brake use ratio 0% ~ 100% 100% w
31 \wwwsakohzcom
