4. CARE OF THE INSTRUMENT
Page 24

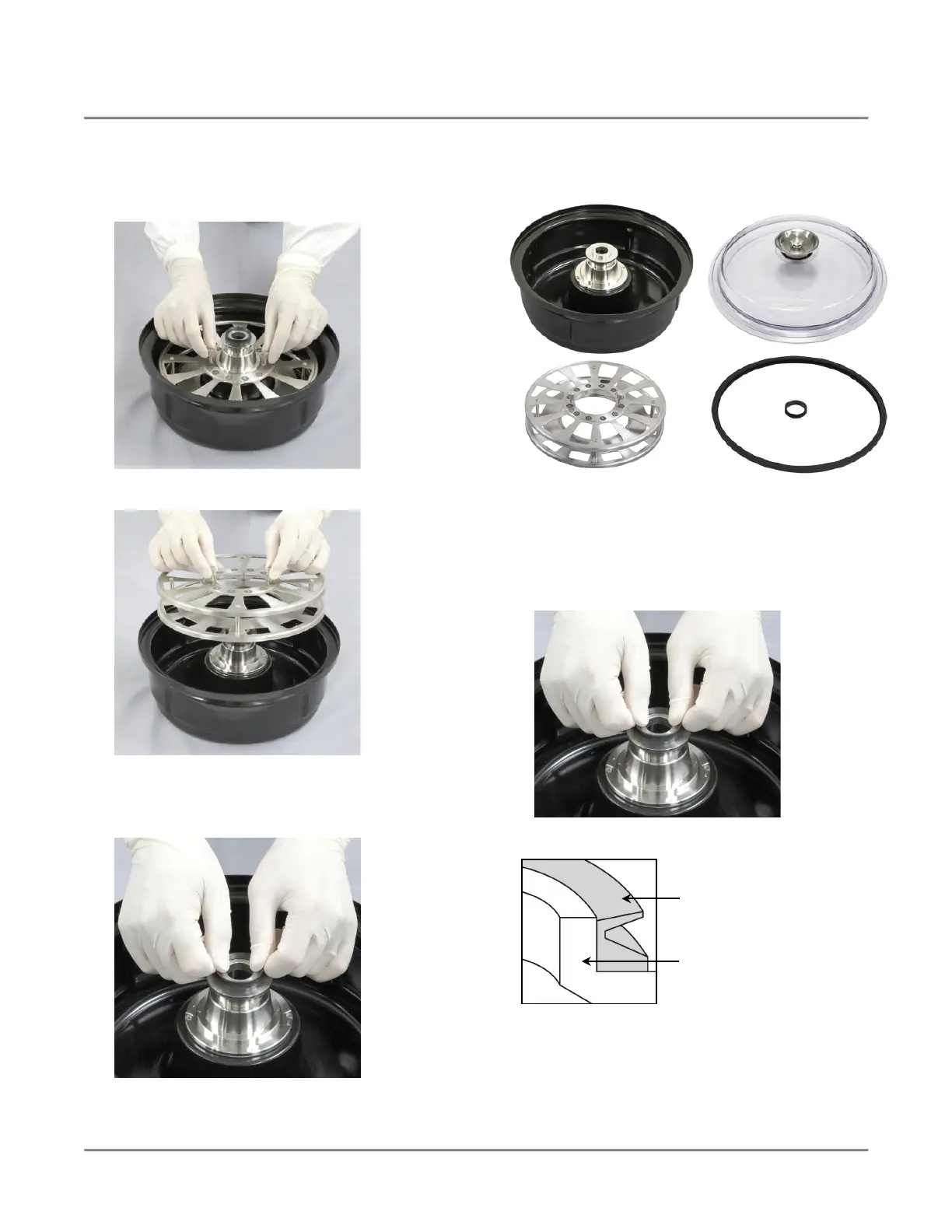

Disassembly of the Guard Bowl
1. Loosen two screws that hold the rotor unit in place.
Remove the rotor unit (Figure 4C and 4D).
Figure 4C
Figure 4D
2. Remove the V-shape gasket (Figure 4E).
Figure 4E
The guard bowl unit has been disassembled as shown
below (Figure 4F).
Figure 4F
Assembly of the Guard Bowl Unit
1. Install the V-shape gasket (Figure 4G and 4H).
Figure 4G
Figure 4H
CAUTION: Install the V-shape gasket on the bowl
shaft housing with the projecting part of the gasket
facing upward. Failure to do so may weaken the seal
capacity.
To Next Page
