Salicru SLC Cube3+ - Legend Corresponding to the Equipment Views

26
(X32)
(X50)
(X31)
(X36
i
)
(X36
o
)
(X36
o
)
(X36
i
)
(X31)
(X50)
(X32)
(1): (a) (b) (c) (d) (e)
(2) (3)
c b a
d e 1 2 3

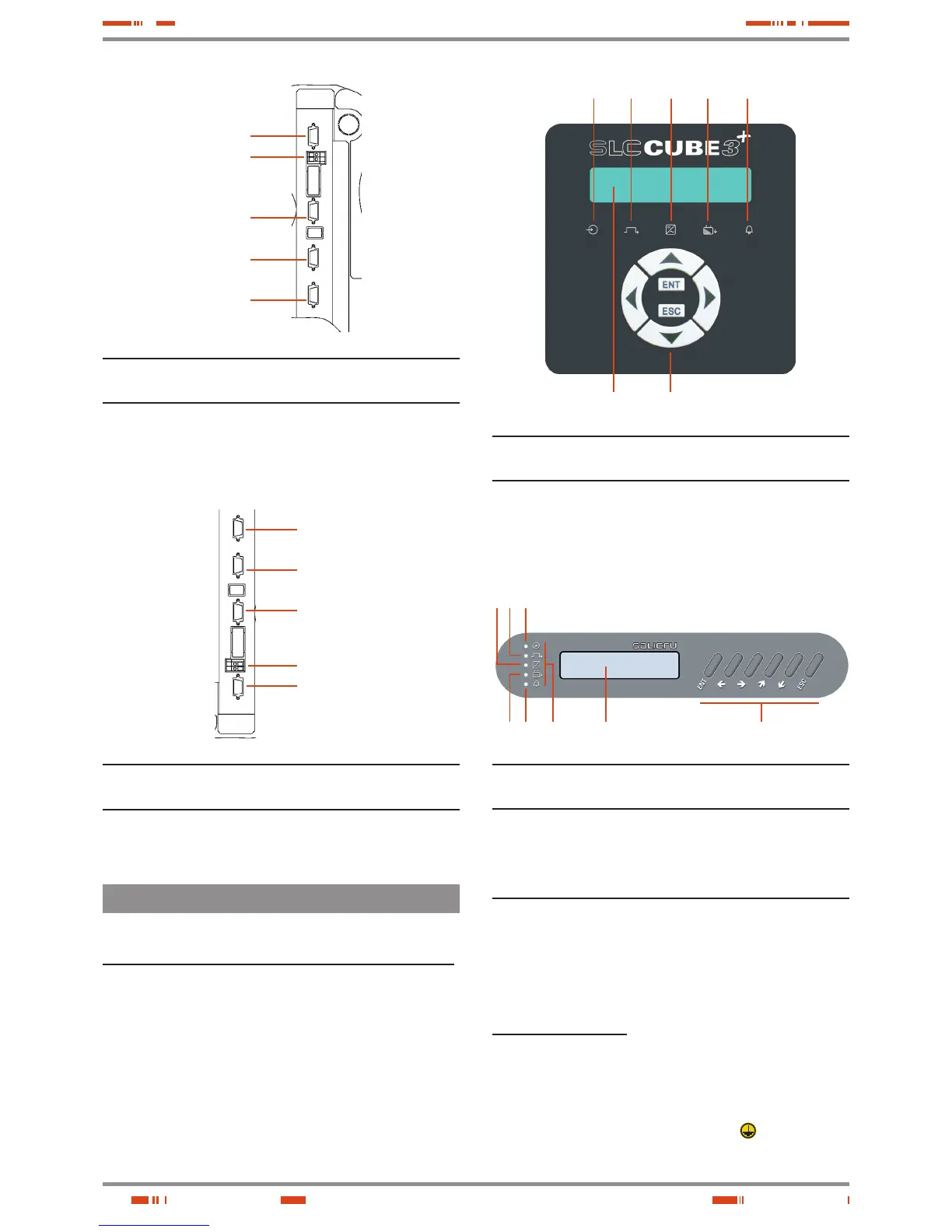

Fig. 21. Connection of communications for models up to 60 kVA
(LV) / 120 kVA (HV).
Fig. 22. Connection of communications for models higher than 60
kVA (LV) / 120 kVA (HV).
Fig. 23. Control panel for equipments up to 60 kVA (LV) / 120 kVA
(HV).
Fig. 24. Control panel for equipments higher than 60 kVA (LV) /
120 kVA (HV).
4.1.2 Legend corresponding to the equipment views.
Protection and manoeuvring parts (Q*) in the UPS cabinet:
(Q1a) Input circuit breaker or switch according to the equipment
power rate, two or three poles respectively depending on
the mains typology.
(Q2) Output switch.
(Q3) Battery fuse holder switch with 3 fuses in models up to 20
kVA (LV) / 40 kVA (HV) or switch for B1 versions and higher
power rates models.
(Q4a) Static bypass switch, two or three poles depending on
the mains typology (-B version only).
(Q5) Manual bypass switch.
Protection and manoeuvring parts(Q*) in the battery cabinet:
(Q8) Battery fuse holder switch of 3 fuses, for models up to 60
kVA (LV) / 120 kVA (HV).
Battery switch, in models higher than 60 kVA (LV) / 120 kVA
(HV). Also there are 3 fuses (F8) with no switch function,
located inside the cabinet.
Connection parts (X*):
(X1) Terminal of input phase R.
(X2) Terminal of input phase S.
(X3) Terminal of input phase T.
(X4) Terminal of input neutral N.
(X5) Terminal (copper bar) of main earth ( ).
(X6) Terminal of output phase U.
