Salus RT300RF User Manual

RT300RF INSTRUCTION MANUAL
7
RECEIVER WIRING TERMINALS
Terminal Identifier Description
1 NO Normally Open [N/O]
2 COM Linked Live feed (230V AC heating applications only)
3 L Live feed (230V AC)
4 N Neutral

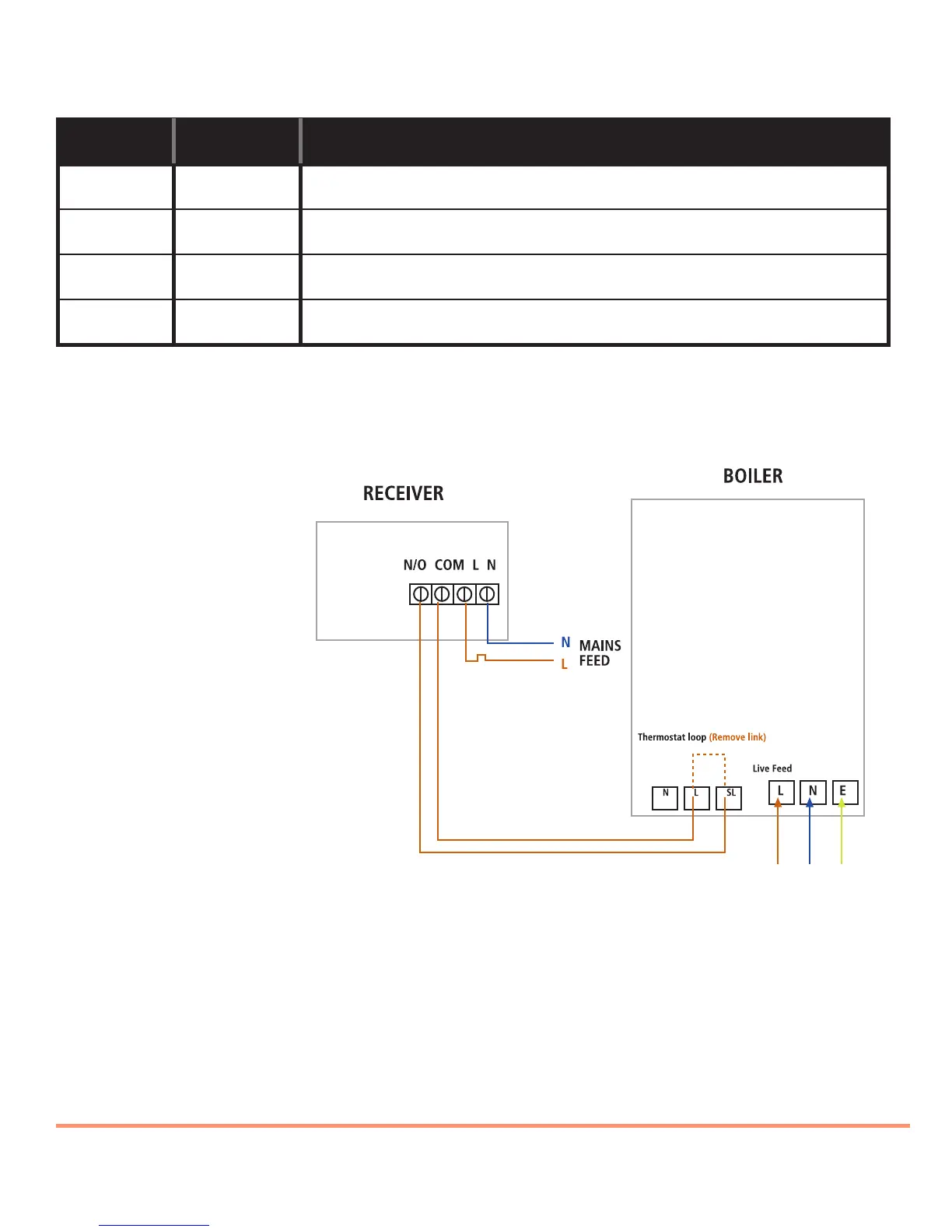

TYPICAL WIRING INSTALLATIONS
a.230V AC Installation
Notes:
• Receiver unit should have a permanent 230V AC main supply
• Confirm that the Boiler has an external thermostat loop and
is configured for 230V switching
• If the boiler has two terminals for the thermostat, remove the
link from the boiler
Salus RT300RF Manual 002_89 22/07/2013 09:19 Page 7

Salus RT300RF Specifications

General

Frequency	868 MHz
Power Supply	2 x AA batteries
Display	LCD
Control Mode	On/Off
Programmable	Yes
Frost Protection	Yes
Type	Wireless
Mounting	Wall-mounted
Communication	Wireless
Range	30m
Compatibility	Boilers
Weight	150g
Temperature Range	5°C to 35°C
