4. Before you start (rst power up)

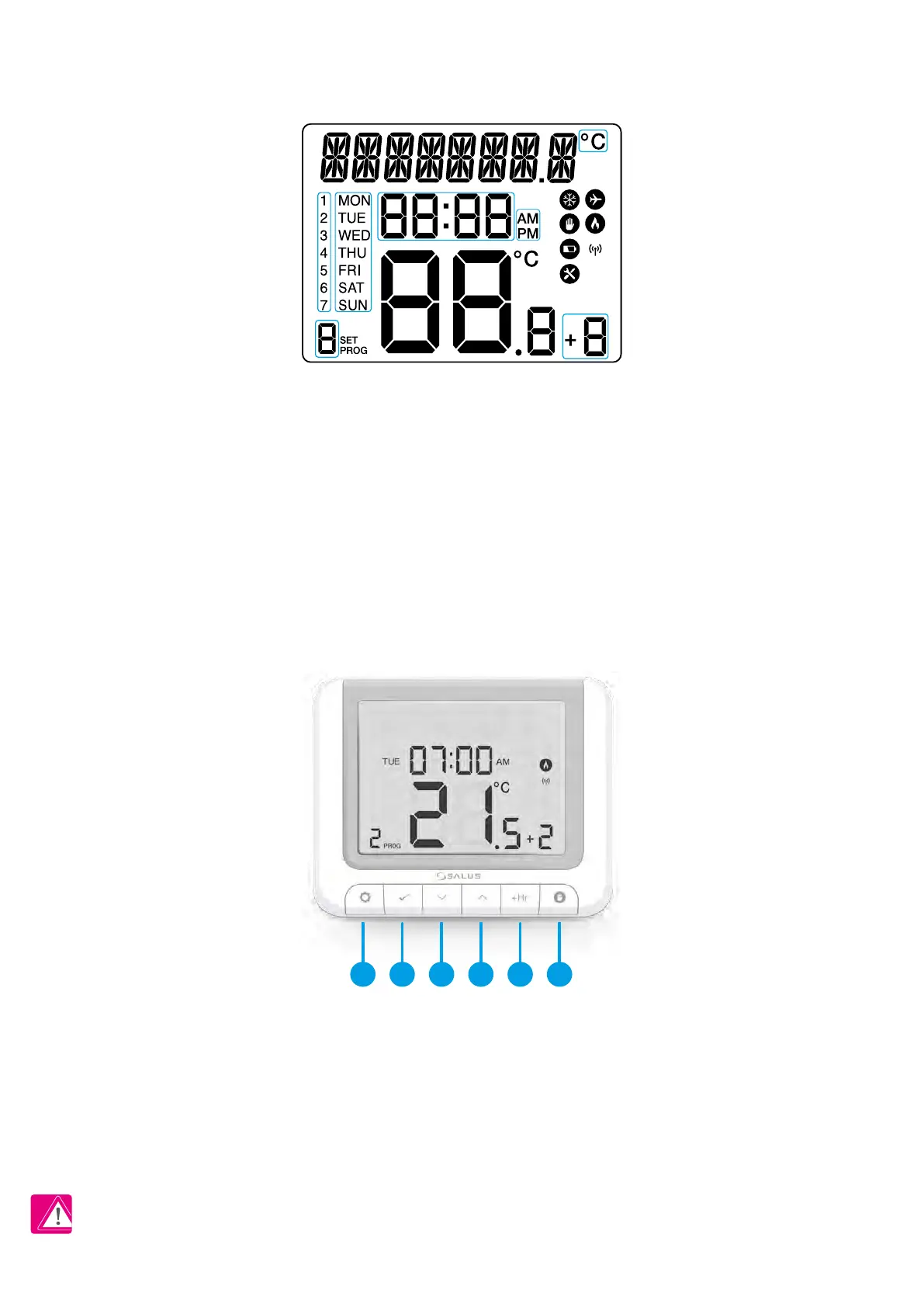

4.2 Button description
4.1 LCD icon description
1. Text Bar
2. Temperature Unit
3A. Day of the week (numeric)
3B. Day of the week (alphabetic)
4. Clock
5. AM / PM
6. Cooling Mode On
7. Holiday Mode On
8. Manual Mode On
9. Heating Mode On
10. Low battery status
11. Wireless connection with the receiver
12. Service Mode On
13. Temperature measured / set
14. Program number
15. Settings
16. Program indicator
17. Boost function
PLEASE NOTE! The LCD screen can be activated by using any button.
6
2
7
9
11
17
3A
3B
13
5
4
14
15
16
1
8
10
12
1 2 3 4 5 6
1. MENU / RETURN - enter the menu options,
press and hold for 3 sec to return to main screen
or to deactivate Boost or Manual modes.
2. SELECT - conrm changes and enter menus.
3. DOWN - decrease the temperature and
move through the menus.
4. UP - increase the temperature and move
through menus.
5. BOOST - activate Boost Mode.
6. MANUAL - press once to activate / press and
hold for 3 sec to deactivate Manual Mode.

Salus RT520RF Specifications

General

Display	LCD
Temperature Range	5°C to 35°C
Power Supply	2 x AA Batteries
Frequency	868 MHz
Frost Protection	Yes
Mounting	Wall-mounted
Wireless	Yes
Voltage	3 V DC
Switching Current	3 A
Temperature Control Accuracy	±0.5°C
Programmable	Yes, 5/2 day or 7 day programming
Operating Modes	Manual, Holiday
Communication	RF Communication
Battery Life	2 years
Dimensions	120 mm
