THB23030 PUMP (optional)T30NC230
BOILER
4 wires x 0.75 mm
4 wires x 0.75 mm
Power Supply
230V AC
Actuators wires
2 x 0.75 mm
Pump control wires
2 x 1 mm
Boiler control wires
2 x 1 mm
KL08NSB KL04NSB (optional)
SLAVEMASTER
e.g. VS30W/VS30B VS35W/VS35B VS35W/VS35B

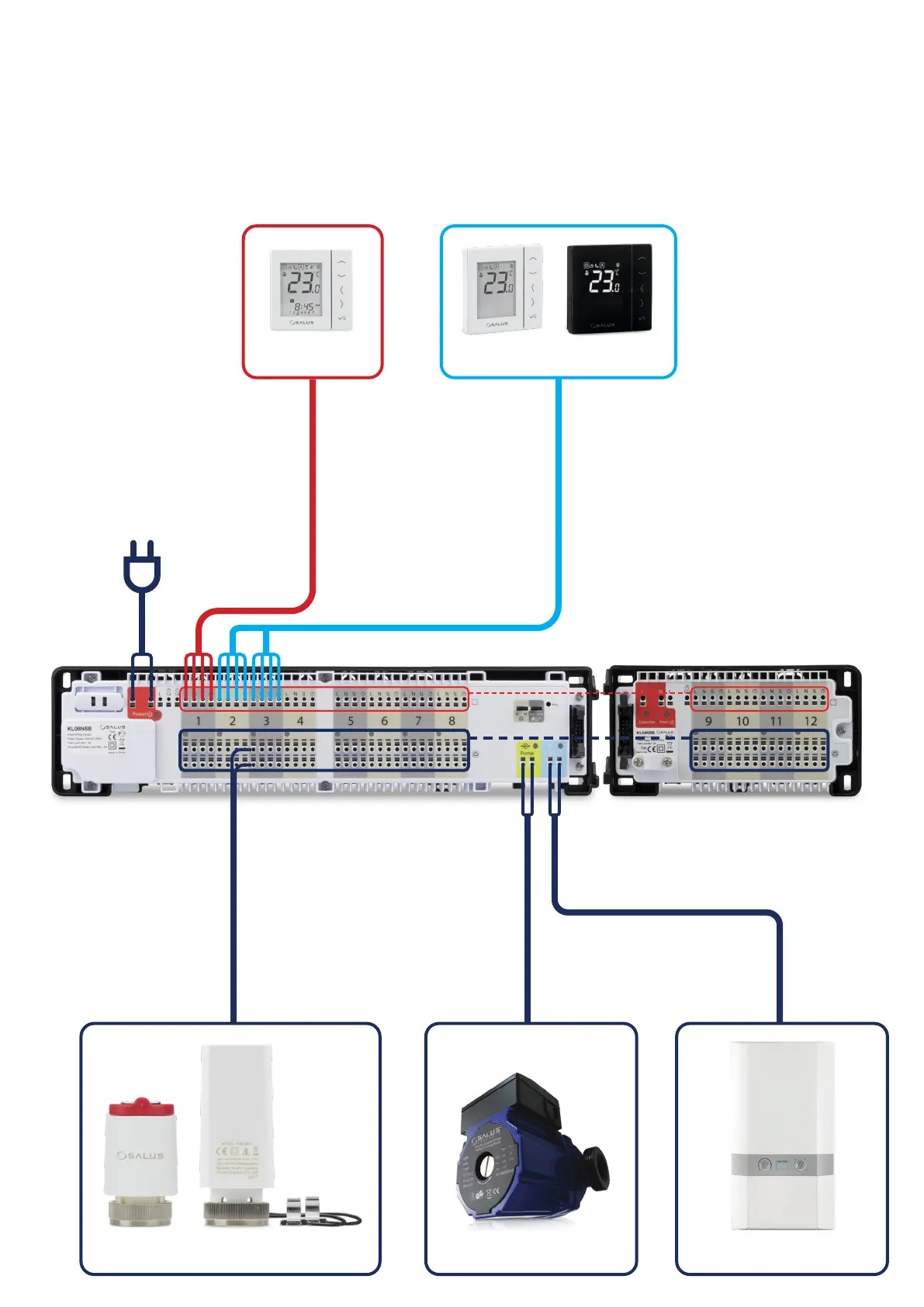

I A - 4 wire installation with KL08NSB wiring centre
VS35W/VS35B works mainly as a SLAVE thermostat (group thermostat) which means that it can be controlled by a MASTER thermostat e.g. VS30W/
VS30B. MASTER thermostat controls SLAVE thermostat only when SLAVE thermostat is in AUTO mode. Comfort (SUN) and economy (MOON) setpoint
temperatures are set individually on each thermostat but switching between those temperature is based on time schedule taken from VS30W/VS30B
thermostat which works like a group controller. Functions such as: setpoint temperature change or frost protection mode are not managed by MASTER
thermostat.
