Salus VS35W Full User Manual

12

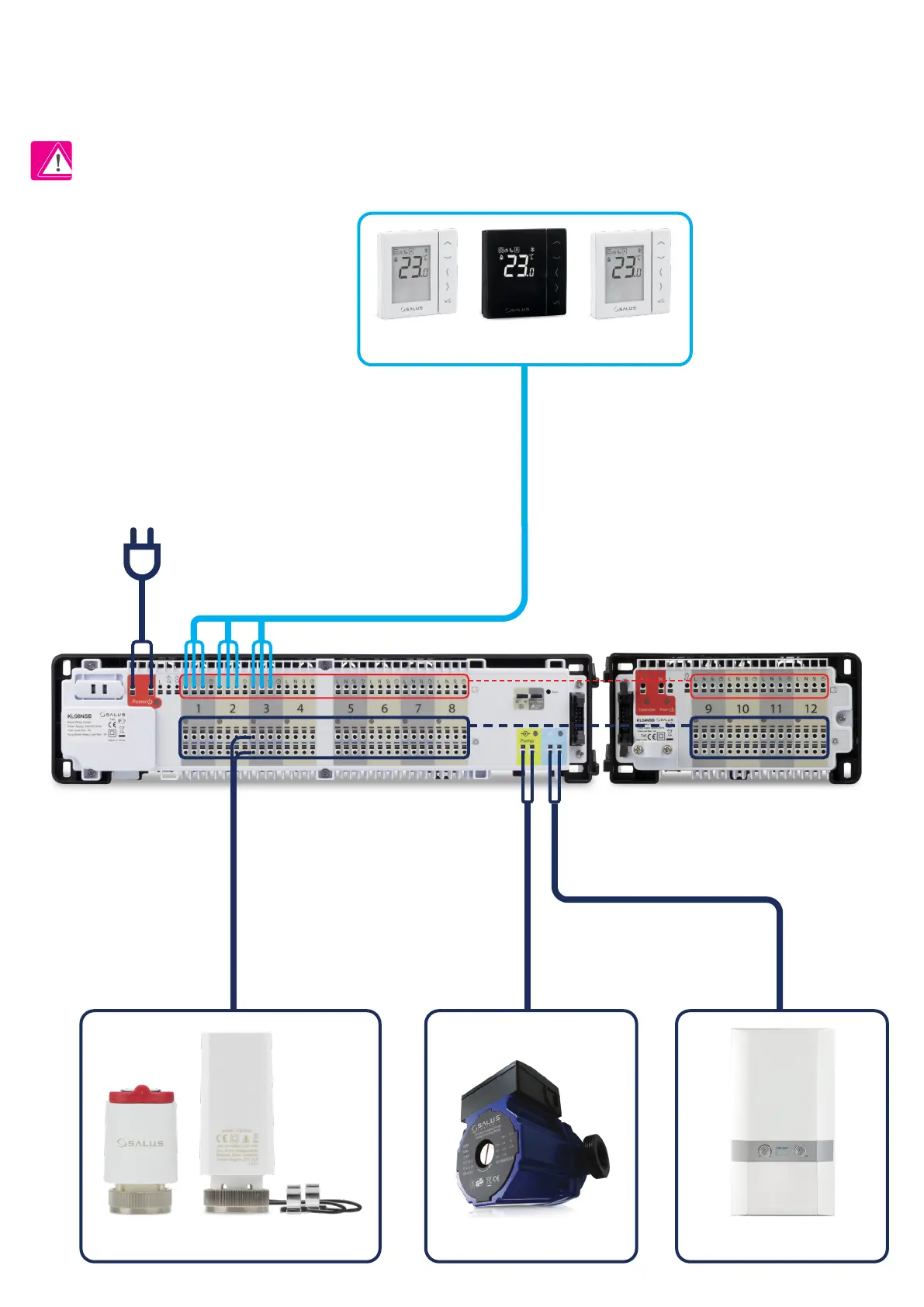

II - 3 wire installation with KL08NSB wiring centre
3 wire installation with KL08NSB wiring center. Description of the operation rule:
- VS35W/VS35B thermostat’s functionality is limited because of 3 wire installation. NSB function is disabled and VS35W/VS35B thermostat doesn’t work
as a SLAVE group thermostat - no eect from potential MASTER thermostat, which means that it can be just a simple pump, boiler or actuator controller).
PLEASE NOTE!
The same operating rules apply to wiring center KL06.
THB23030 PUMP (optional)T30NC230 BOILER
3 wires x 0.75 mm
Power Supply
230V AC
Actuators wires
2 x 0.75 mm
Pump control wires
2 x 1 mm
Boiler control wires
2 x 1 mm
KL08NSB KL04NSB (optional)
VS35W/VS35B VS35W/VS35BVS35W/VS35B
