E N G L I S H

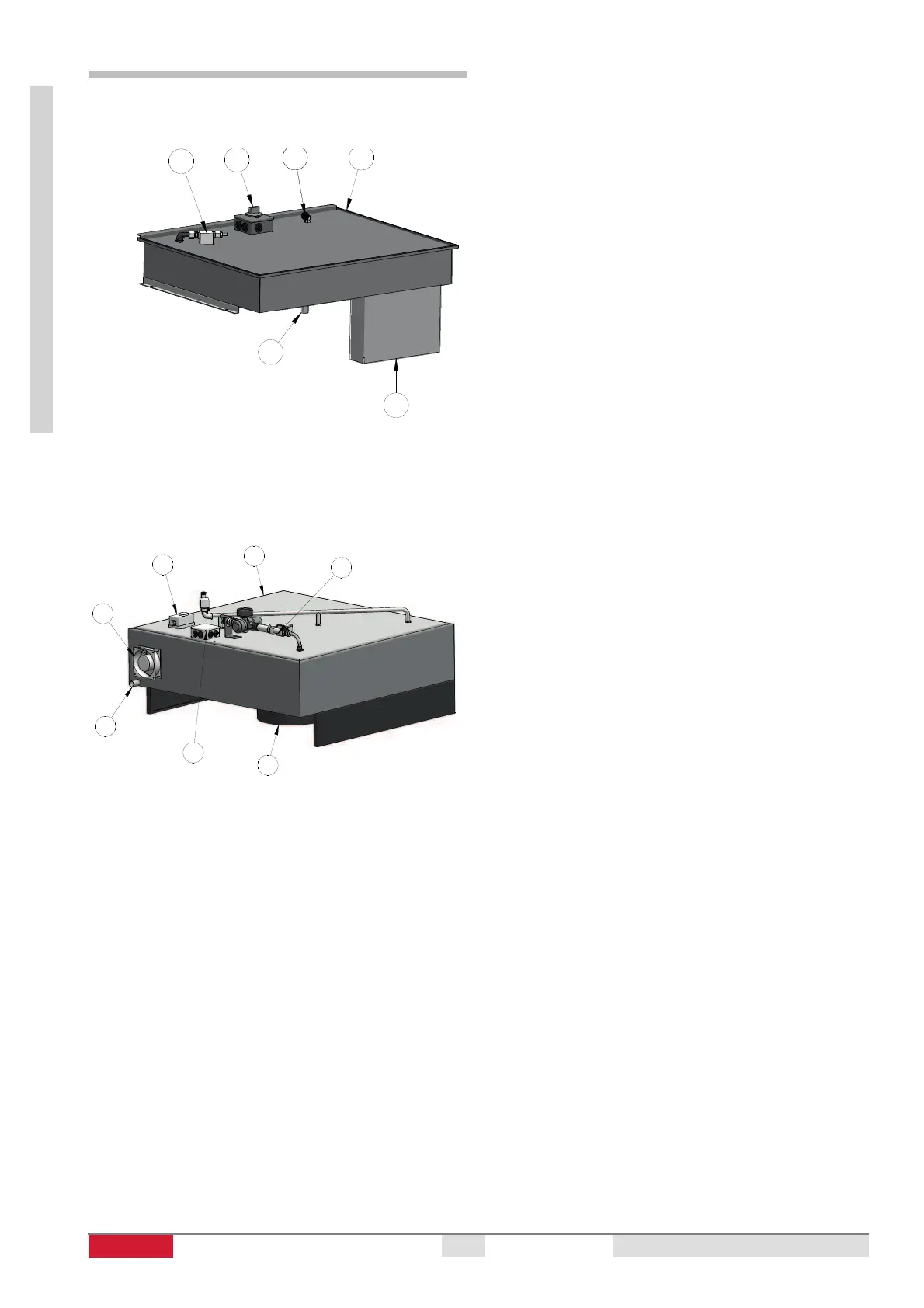

14.3. Steam condenser branchs
af208f03.dft
2
3
1
5
6
3
4
CV-E
1.- Solenoid valve.
2.- Branching box.
3.- Thermostat probe.
4.- Condenser.
5.- Drain condenser.
6.- Oven steam outlet pipe - Condenser steam inlet.
cj015f04.dft
1
2
3
4
5
6
7
CV-NXD
1.- Solenoid valve.
2.- Branching box.
3.- Thermostat probe.
4.- Condenser.
5.- Fan.
6.- Drain condenser.
7.- Oven steam outlet pipe - Condenser steam inlet.
The electrical power input and the water input to the conden-
ser are both through the oven.
